QSC CXD Series User Manual

2
EN EN
TD-000350-00-E

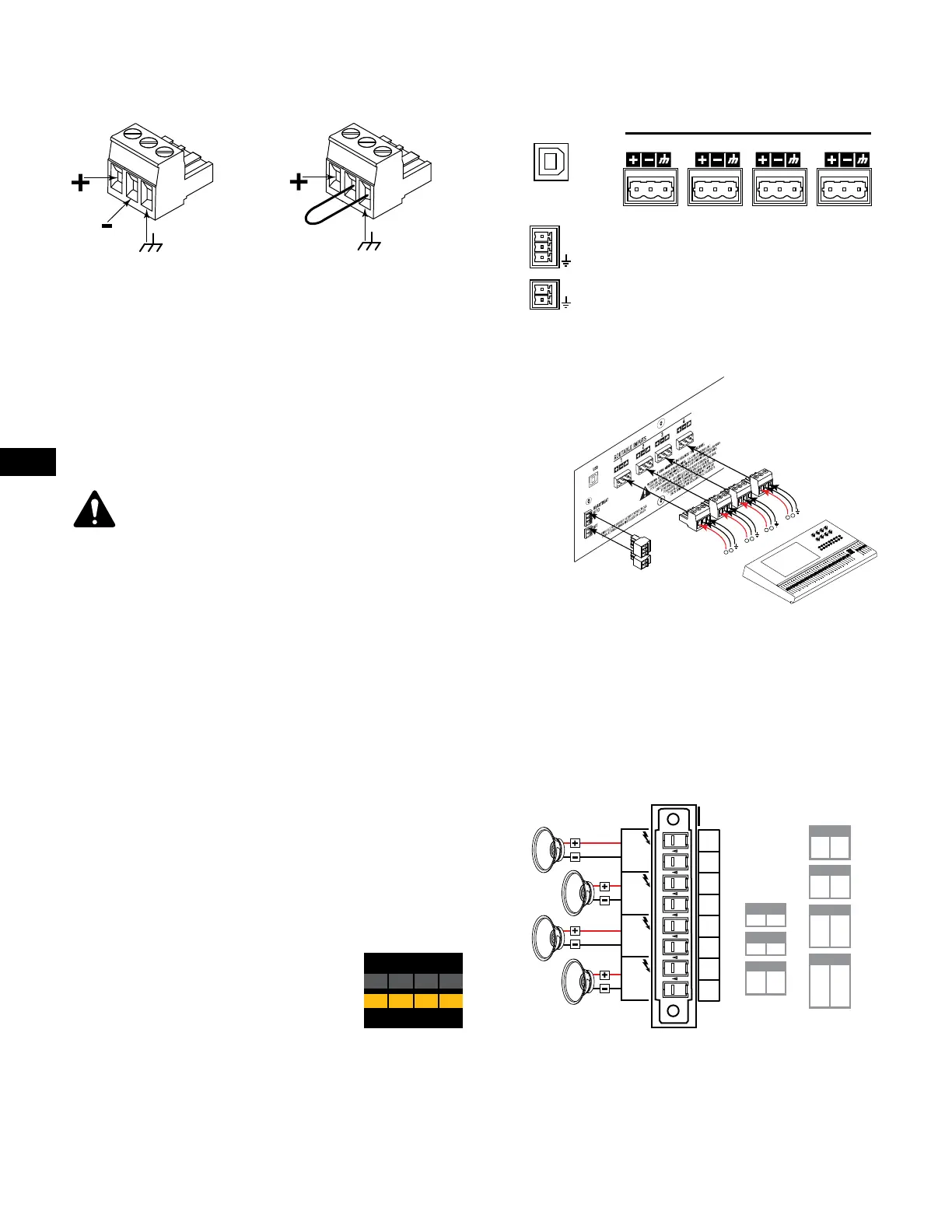

Inputs
— Figure 4 —
HEARTBEAT
GPO
GPI
USB
ROUTABLE INPUTS
21 43
— Figure 2 —
Balanced
— Figure 3 —
Unbalanced
1. Make sure your audio source devices are turned off.
2. Wire the mic- or line-level audio sources to up to four Euro-style connectors (supplied).
You may use either balanced (Figure 2) or unbalanced connections (Figure 3).
NOTE: The CXD Series inputs are routable through a 4×4 matrix mixer.
Make sure that the connections you make here match the configuration of
the amplifier.
3. Plug the connectors into the appropriate receptacles (ROUTABLE INPUTS 1, 2, 3, 4)
Figure 4 and Figure 5.
Outputs
The CXD amplifiers have four configurable outputs. You can set power and adjust the DSP for each output and combine them in various ways
(bridged and parallel). When the output configuration of the amplifier changes, the output terminals, controlled by relays, change accordingly. Use the
diagrams shown in Figure 6 thru Figure 8 as a reference for wiring the loudspeakers.
Separate Channels (A B C D)
— Figure 6 —
A
8.0
625
625
B
8.0
625
625
C
8.0
625
625
D
8.0
625
625
CH AB
T1+
T3+
T2-
T4-
CH CD
T5+
T7+
T6-
T8-
CH ABC
T1
+
T3+
T5+
T2-
T4-
T6-
CH ABCD
T1
+
T3+
T5+
T7+
T2-
T4-
T6-
T8-
CH AB+CD
T1
+
T3+
T5-
T7-
CH C+D
T5+
T7-
CH A+B
T1+ T3-
BRIDGED
OUTPUTS TO SPEAKERS
CH A
CH D
CH C
CH B
+
+
+
+
-
-
-
-
T1
T4
T3
T2
T5
T8
T7
T6
SETTINGS CAN BE
CONFIGURED FOR
70V, 100V AND
200V DIRECT
OUTPUT.
PARALLEL CHANNEL
COMBINING APPLICATIONS
For four separate loudspeakers
• T1+/T2- (Loudspeaker 1)
• T3+/T4- (Loudspeaker 2)
• T5+/T6- (Loudspeaker 3)
• T7+/T8- (Loudspeaker 4)
— Figure 5 —
+
-
+
-
+
-
+
-
