Bridged (A+B) and Separate (C D ) Channels
— Figure 7 —
8.0
1250
1250
A+B
8.0
625
625
C
8.0
625
625
D
8.0
1250
1250
A+B
8.0
1250
1250
C+D
CH AB
T1+
T3+
T2-
T4-
CH CD
T5+
T7+
T6-
T8-
CH ABC
T1
+
T3+
T5+
T2-
T4-
T6-
CH ABCD
T1
+
T3+
T5+
T7+
T2-
T4-
T6-
T8-
CH AB+CD
T1
+
T3+
T5-
T7-
CH C+D
T5+ T7-
CH A+B
T1+ T3-
BRIDGED
OUTPUTS TO SPEAKERS
CH A
CH D
CH C
CH B
+
+
+
+
-
-
-
-
T1
T4
T3
T2
T5
T8
T7
T6
PARALLEL CHANNEL
COMBINING APPLICATIONS
For A+B (Bridged) to one loudspeaker load
Use one 2-wire cable; connect to:
• T1+/T3-
For C & D (Separate) to two loudspeaker loads
Use two 2-wire cables; connect to:
• T5+/T6- for CH C
• T7+/T8- for CH D
Parallel Channels (ABCD)
— Figure 8 —

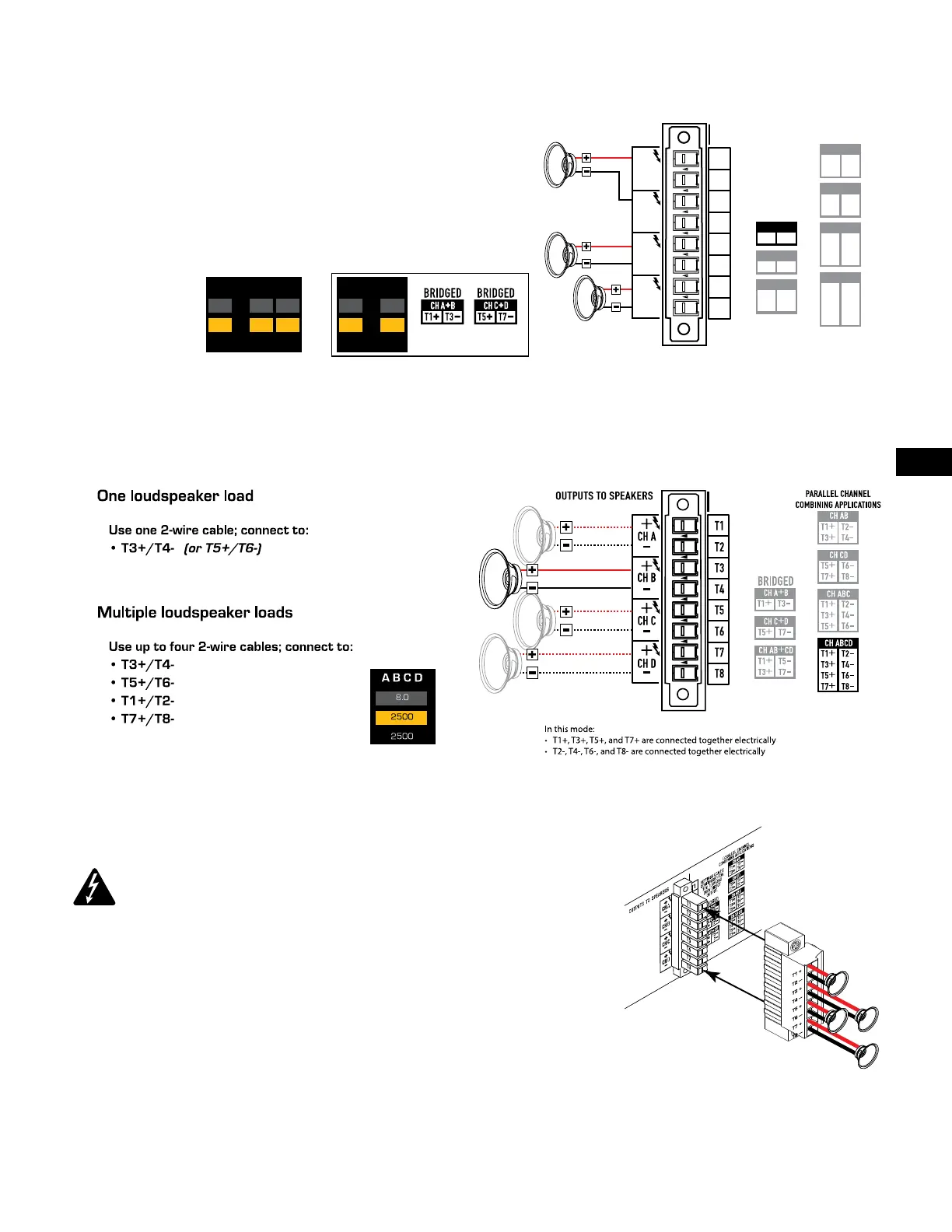

Connect the Loudspeakers
WARNING!: When the AC power is on, there may be potentially dangerous
voltage at the output terminals on the rear of the amplifier. Use caution to not
touch these contacts. Turn off the AC mains disconnect switch prior to making any
connections.
1. Turn off the AC mains power switch on the back of the amplifier.
2. Connect the loudspeaker wiring to the 8-pin Euro-style connector as needed for your amplifier's
configuration. (Figure 6 through Figure 8) When combining channels, QSC recommends that
you connect jumpers between the electrically same output terminals. Refer to Figure 9 and the
WARNING above the figure.
3. Install the female 8-pin Euro-style connector onto the male connector on the rear of the amplifier
as shown in Figure 9.
4. Use a Phillips screwdriver to secure the connector.
— Figure 9 —
