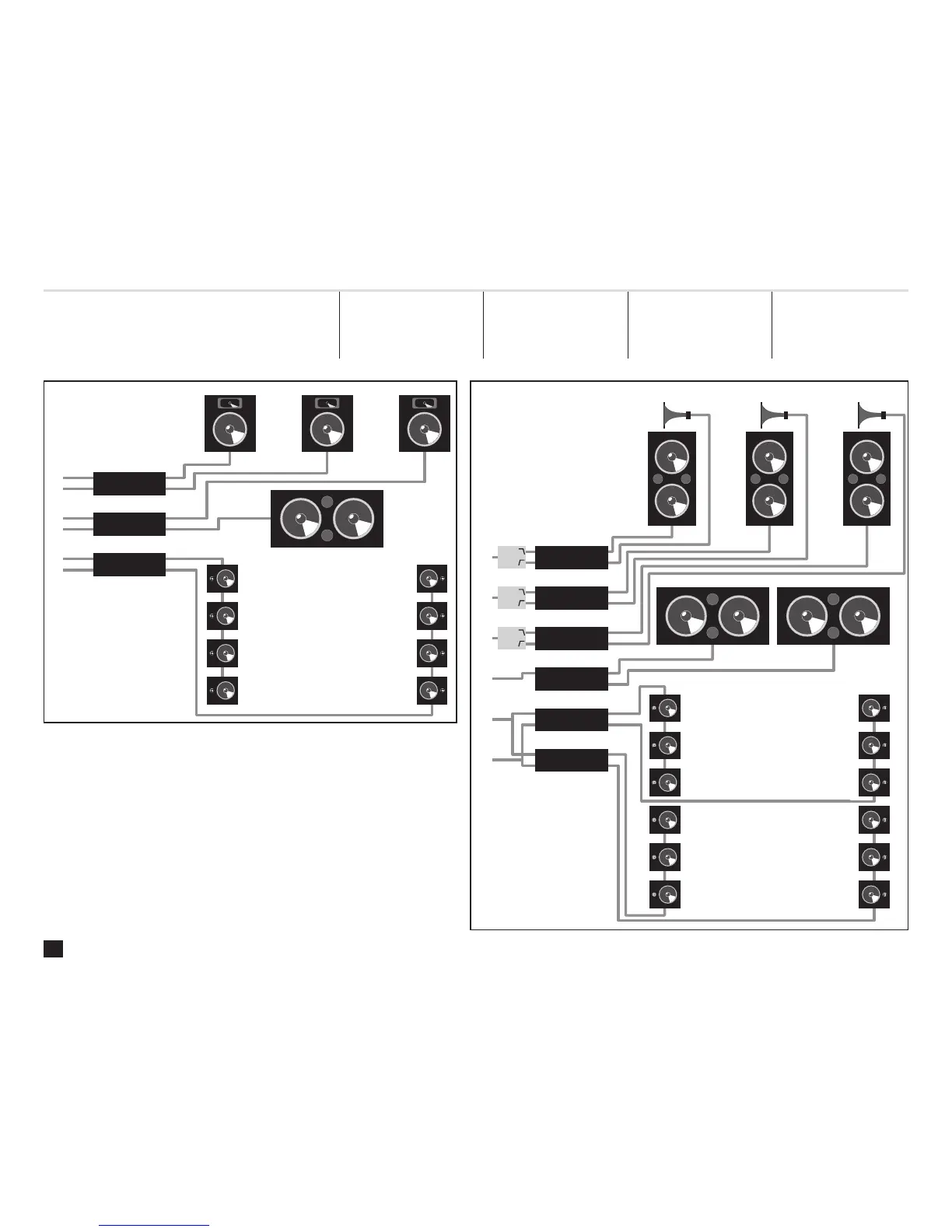

APPLICATIONS APPLICATIONS ANWENDUNGS-
BEISPIELE
APLICACIONES
DCA 1222
(stereo mode)
DCA 1222
(stereo mode)
DCA 1222
(stereo mode)
15" (38 cm) + horn
2 × 18" (45.7 cm)
8" (20 cm) + dome
LEFT
CENTER RIGHT
SUBWOOFER
SURROUND LEFT
SURROUND RIGHT
1
1
1
2
2
2
L
R
SL
C
Sub
SR
2 × 15" (38 cm)
LEFT
CENTER RIGHT
8" (20 cm) + dome
SURROUND LEFT
FRONT
SURROUND RIGHT
FRONT
L
R
SL
C
Sub
SR
2 × 18" (45.7 cm)
SUBWOOFERSUBWOOFER
DCA 1622
(stereo mode)
DCA 1622
(stereo mode)
DCA 1622
(stereo mode)
DCA 3002
(parallel mode)
DCA 1222
(stereo mode)
DCA 1222
(stereo mode)
1
1
1
1
1
1
2
2
2
2
2
Crossover
Crossover
Crossover
SURROUND LEFT
REAR
SURROUND RIGHT
REAR
A small passive system
Un petit système passif
Ein typische Passivsystem
Un sistema pasivo pequeño
A typical 2-way system
Un système 2 voies typique
Ein typische 2-Weg Aktivsystem
Un sistema típico de 2 vías
