Screen Types
Presets
The PLD amplifi ers are preset driven, so to get the most out of the amplifi ers an understanding of how presets work is essential. A Preset, in the
context of the PLD amplifi ers, is a combination of amplifi er confi guration and DSP processing; as a preset is recalled it can change the output routing
and wiring and/or any DSP processing.
Preset Creation
A preset can be created in two ways, the fi rst is to modify an existing preset, then save this as a new Preset; the second is to use the Preset Wizard to
create a Preset from scratch.
Preset Wizard
The Preset Wizard simplifi es the preset creation process, and allows the user to create a preset from the ground up. The Wizard provides a mechanism
for the user to select his desired power and load. Based on these selections, the best amplifi er confi guration is selected and the user is then allowed to
select and assign loudspeakers to each output.

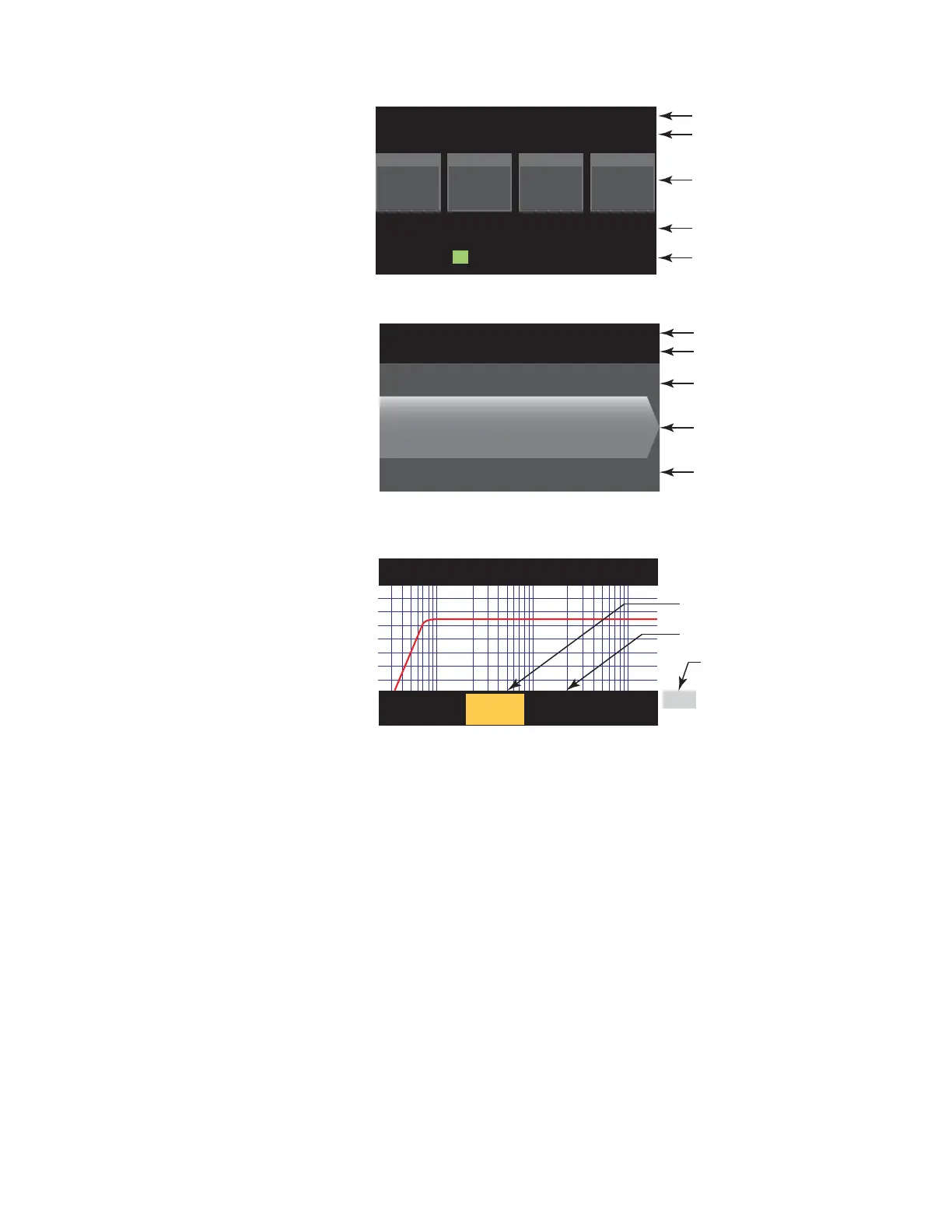

— Figure 11 —
Informational
Informational screens, like the HOME screen, are
designed to provide you with a good amount of
useful information at a glance.
F1: Config - A B C D
Full
+1.5 dB
A - FR
+1.5 dB
C - FR
Full
+1.5 dB
D - FR
Full
121 V 7.2 AAC Voltage: AC Current:
Home (Press HOME for more information)
+3.5 dB
B - FR
Full
Amp Status:
OK
Preset # and Configuration
Location and breadcrumbs
Channel Configuration
and Gain
AC Voltage and Current
Amplifier Status
— Figure 12 —
Preset Recall and Save
Menu
PRESETS
INPUTS
F1: Config - A B C D
Preset # and Configuration
Location and breadcrumbs
Current Menu Selection
Empty area indicates no
selections above (CCW).
Next Menu selection below
(CW)
Navigational
Navigational screens provide the means to move
around and select menu items. Use the Master
Control knob, ENTER and EXIT buttons for navigation.
This is an example of one type of navigational screen,
there are others.
— Figure 13 —
Parameter Editing
Parameter Editing screens allow you to select, edit,
and confi rm changes for various system parameters.
Use the ENTER button to edit and confi rm changes
to parameters. Use the Master Control knob to select
parameter, and make adjustments. Use the EXIT
button to exit the edit mode without saving changes.
Gain
-7.0 dB
Gn/Pol
F1: Config - A B C D
Polarity
POL+
Output
A
20 dB
-60 dB
Gain
-7.0 dB
Parameter being edited
Parameter not selected
Parameter selected
To Next Page
