QSC Q-SYS User Manual

11
TD-000520-00-A
Connections

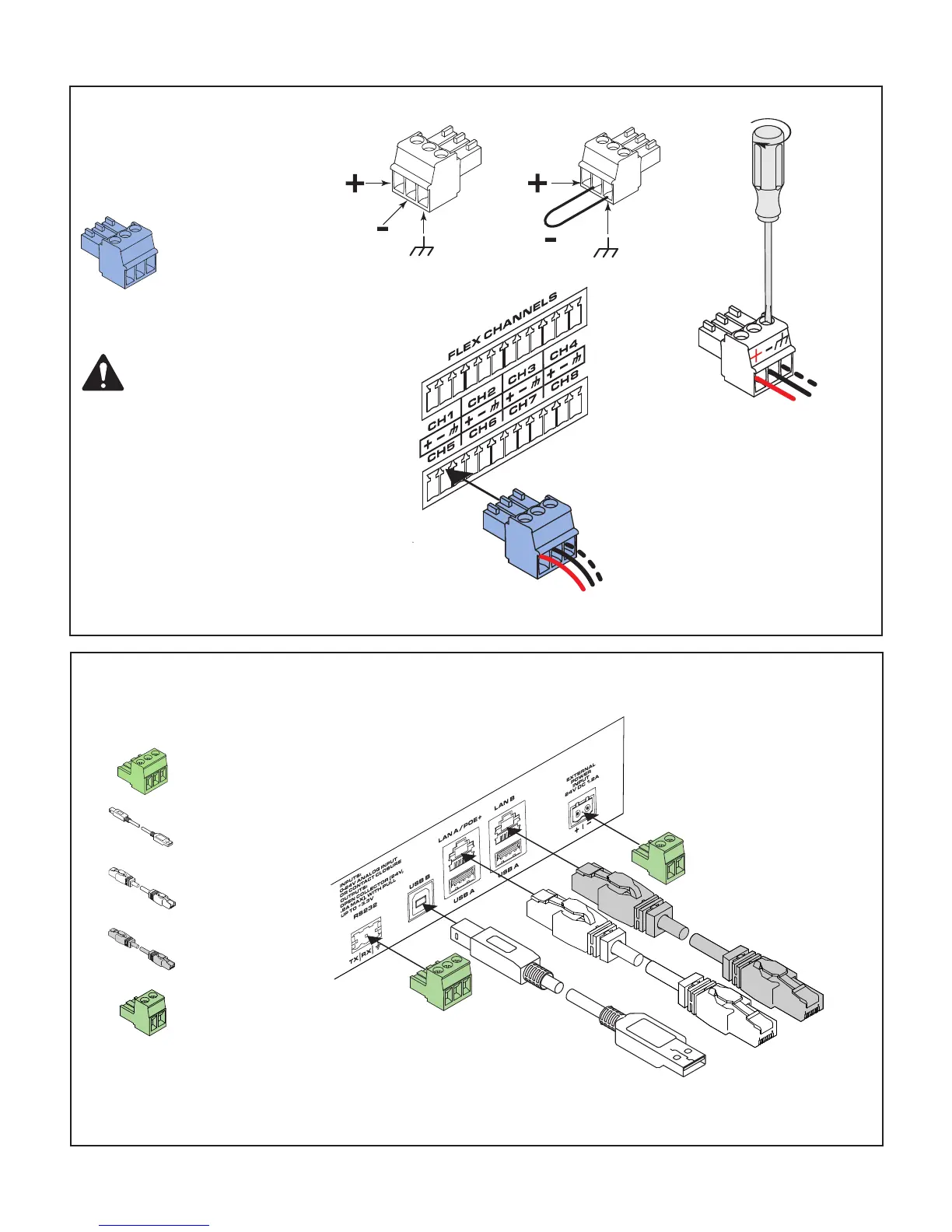

Input / Output Connectors
3-Pin, color-coded, Euro
Connectors
• Flex Channels (8 blue)
CAUTION!: A single
channel consists of
three pins. It is
possible to plug in a
connector that
straddles two
channels. Be sure that
the plugs do not
straddle two channels.
Balanced Unbalanced
Communication and Power Connectors
Make the following connections as
required.
1. 3-pin Euro
connector – for
RS232 TX and RX
2. USB Type B – for
external devices,
not supplied
3. RJ45/Cat6 – PoE+,
audio, & control,
not supplied
4. RJ45/Cat6 – audio,
& control, redundant
network, not supplied
5. 2-pin Euro
connector – for
+24V DC 1.2A
external power,
redundant power
for PoE+
1
2
3
4
5
