13
TD-000520-00-A
Flex In Channel Status
NOTE: If a Flex channel is set to Input, there is
no information shown under the same channel on
the Flex Out screen. If the Flex channel is set to
Output, there is no information for that channel on
the Flex In screen.

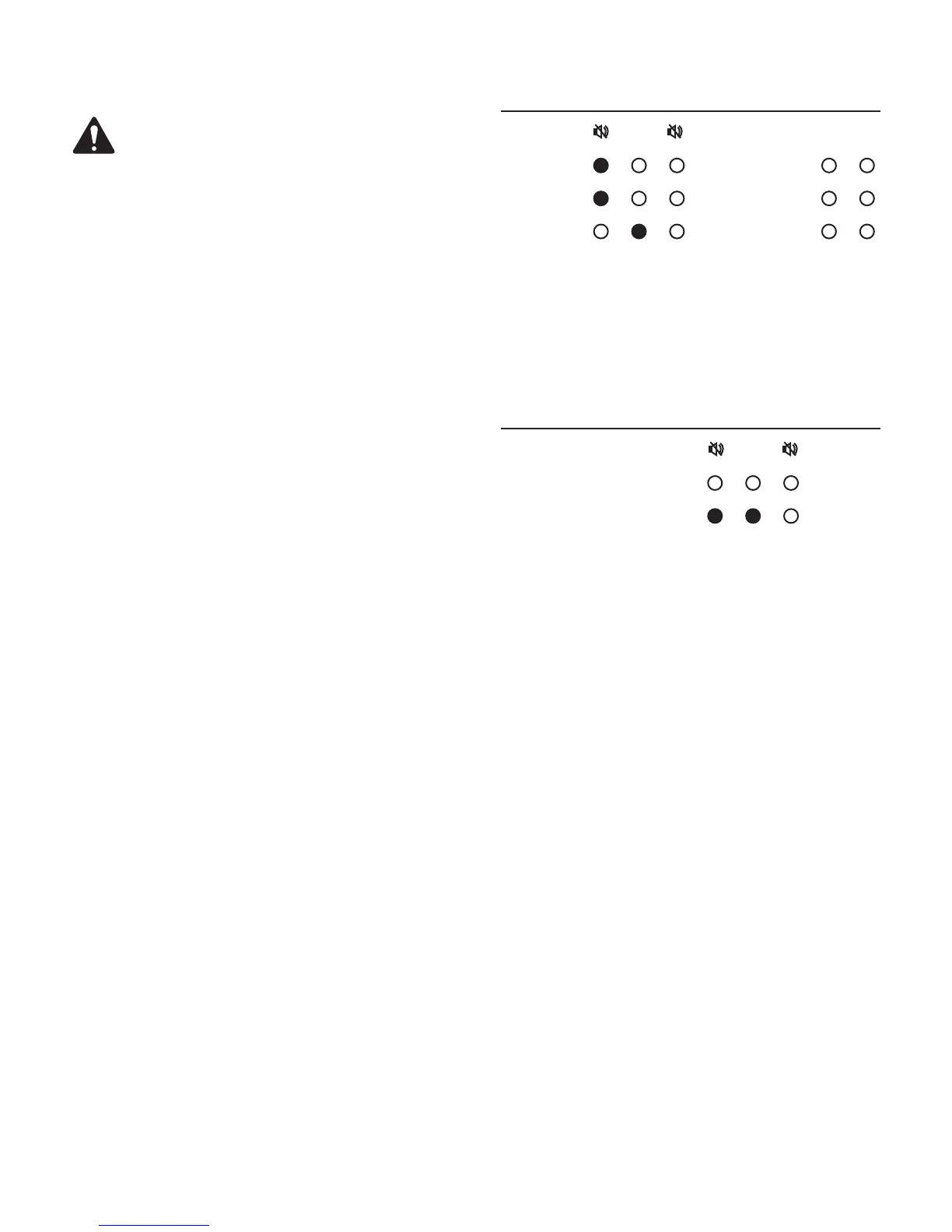

The Flex Input screens show the Mute, Clip, Signal, and +48V
(phantom power) for the eight Mic/Line input channels.
• Mute – Displays a "muted loudspeaker" when the channel is muted.
• Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.
• Signal – Displays a solid circle when there is a signal present on the associated channel.
• +48V - Displays a sold circle when phantom power is active on the associated channel.
Flex Out Channel Status
The Flex Output screens show the Mute, Clip, and Signal, for
the eigth Line output channels.
• Mute – Displays a "muted loudspeaker" when the channel
is muted.
• Clip – Displays a solid circle under the channel having an
output signal over driving the associated channel output.
• Signal – Displays a solid circle when there is a signal
present on the associated channel.
Mute
Clip
Signal
+48V
1
Flex Out
Mute
Clip
Signal
1
