2.1 Warnings
2.1 Warnings

l
Duringtheinstallationphases,paytheutmostattentioninordertoavoiddrillingintowaterpipes,gas
pipes,electricalducts,etc.
l

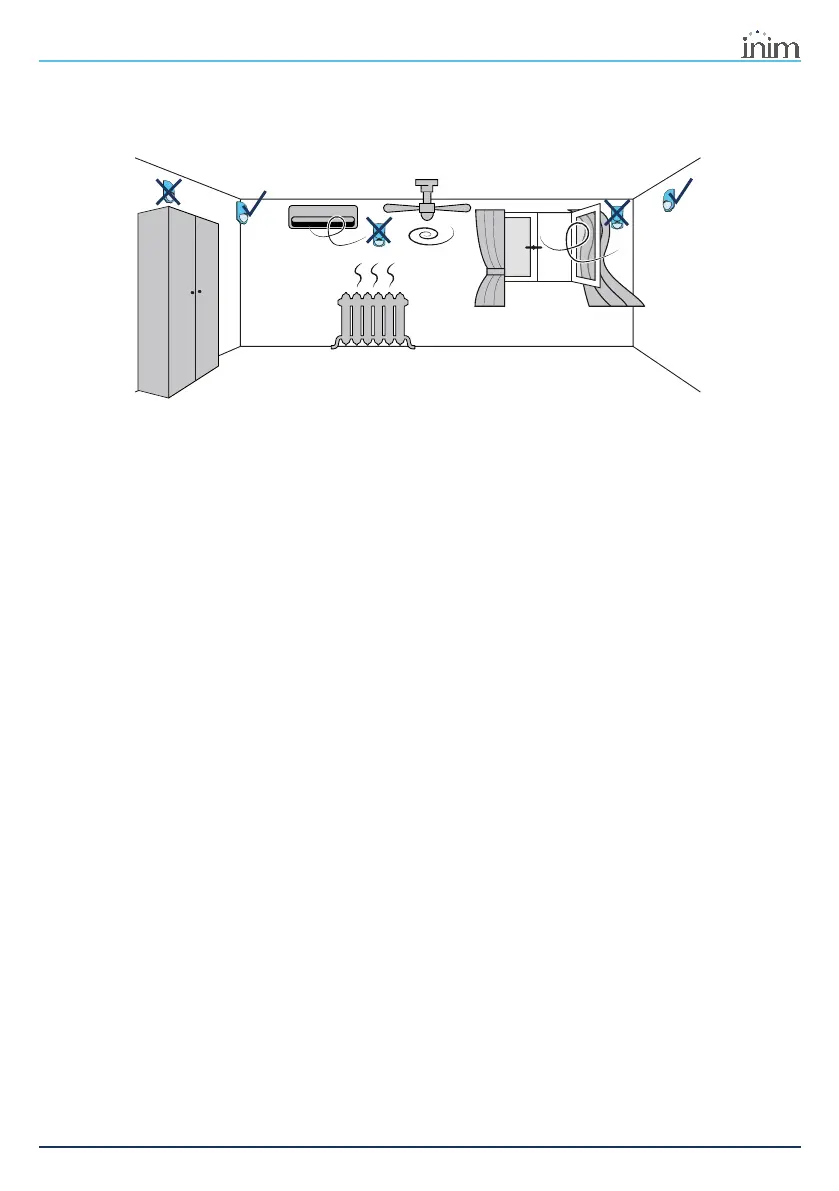

Avoidinstallingthedetectorinthevicinityofthefollowingsourcesofinterference:reflectivesurfaces,
directairflow,air-conditioningsystems,windows,sourcesofsteam,oilfumes,infraredsources,
powerlines,neonlampsandobjectsthatcancausetemperaturechangessuchasstoves,refri-
geratorsandovens.
l
Donotinstallthedetectorinlocationswherethereisriskofrapidtemperaturechanges.
l
Donotblindthefieldofdetectionofthesensor,evenpartially.
l
Thedetectorshouldbemountedwiththealarm-LEDstripabovethelensandnotviceversa.
l
Donottouchtheelectroniccomponentsasthismaydamagethecircuitsandreducethereliabilityof
thedetector.Ifnecessary,cleanthedetectorwithasoftclothonly.
l
Thisdetectormustbeinstalledincompliancewiththelawsandstandardsinforce.
l
Thedeviceshouldbetestedonaregularbasis.
2.2 Coverage
Thisparagraphshowstheprojectionsonahorizontalplaneandonaverticaloneoftherangeofthedevice
sensors.
Themeasurementsshownareinmetres.
