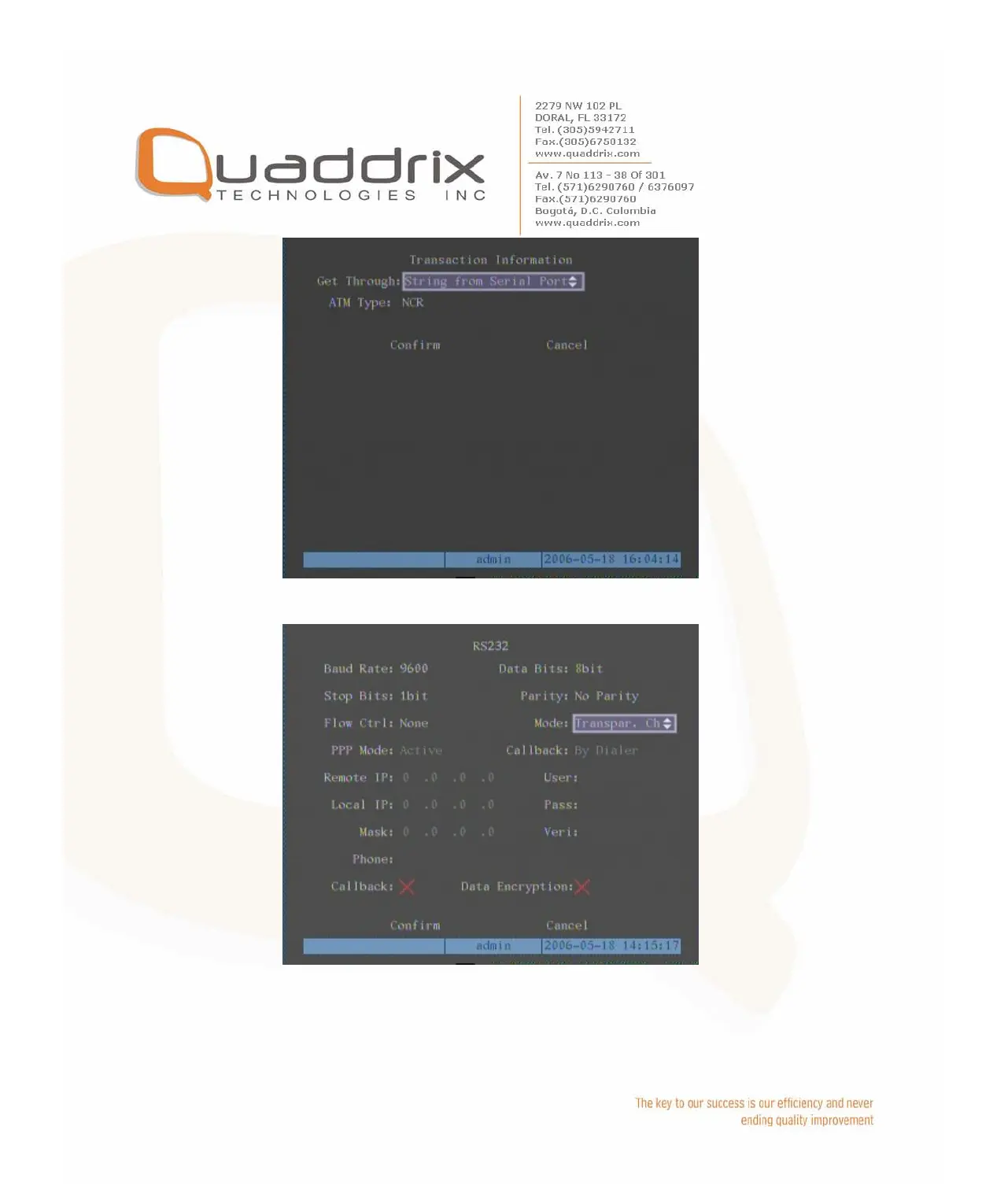

In the case, you must set the RS-232 of DVR as transparent channel
mode as following:
A software must be run in the ATM machine, and send the credit card
number, transaction code to DVR through RS-232 port.
Please provide detail ATM machine communication protocol for actual
projects.
