Quadra-Fire PELLET INSERT CB1200I - Brick Set Installation; Brick Clip Installation

Page 24
7014-188B
February 3, 2010
R
CB1200-I Pellet Insert
R
R

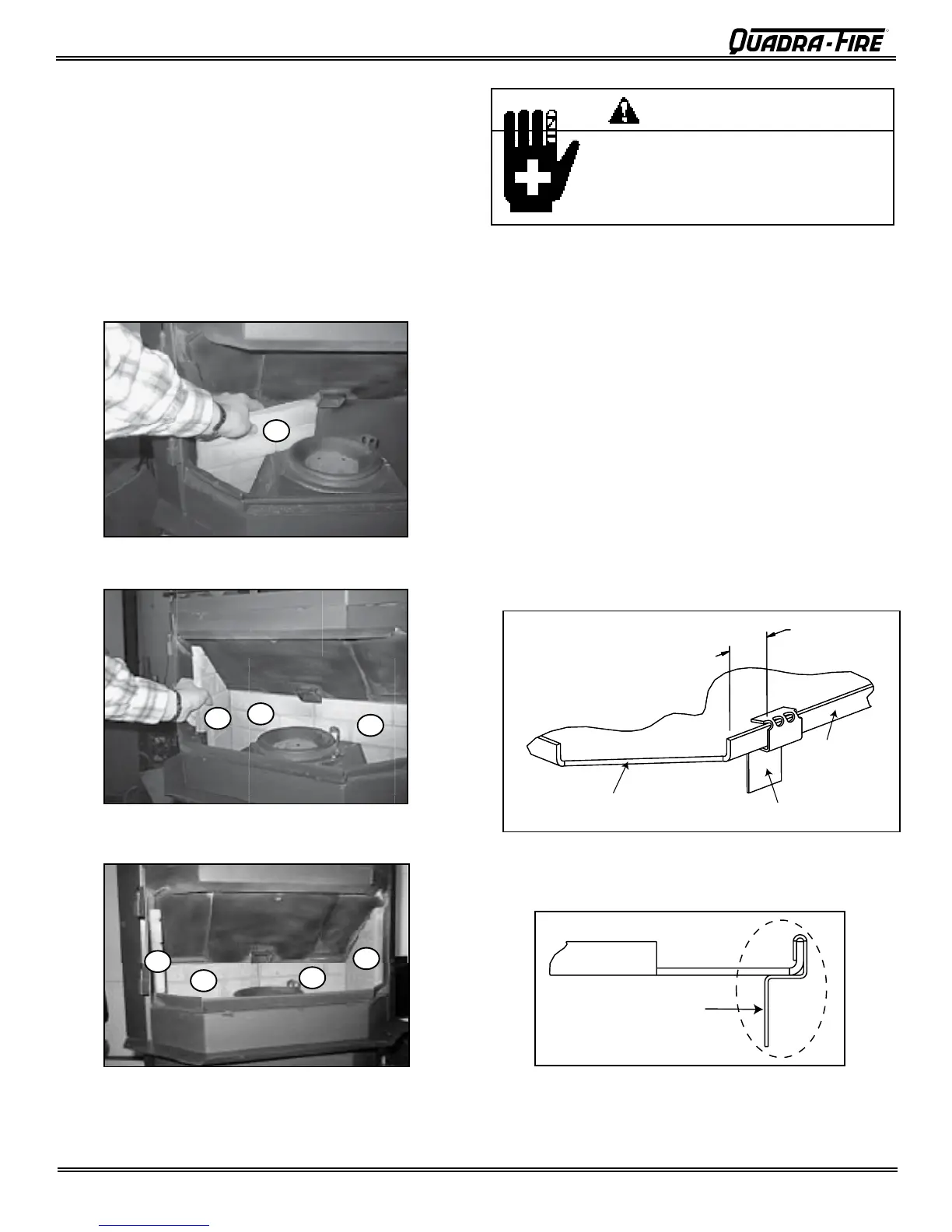

G. Optional Brick Set Installation
H. Brick Clip Installation
1. Slide bottom of left rear brick in rst; rotate top edge to-
ward rear of appliance and then rotate outer edge toward
rear of appliance, until brick slides into place. Figure
24.1. Repeat for right rear brick.
2.
Place left side brick along left side of rebox, making sure
chamfered (beveled) back edge ts snugly next to left rear
brick. Figure 24.2. Repeat with right side brick.
3.
Complete brick set, correctly installed. Figure 24.4.
1
1
2
3
1
2
3
4
Figure 24.1
Figure 24.2
Figure 24.3
Figure 24.4
1. After the brick set has been installed, 2 brick clips need to
be installed on the outer edge of bafe to keep the brick
set in place. Remove the bafes from the appliance before
installing the brick clips.
2. Using pliers, bend the brick clip slightly past 90° in the
direction shown in Figure 24.4.
3.
Position the brick clip as shown in Figure 24.4 and use pliers
to crimp around the outside edge of the bafe. Figure 24.5
shows the nished shape of the brick clip after being bent
around the outside edge of the bafe.
4.
Slide the bafes back into place making sure that the brick
clip holds the brick out toward the wall of the rebox. Push
back on the sides so they keep the rear bricks in place.
Repeat for the opposite side.
Approximately
1 inch
Top outside
corner of Baffle
Outside edge
of Baffle
Brick Clip
Installed Clip
• Brick may have small wires protruding from
the back of brick.
WARNING
Risk of Injury.
Figure 24.5
