Quadra-Fire PELLET INSERT CB1200I - 3 Dimensions and Clearances; Appliance Dimensions; Clearances to Combustibles (Built-In)

Page 8
7014-188B
February 3, 2010
R
CB1200-I Pellet Insert
R
R
3
Dimensions and Clearances
A. Appliance Dimensions

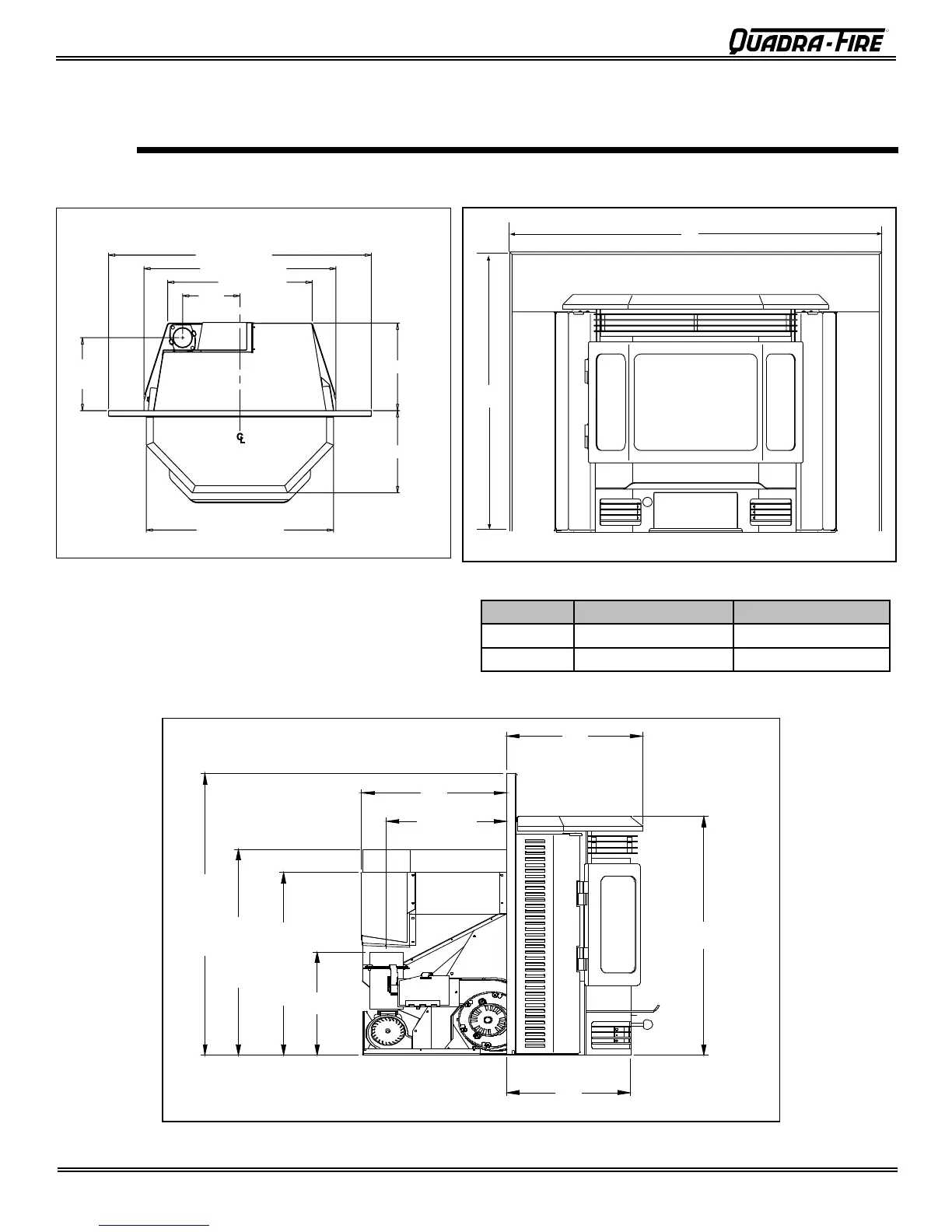

Figure 8.2 - Front View
Figure 8.1 - Top View
Figure 8.3 - Side View
Panel A B
Standard 30 inches (762mm) 40 inches (1016mm)
Large 33 inches (838mm) 50 inches (1270mm)
B
A
30 in. (762mm)
22 in. (559mm)
19-1/2 in. (495mm) 11in.
(279mm)
11"
(279mm)
25-1/2 in.
(648mm)
12 in.
(305mm)
13 in.
(330mm)
10-3/4 in.
(273mm)
(Hopper Up)
(Hopper Down)
C
L
22 in. (559mm)
29-1/4 in. (743mm)
8-3/4 in.
(222mm)
40 in. (1016mm)
13 in. (330mm)
12 in. (305mm)
28-1/2 in. (724mm)
10-3/4 in.
(273mm)
