22 April 2, 20197050-802B
SANTA FE FREESTANDING
10. Soot and Fly Ash: Formation & Need for Removal
in Exhaust Venting System.
• Frequency: Yearly or more frequently depending on
ash build-up.
• By: Qualied Service Technician/Homeowner
Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is o󰀨.
The products of combustion will contain small particles
of y ash. The y ash will collect in the exhaust venting
system and restrict the ow of the ue gases.
At start-up if there is incomplete combustion, or if there is
a shutdown or incorrect operation of the appliance it will
lead to some soot formation. This will collect in the exhaust
venting system.
The venting (chimney) system may need to be cleaned at
least once a year or more often depending upon the quality
of your fuel or if there is a lot of horizontal pipe sections.
Ash will build up more quickly in the horizontal sections.
11. Cleaning the Glass
• Frequency: When clear view of the re pot
becomes obscure
• By: Homeowner
a. Appliance must be completely cool before
cleaning glass.
b. Vacuum y ash from glass and door rope.
c. Use a damp paper towel or any non-abrasive glass
cleaner. Wipe o󰀨 with dry towel.
12. Door Latch Inspection
• Frequency: Prior to heating season
• By: Homeowner
The door latch is non-adjustable but the gasket between
the glass and rebox should be inspected periodically to
make sure there is a good seal.
13. Cleaning Exhaust Blower - Requires No Lubrication
• Frequency: Yearly or as needed
• By: Qualied Service Technician
• Task: Contact your local dealer
14. Cleaning Convection Blower - Requires No
Lubrication
• Frequency: Yearly or as needed
• By: Qualied Service Technician
• Task: Contact your local dealer.
15. Cleaning the Top Vent Adapter
a. The appliance must be in complete shutdown and the
exhaust blower should be o󰀨. Allow the appliance to
completely cool down.
b. Open the clean out cover (See Figure 22.1).
c. Sweep out any ash build-up.
16. Preparing Firebox for Non-Burn Season
• Frequency: Yearly at the end of the heating season
• By: Homeowner
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is o󰀨.
b. Remove all ash from the rebox and vacuum thoroughly.
c. Paint all exposed steel, including cast-iron.
• Use the Touch-Up paint supplied with the appliance;
or;
• Purchase paint from your local dealer.
• Must use a high-temperature paint made
specically for heating appliances.

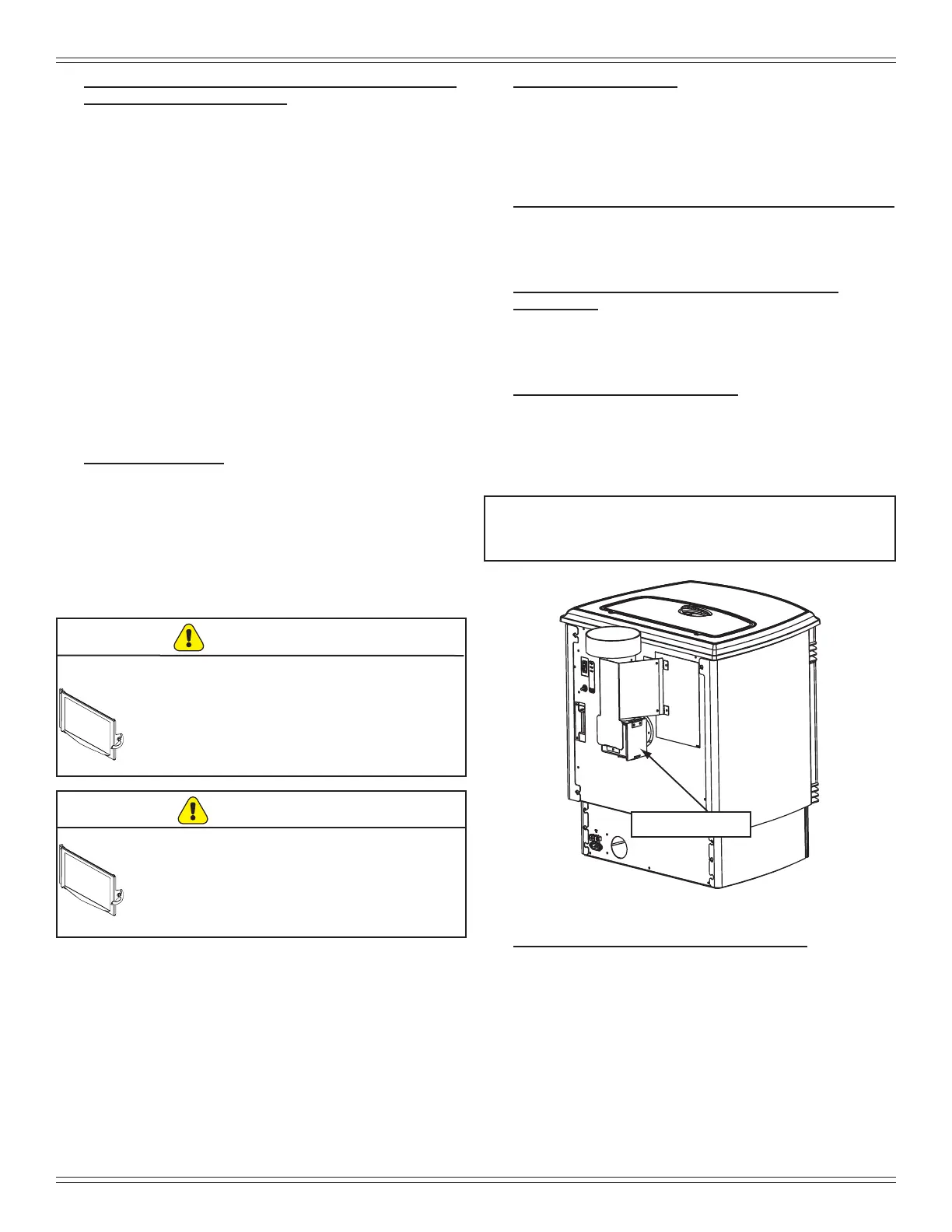

Figure 22.1
Clean-Out Cover
NOTE: There are heavy duty vacuum cleaners
specically designed for solid fuel
appliance cleaning.
Handle glass assembly with care.
When cleaning glass:
• Avoid striking, scratching or slamming glass.
• Do NOT clean glass when hot.
• Do NOT use abrasive cleaners.
• Refer to maintenance instructions.
CAUTION
Handle glass with care.
• Inspect the gasket to ensure it is
undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
assembly removed.
WARNING
