35April 2, 2019 7050-802B
SANTA FE FREESTANDING
Service Parts
SANTAFE-C
Beginning Manufacturing Date: April 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Hopper Lid SRV7050-132
Hopper Lid Stop (Prep Rod) SRV7050-126
2 Top SRV7050-101
3 Door Hinge Assembly SRV7019-014
Hinge, Door, Male SRV450-2810
4 Top Face Assembly 7019-047
5 Grill Bar (Scraper)
Matte Black, 1 pc
7019-119
6 Upper Grill Assembly
Matte Black, 3 Pc
7019-007
Grill Bracket Cover 7019-199
7 Pull Rod Assembly 7019-009
7.1 Pull Rod Black Nickel SRV7019-172 Y
7.2 Spring, Firepot 200-2050 Y
7.3 Washer, 5/16
Pkg of 10 7000-579/10
Y
Pkg of 50 3-30-0205-50
Y
8 Firepot Assembly SRV414-5200 Y
8.1 Bolt, Hex Head, 1/4-20 X 1 Pkg of 10 25221A/10 Y
8.2 Gasket, Firepot SRV240-0930 Y
8.3 Heating Element Assembly 18” (Loop Igniter)
Pkg of 1 SRV7000-462 Y
Pkg of 10 SRV7000-462/10 Y
8.4 Wing Thumb Screw 8-32 x 1/2 Pkg of 24 7000-223/24 Y
Bushing, Firepot 410-8320 Y
Floor, Firepot 414-0290 Y
Nut, Lock 1/4-20 Pkg of 25 226-0090/25 Y
Bolt, Firepot, 1-1/4” Long Pkg of 25 225-0120/25 Y
9 Thermocouple Cover
812-1322 Y
Pkg of 10 812-4920 Y
10 Thermocouple Clamp SRV7001-203 Y
Bolt, Hex Head, 1/4-20 X 1 Pkg of 10 25221A/10 Y
11 Thermocouple 812-4470 Y
Additional service part numbers appear on following page.

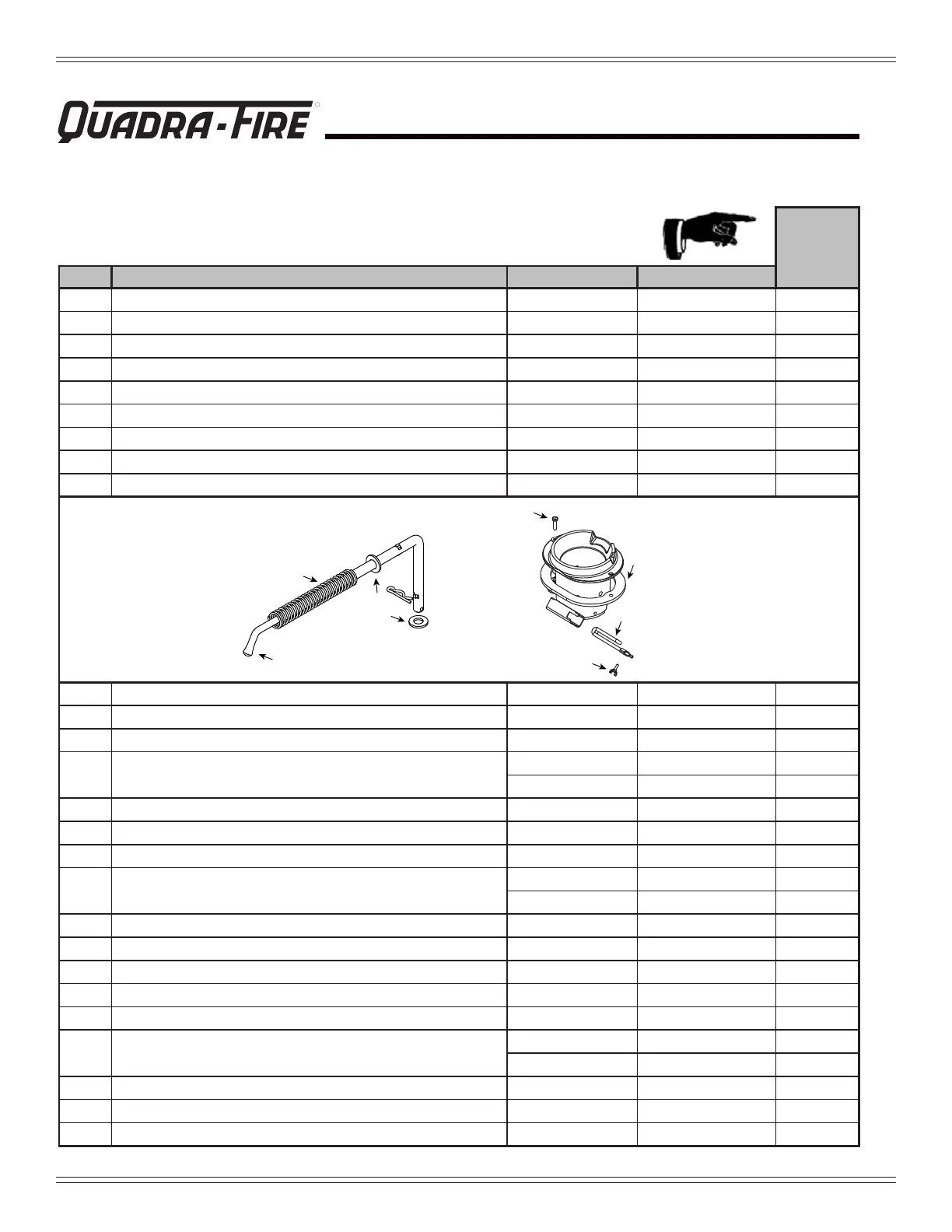

Pull Rod & Firepot Assembly
7.1
7.2
7.3
8.1
8.4
8.2
8.3
E. Service Parts
