36 April 2, 20197050-802B
SANTA FE FREESTANDING
Service Parts
SANTAFE-C
Beginning Manufacturing Date: April 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
12 Baf e Assembly 7001-034 Y
13 Brick, Left / Right, Cast SRV414-0270
14 Brick, Center, Cast SRV414-0260
15 Face Assembly w/Door SRV7019-045
16 Face Skin Assembly SRV7019-046
17 Door Assembly SRV7019-058
17.1 Screw, Pan Head Philips, 10/32 X 1/4 Pkg of 24 229-1230/24 Y
17.2 Hinge, Female SRV450-2910 Y
17.3 Glass Assembly SRV7021-032 Y
Glass Tape, 1/2” X 1/16”
10 Ft 240-0290/10 Y
35 Ft SRV240-0290M
17.4 3/4 Inch Rope Gasket
50 Ft SRV240-0051M
100 Ft 832-1520
Tape, Door Corner - Field Cut to Size 1 Ft SRV7027-227 Y
17.5
Screw, Pan Head Philips 8-32X1/4 Pkg of 40 225-0240/40 Y
17.6 Door Latch Assembly SRV7019-015
17.7 Door Handle Assembly SRV7019-037
Door Handle Black Nickel SRV7019-174
Pin 3/16 x 1/2 7000-229
18 Ash Drawer Assembly SRV7050-002
Logo, Quadra-Fire Pkg of 10 7000-649/10
19 Lower Grill Assembly
Matte Black, 4 Pc
7019-008
20 Snap Disc, 110-20, #1 SRV230-1220 Y
21 Pedestal Side Curtain SRV7050-105
22 Side Curtain Assembly SRV7050-005
23 Blower, Convection 812-4900 Y
Blower Magnet Pkg of 10 7019-188/10 Y
Additional service part numbers appear on following page.

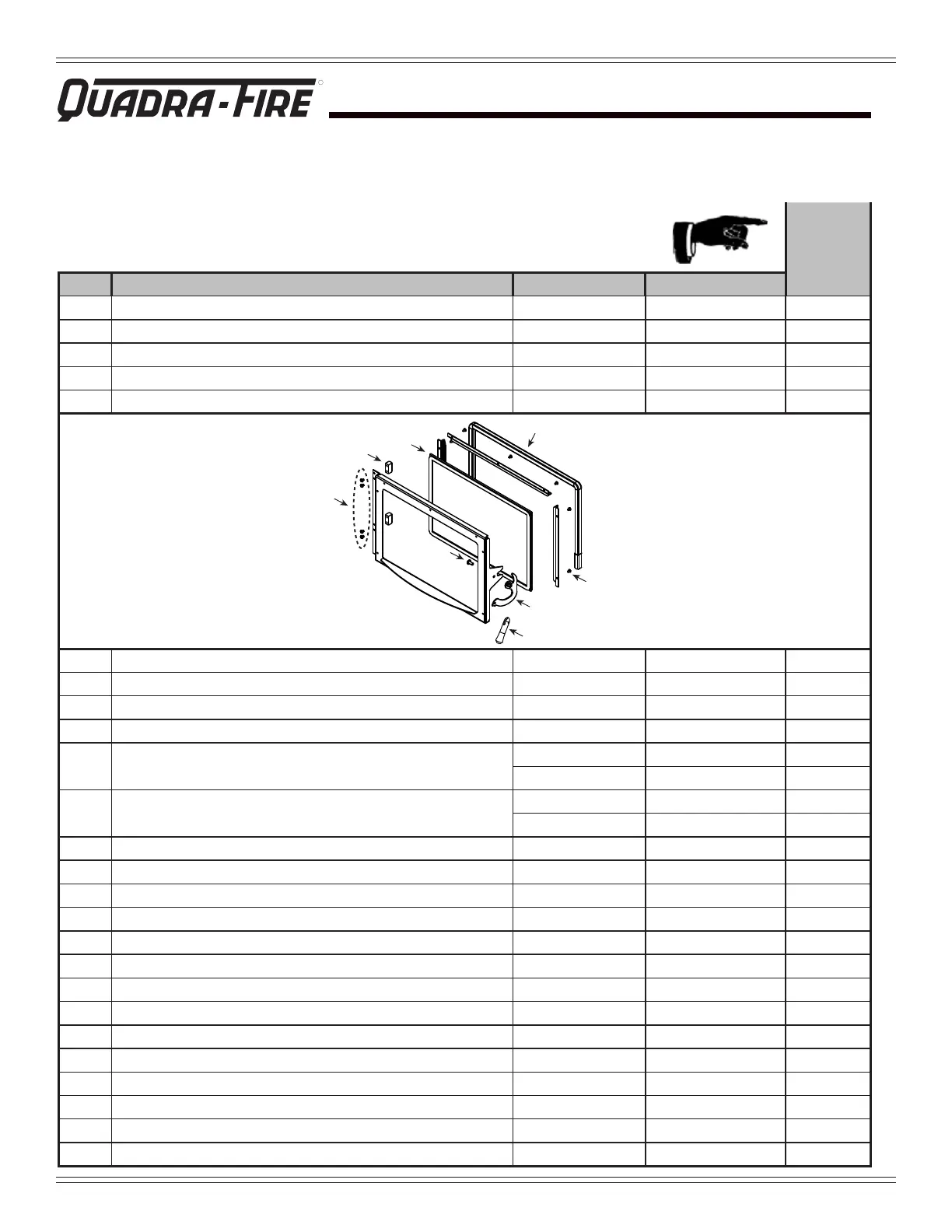

#17 Door Assembly
17.2
17.1
17.3
17.4
17.6
17.5
17.7
16.8
