C. Ba󰀪e Replacement
PART NUMBER: 7001-034
1. Follow Section A. Proper Shutdown Procedures
on page 18.
2. The top ba󰀪e has a hook on the bottom left side that
rests on the top lip of the cast brick. There is a tab on
the bottom right side that hooks into the side bracket.
Remove the top ba󰀪e by rst pulling the ba󰀪e forward
until back edge drops down. Then slide ba󰀪e back until
the front edge clears the shelf that it had been resting
on (Figure 28.1, 28.2 & 28.3) .
3. Reinstall new ba󰀪e.
D. Brick Replacement
PART NUMBERS:
LEFT OR RIGHT BRICK: SRV414-0270
CENTER: SRV414-0260
The ba󰀪e must be removed before any brick removal.
Removal of left or right side brick:
1. Remove the right brick by holding top lip of the brick
and lifting up.
2. Repeat for left brick.
3. Reinstall bricks in reverse order ensuring that
the bricks are ush against the back wall of the
rebox (Figure 28.4 & 28.5).

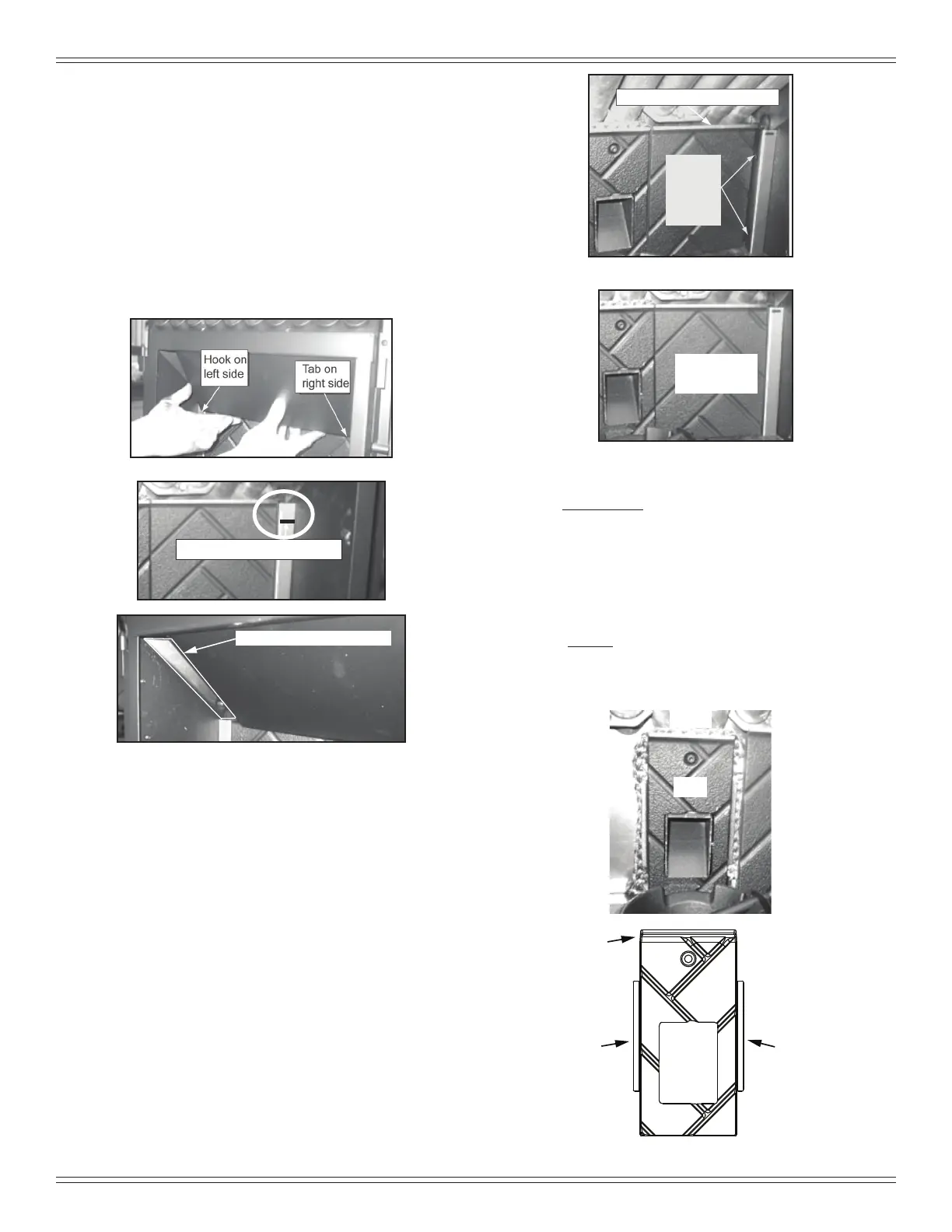

Figure 28.1
Brick is flush against back wall
Brick in
front of
clip and
Notches
exposed
Figure 28.4
Figure 28.6
Right Brick
Installed
Opening at left side of Baffle
Insert Baffle Tab into Slot
Figure 28.5
Figure 28.7
Figure 28.2
Figure 28.3
Removal of center brick:
1. Follow Steps 1 & 2 from Removal of left or right side
brick to remove left and right brick.
2. Use an 5/32 Allen wrench to remove bolt out of center
brick and set aside; remove and discard brick.
3. Validate rope in still in place; rope is wrapped around
drop tube and ends are secure with rope tape.
4. Add new center brick and taking care not to cross
thread the bolt; reinstall brick (Figure 28.6).
5. Repeat Step 4 from Removal of left or right
side brick.
6. Reinstall ba󰀪e (Reference Section C.
Ba󰀪e Replacement).
RopeRope
Bolt
Bolt
LipLip
Tab
Tab
Tab
Tab
