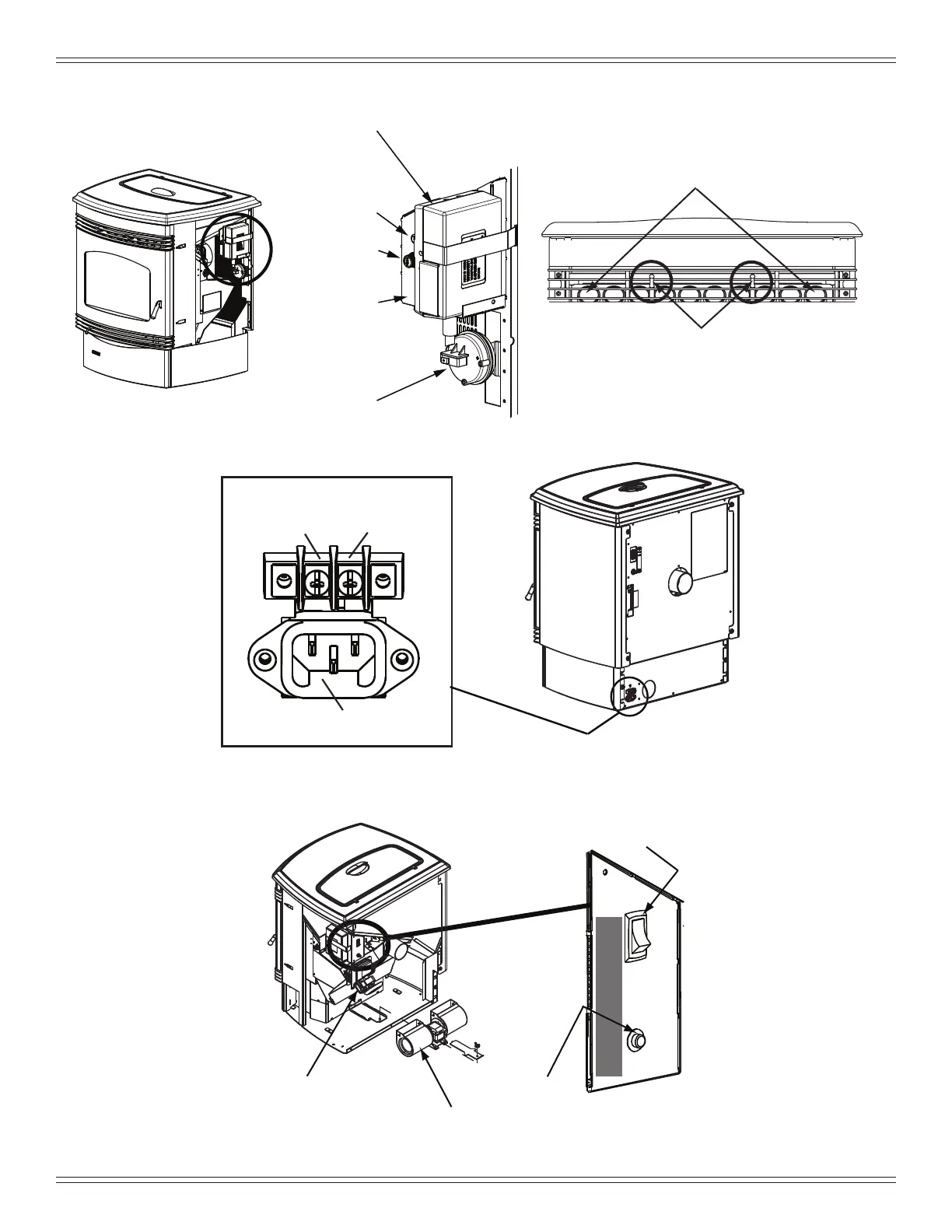

Quadra-Fire SANTAFE-C - Component Locations

32 April 2, 20197050-802B
SANTA FE FREESTANDING
Call Light
Fuse
Control
Box
Vacuum
Switch
Junction
Box
High
Med
Low
Heat Output Switch
Reset Button
Reset
Button
Combustion Blower
Convection Blower
TERMINAL BLOCK
CENTER 2 SCREWS FOR
THERMOSTAT WIRES
POWER OUTLET
Figure 32.1
Figure 32.2
Figure 32.3
Figure 32.4
Cleaning
Rods
10 Heat Exchanger Tubes
B. Component Locations
