SANTA FE FREESTANDING
17. Snap Disc #1 (Convection Blower) 110°F
Snap disc #1 is located on the right side of the
appliance on the bottom of the heat exchanger box.
There are 2 purple wires connected to it. This snap
disc turns the convection blower on and o󰀨 as needed.
Power is always present at snap disc #1.
18. Snap Disc #2 (Fuel Delivery Interrupt) 250°F
Snap disc #2 is also located on the back side of the
feed drop tube. There are 2 orange wires connected
to it. This snap disc will turn o󰀨 the feed system which
will turn o󰀨 the appliance if an over re condition should
occur or if the convection blower should fail to operate.
If this occurs the snap disc will automatically reset
itself.
19. Snap Disc #3 (Back Burn Protector) 250°F
Snap disc #3 is mounted on the back of the auger tube
in the center of the appliance and has a reset button.
To access it remove the right side panel. If the re tries
to burn back into the feed system or push exhaust up
the feed tube, this snap disc will shut the entire system
o󰀨. This disc must be manually reset.
20. Vacuum Switch
The vacuum switch is located on the lower right side of
the appliance behind right side panel. This switch turns
the feed system on when vacuum is present in the
rebox. The vacuum switch is a safety device to shut
o󰀨 the feed motor if the exhaust or the heat exchanger
system is dirty or plugged or if the rebox door is open.

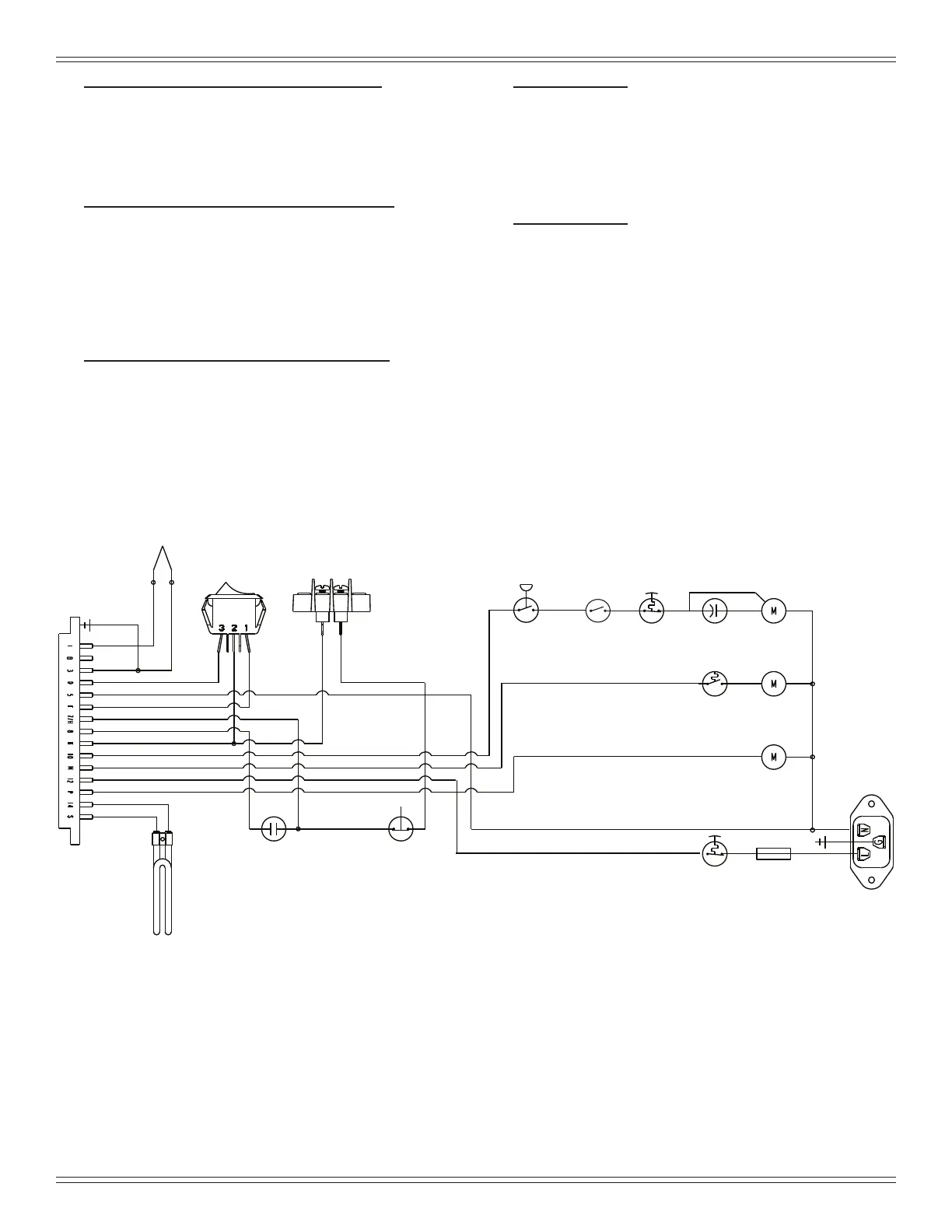

21. Wiring Harness
See Figure 31.1 below.
Figure 31.1
VACUUM
SWITCH
SNAP
DISC #2
CAPACITOR FEED
MOTOR
SNAP
DISC #1
CONVECTION
BLOWER
COMBUSTION
BLOWER
SNAP
DISC #3
FUSE
RESET
BUTTON
CALL
LIGHT
THERMOS TAT
BLOCK
HEAT OUTPUT
SWITCH
THERMOCOUPLE
IGNITOR
YELLOW
YELLOW
RED
RED
ORANGE
WHITE
BLUE
BLUE
PURPLE
GRAY
BLACK
BLACK
BLACK
BLACK
HOPPER
SWITCH
