26 April 2, 20197050-802B
SANTA FE FREESTANDING

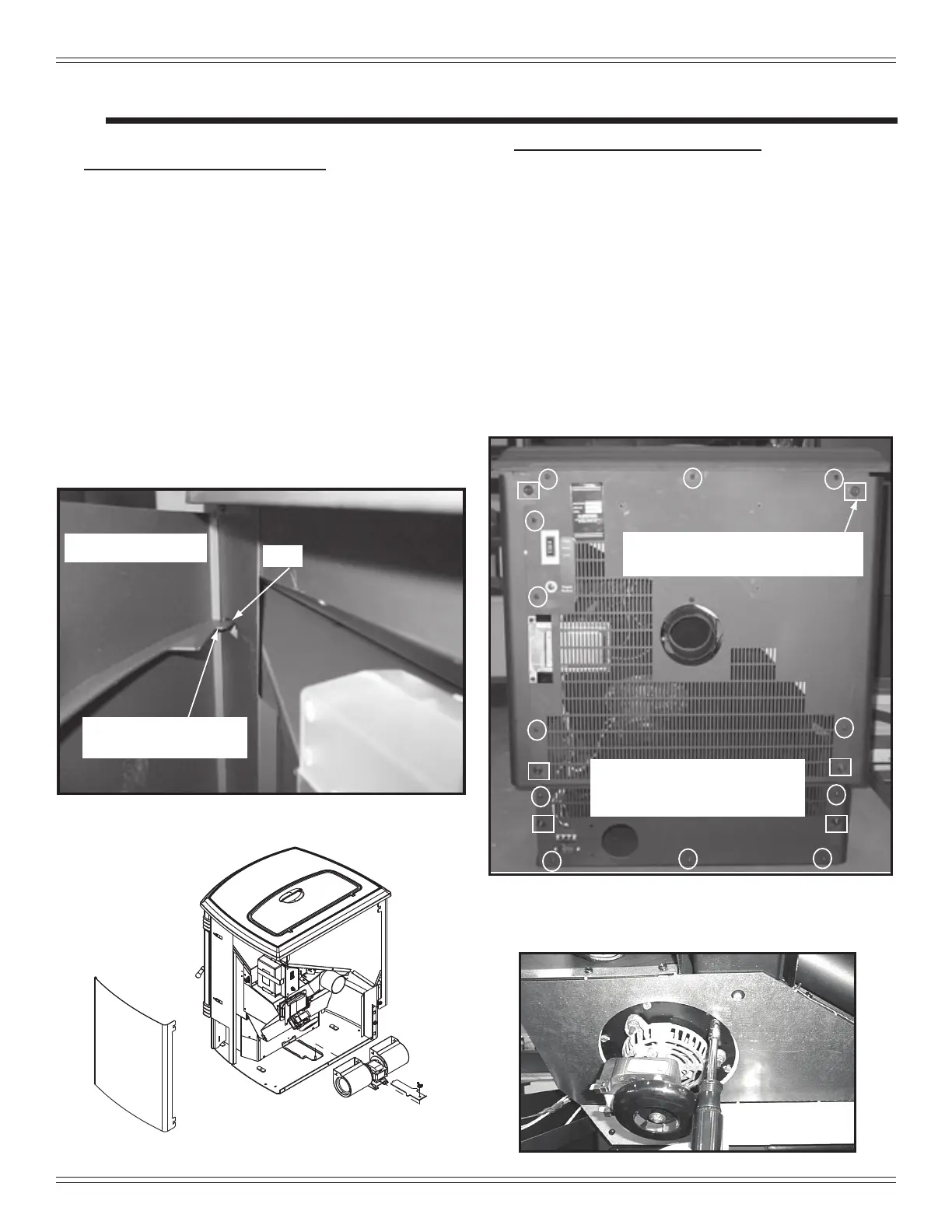

Figure 26.3
Side curtains slip under the 6 nuts
identified by the square marking.
Remove the circled screws to
remove the upper and lower rear
screens.
Figure 26.4
A. Blower Replacement
1. Convection Blower Replacement
PART NUMBER: 812-4900
a. Turn down the thermostat, let appliance completely
cool and then unplug appliance before servicing.
b. The Convection Blower is located on the oor at
the rear of the appliance.
c. Remove the right upper and lower side curtains
by loosening 7/16” nut in th back and lift o of the
appliance. When re-installing ex curtain to re-
attach (Figure 26.1).
d. Cut the tie wire holding the wires together and then
disconnect the white and purple wires.
e. Remove wing-nut and hold-down bracket and then
remove blower.
f. Re-install in reverse order.
g. Attach new tie wire to hold wires together.
Figure 26.2
Figure 26.1
Back of Side Curtain
Slot
Ribs on Curtain Slide into
Slots at Top and Bottom
2. Combustion Blower Replacement
PART NUMBER: 812-4400
a. Turn down the thermostat, let appliance completely
cool and then unplug appliance before servicing.
b. Remove both upper and lower side curtains
(Figure 26.1). Remove the upper and lower rear
curtains (Figure 26.3).
c. Disconnect the white and blue wires from the
exhaust blower.
d. There is a removable plate on the exhaust blower.
Using a 1/4” socket or short standard screwdriver
loosen the 6 screws in the keyhole shaped holes
and rotate the plate (Figure 26.4).
e. Remove the exhaust blower and gasket.
f. Re-install in reverse order.
5 Service Parts Replacement
