37April 2, 2019 7050-802B
SANTA FE FREESTANDING
Service Parts
SANTAFE-C
Beginning Manufacturing Date: April 2019
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
24 Pedestal Back SRV7050-134
25 Blower, Exhaust 812-4400 Y
Gasket, Exhaust Blower (Between…)
Housing & Stove SRV240-0812 Y
Motor & Housing 812-4710 Y
26 Vacuum Switch SRV7000-531 Y
Hose, Vacuum, 5/32 Id 3 Ft SRV240-0450 Y
27 Control Board 3 Speed SRV7000-704 Y
Fuse, 8 Amp, Control Box Pkg of 10 812-3780/10 Y
28 Wire Harness / Junction Box SRV7001-194 Y
Switch, 3-Position - Heat Output Rocker Switch 812-3500 Y
Reset Button Assembly SRV7000-040
Fuse, 7 Amp, Junction Box
Pkg of 10
812-0380/10
Y
29 Hopper Switch SRV7000-375 Y
Wire Harness Hopper Switch SRV7050-130 Y
30 Back SRV7050-102
31 Exhaust Transition Assembly SRV7001-009
32 Snap Disc, Manual Reset #3 SRV230-1290 Y
Bracket, Snap Disc #3 7001-221
33 Feed Assembly 812-4760 Y
33.1 Screw 8-32 x 3/8 Pkg of 40 225-0500/40 Y
33.2 Feed Motor 812-4421 Y
33.3 Collar, Set, 7/8 229-0520
33.4 Bearing, Feed System, Nylon SRV7000-598 Y
33.5 Gasket, Feed Motor SRV240-0731 Y
33.6 Feed Spring Assembly (Only) SRV7001-046 Y
33.7 Screw, 5/16-18 x 1/4 Pkg of 25 225-0550/25 Y
34 Snap Disc #2 SRV7000-268 Y
Bracket for Snap Disc 7005-253
Wire Harness for Snap Disk #2 SRV7001-224
Additional service part numbers appear on following page.

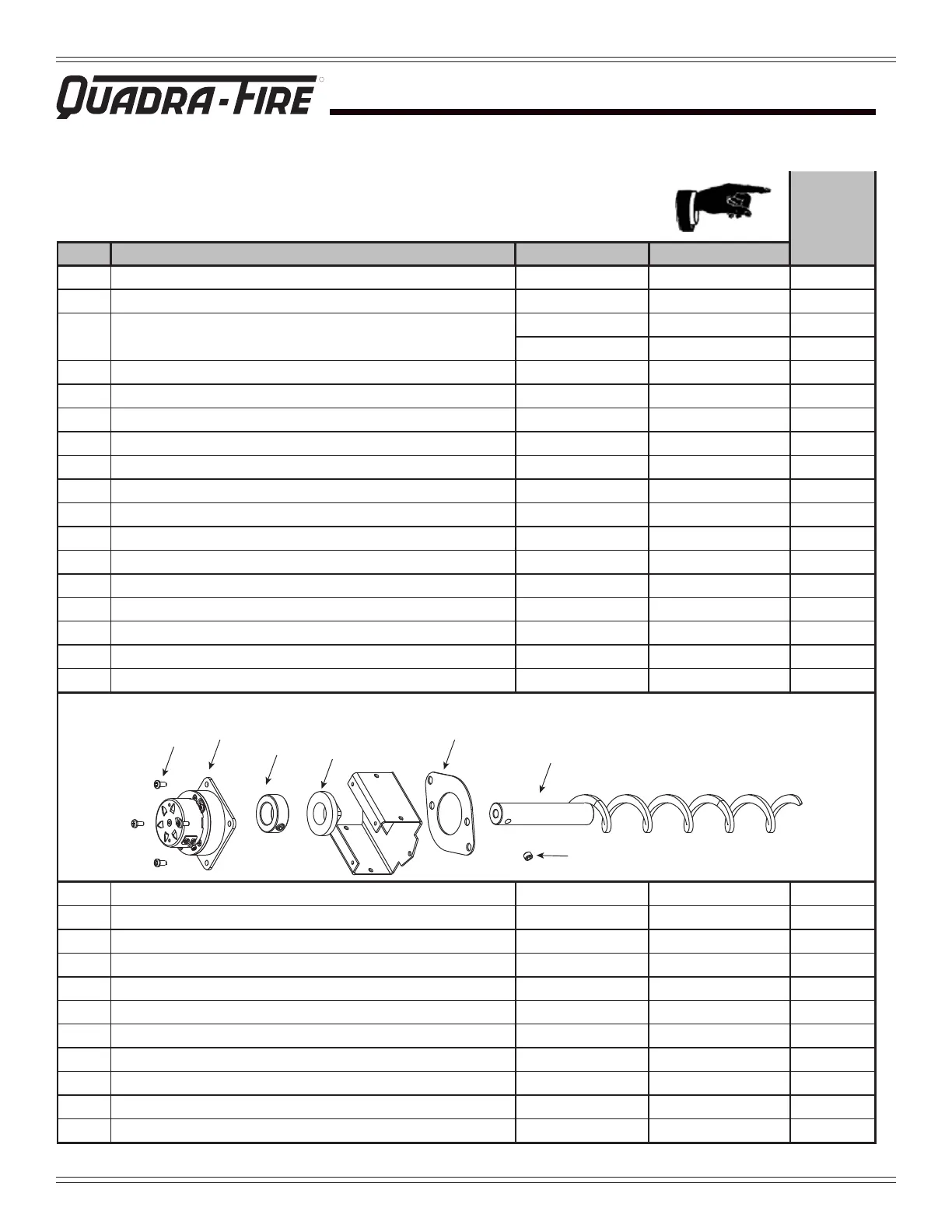

#33 Feed Assembly
33.1
33.2
33.3
33.4
33.5
33.6
33.7
