Quadro 350D - 4.6 CONTROLS; 4.7 INSTRUMENT PANEL LAYOUT

35

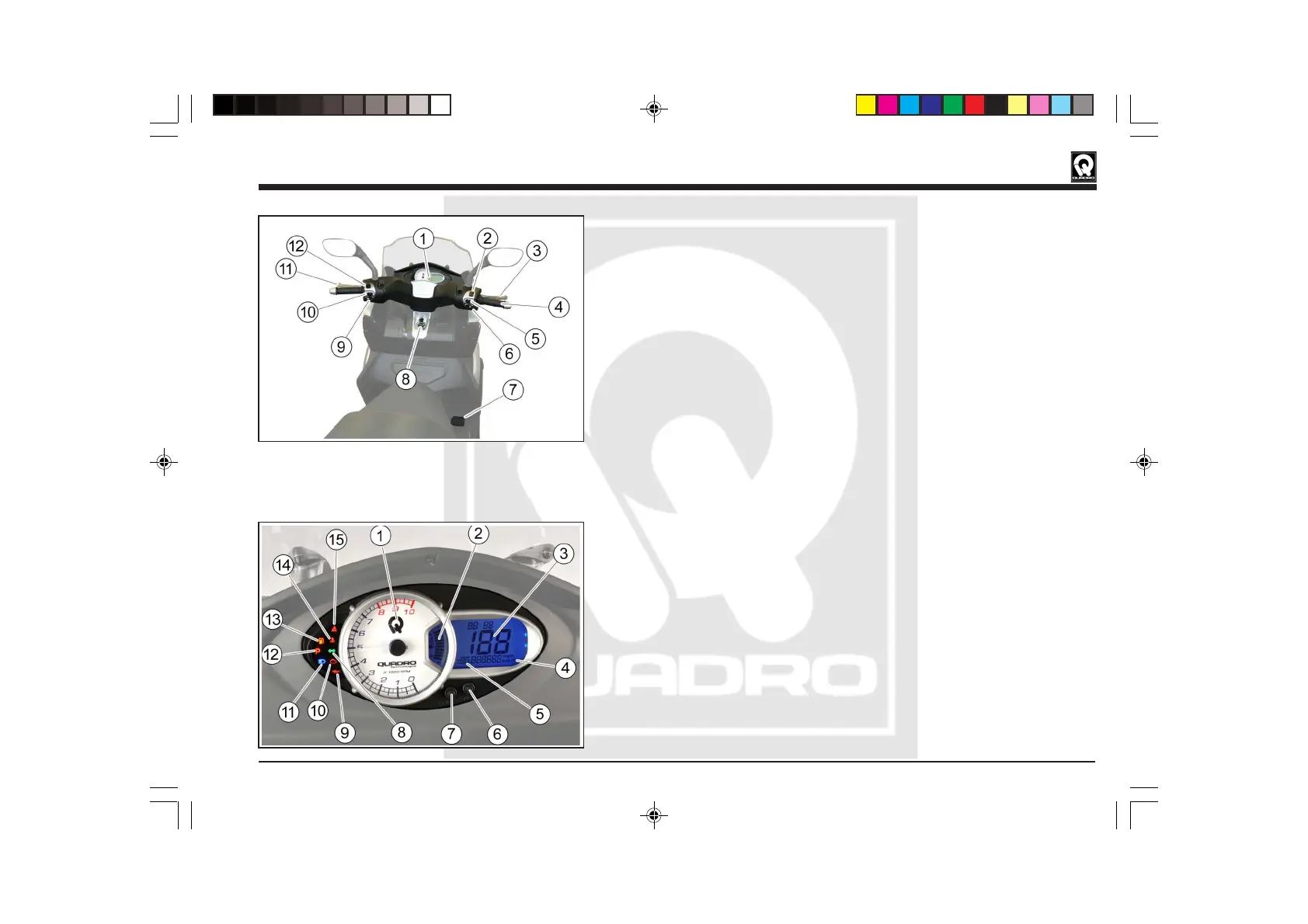

4.6 CONTROLS4.6 CONTROLS
4.6 CONTROLS4.6 CONTROLS
4.6 CONTROLS
11
11
1. Instrument panel
22
22
2. Hazard flashers
33
33
3. Front brake lever
44
44
4. Throttle grip
55
55
5. Headlight switch
66
66
6. Starter button
77
77
7. Combined braking pedal (front/rear)
88
88
8. Ignition switch
99
99
9. Horn button
1010
1010
10. Direction indicator switch
1111
1111
11. Combined braking lever (front/rear)
4.7 INSTRUMENT PANEL LAYOUT4.7 INSTRUMENT PANEL LAYOUT
4.7 INSTRUMENT PANEL LAYOUT4.7 INSTRUMENT PANEL LAYOUT
4.7 INSTRUMENT PANEL LAYOUT
11
11
1. Tachometer
22
22
2. Fuel level gauge/Cooling liquid
temperature gauge
33
33
3. Speedometer
44
44
4. Unit of measure (km/h / mph)
55
55
5. Odometer/Trip meters
66
66
6. ‘Adjust’ button
77
77
7. ‘Select’ button – toggle through fuel
and coolant liquid temperature gauge
88
88
8. Direction indicator light
99
99
9. Low oil pressure warning light
10.10.
10.10.
10. Engine management
malfunction indicator light
1111
1111
11. High beam indicator light
1212
1212
12. Parking brake lever light
1313
1313
13. Low fuel level indicator light
1414
1414
14. High coolant temperature
warning light
1515
1515
15. Hazard flashers light
