4.12 STEERING LOCK4.12 STEERING LOCK
4.12 STEERING LOCK4.12 STEERING LOCK

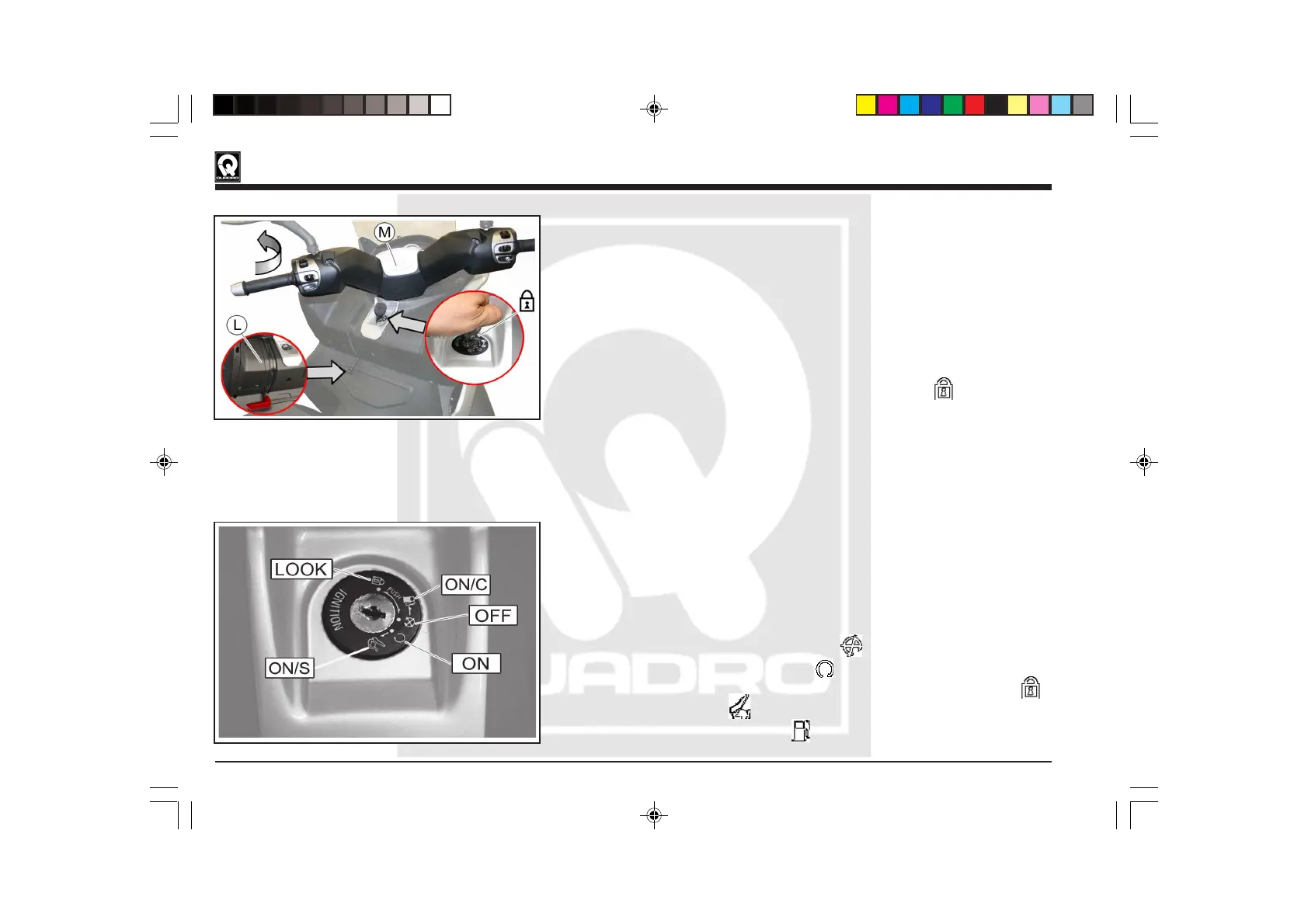

4.12 STEERING LOCK
To activate the steering lock, proceed as follows:
- With the handlebar straight, push the parking brake lever «L»
downwards.
- Turn the handlebar «M» fully to the left.
- Push and rotate the ignition key to the «LOCK» position
and remove it.
- The lever remains locked until the steering lock has been disengaged
and the handlebar has been brought to a straight position.
4.13 4.13
4.13 4.13
4.13
IGNITION SWITCHIGNITION SWITCH
IGNITION SWITCHIGNITION SWITCH
IGNITION SWITCH
The ignition switch is located at the centre of the inner leg shield
and is a 5 position key-operated switch. By rotating the key, it is
possible to turn the switch to any of the following positions:
«OFF»«OFF»
«OFF»«OFF»
«OFF»: the engine cannot be started.
«ON»«ON»
«ON»«ON»
«ON»: the engine can be started.
«LOCK»«LOCK»
«LOCK»«LOCK»
«LOCK»: the steering is locked and the engine may not be started.
«ON/S«ON/S
«ON/S«ON/S
«ON/S» seat opening.
«ON/C»«ON/C»
«ON/C»«ON/C»
«ON/C» fuel cap flap opening.
Fig.08_04Fig.08_04
Fig.08_04Fig.08_04
Fig.08_04
Fig.09_04Fig.09_04
Fig.09_04Fig.09_04
Fig.09_04
VEHICLE DESCRIPTIONVEHICLE DESCRIPTION
VEHICLE DESCRIPTIONVEHICLE DESCRIPTION
VEHICLE DESCRIPTION
