GETTING TO KNOW YOUR SCOOTER
6 - Integrated brake pedal (front and
rear).
7 - Storage compartments.
8 - Ignition key.
9 - Tilting lock/release lever.
10 - Parking brake lever
This chapter describes the functions and
systems your Quadro4 is equipped with.
Carefully reading the following pages will
provide you with the knowledge to make
the most of your scooter's potential.

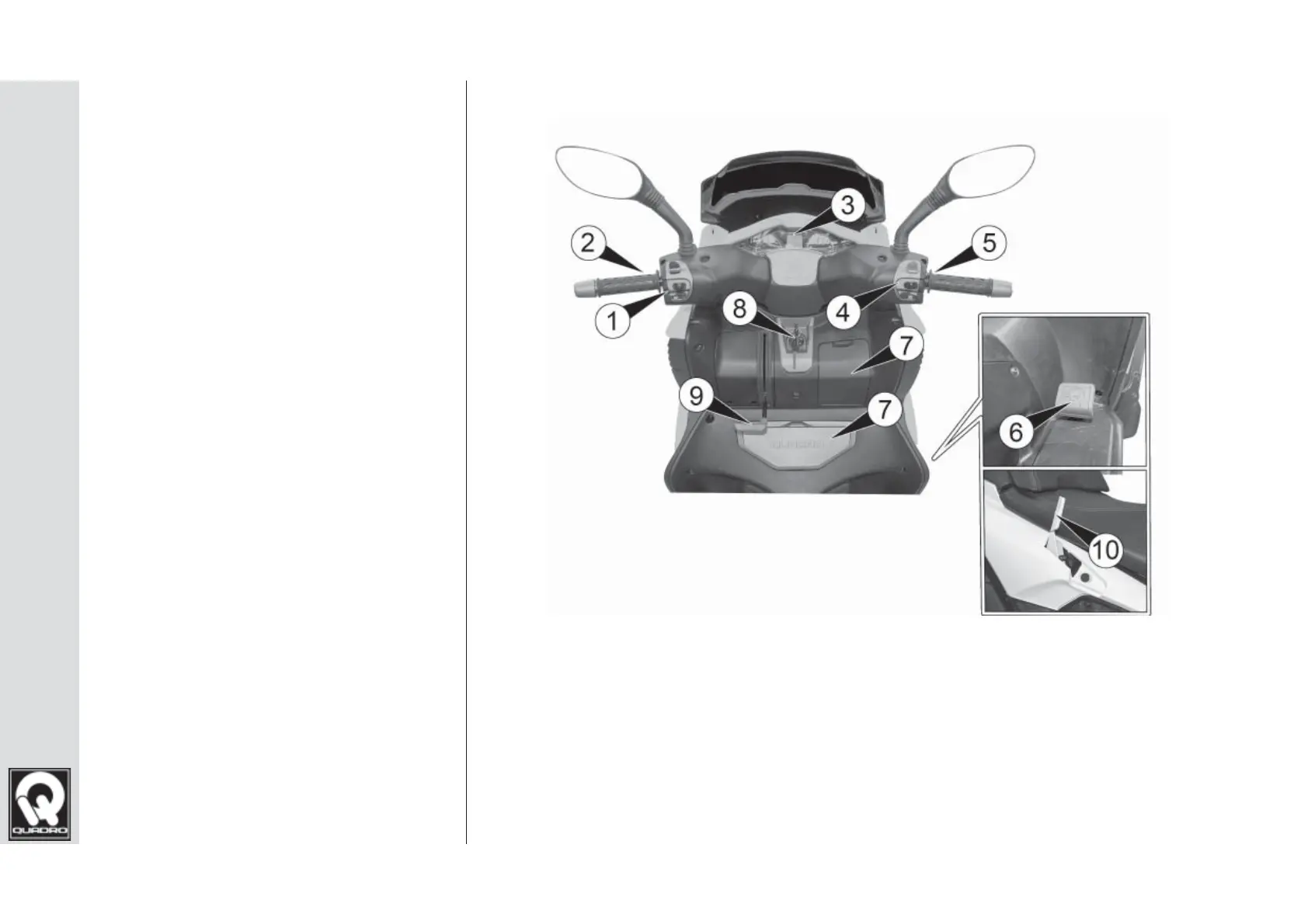

COMPONENT LOCATION
1 - Handlebar controls, left-hand side.
2 - Integrated brake lever (front and rear).
3 - Instrument panel.
4 - Handlebar controls, right-hand side.
5 - Brake lever (front).
fi g. 1
