20
GETTING TO KNOW YOUR SCOOTER

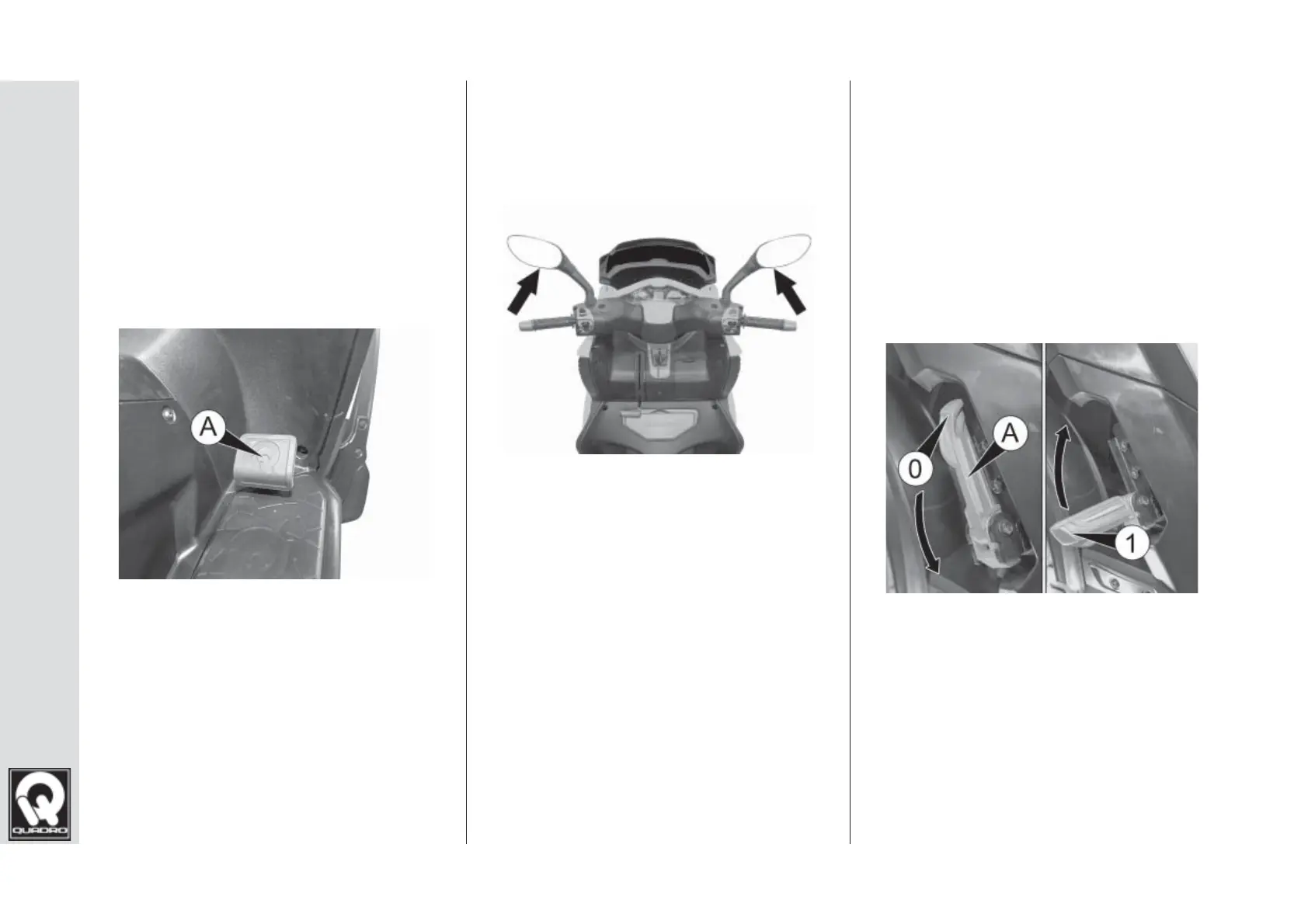

REAR-VIEW MIRRORS
To adjust the rear-view mirrors fi g. 13,
move them manually to the required
position.
fi g. 12
INTEGRATED BRAKE PEDAL
The integrated brake pedal A fi g.12 is
located on the right-hand driver footrest.
The integrated brake pedal can be used
as an alternative to the left-hand brake
lever, as it acts on both the front and rear
brakes.
fi g. 13
REAR FOOTRESTS
To open it, press the upper part of the
footrest A fi g. 14; the footrest will move
from position 0 to position 1.
To close the footrest, lift it by the outside
part and press it until you hear it click into
place.
fi g. 14
