Qualitrol 118 Series User Manual

Electronic Temperature Monitor
ECN-27644 14 July 7, 2010

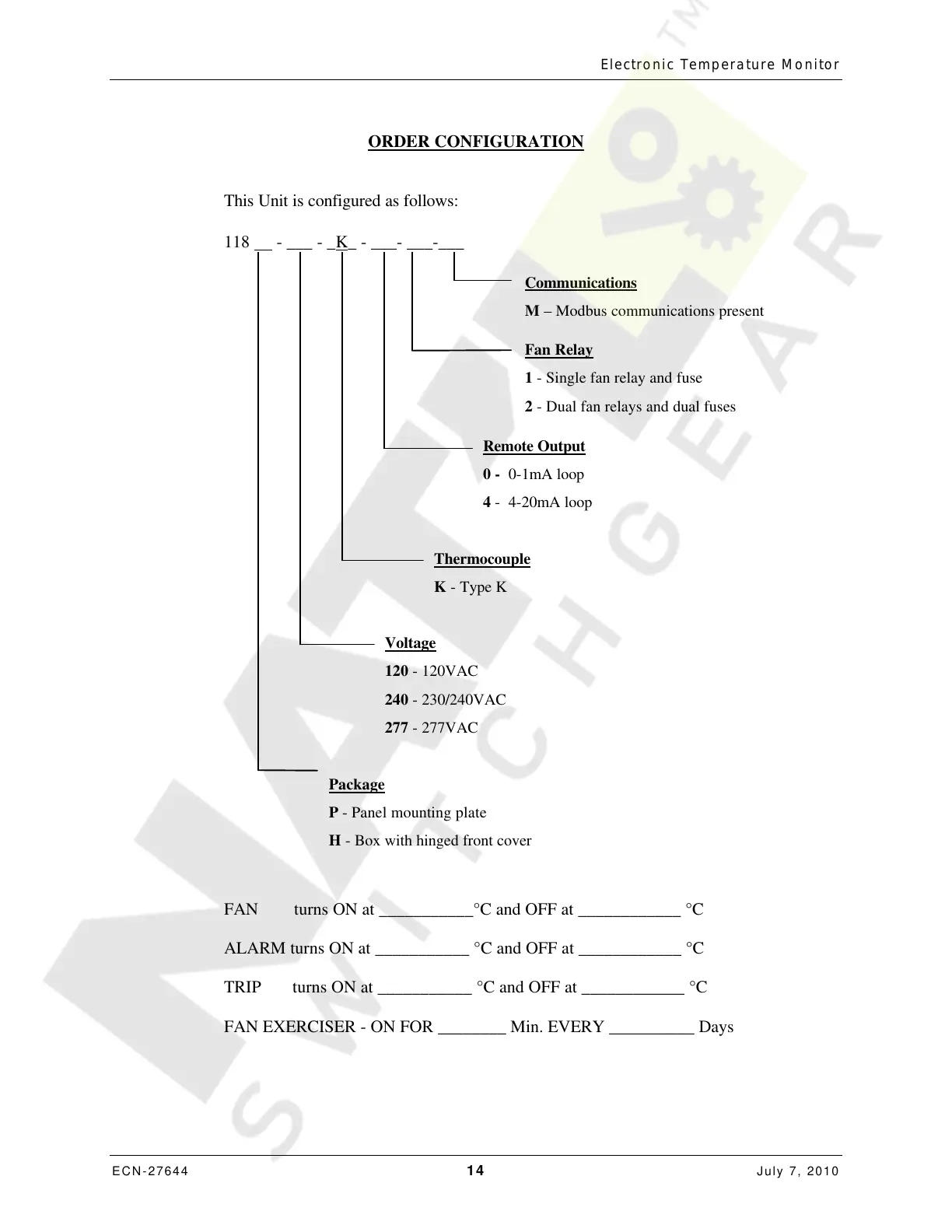

ORDER CONFIGURATION
This Unit is configured as follows:
118 - ___ - _K_ - ___- ___-___
Communications
M – Modbus communications present
Fan Relay
1 - Single fan relay and fuse
2 - Dual fan relays and dual fuses
Remote Output
0 - 0-1mA loop
4 - 4-20mA loop
Thermocouple
K - Type K
Voltage
120 - 120VAC
240 - 230/240VAC
277 - 277VAC
Package
P - Panel mounting plate
H - Box with hinged front cover
FAN turns ON at ___________°C and OFF at ____________ °C
ALARM turns ON at ___________ °C and OFF at ____________ °C
TRIP turns ON at ___________ °C and OFF at ____________ °C
FAN EXERCISER - ON FOR ________ Min. EVERY __________ Days
