Qualitrol 118 Series User Manual

Electronic Temperature Monitor
ECN-27644 5 July 7, 2010
INSTALLATION AND WIRING
Mounting of the Temperature Monitor
The 118 mounts in a rectangular cutout in a panel and is secured by four (4) ¼”
bolts. See Figure 1; 118 Dimensions.

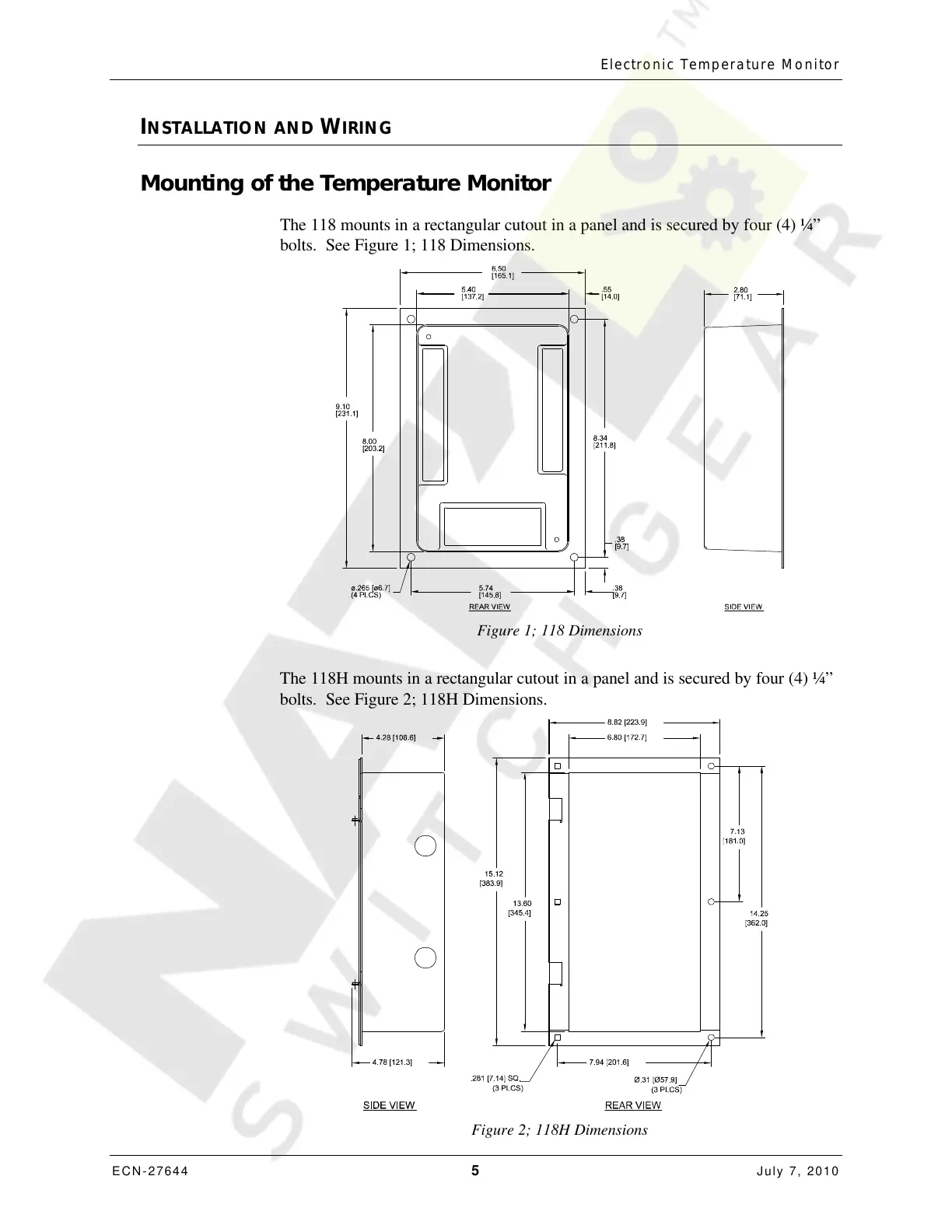

Figure 1; 118 Dimensions
The 118H mounts in a rectangular cutout in a panel and is secured by four (4) ¼”
bolts. See Figure 2; 118H Dimensions.
Figure 2; 118H Dimensions
