Installation Instructions:
Mount Kit for Meeting Computer System GQE10C

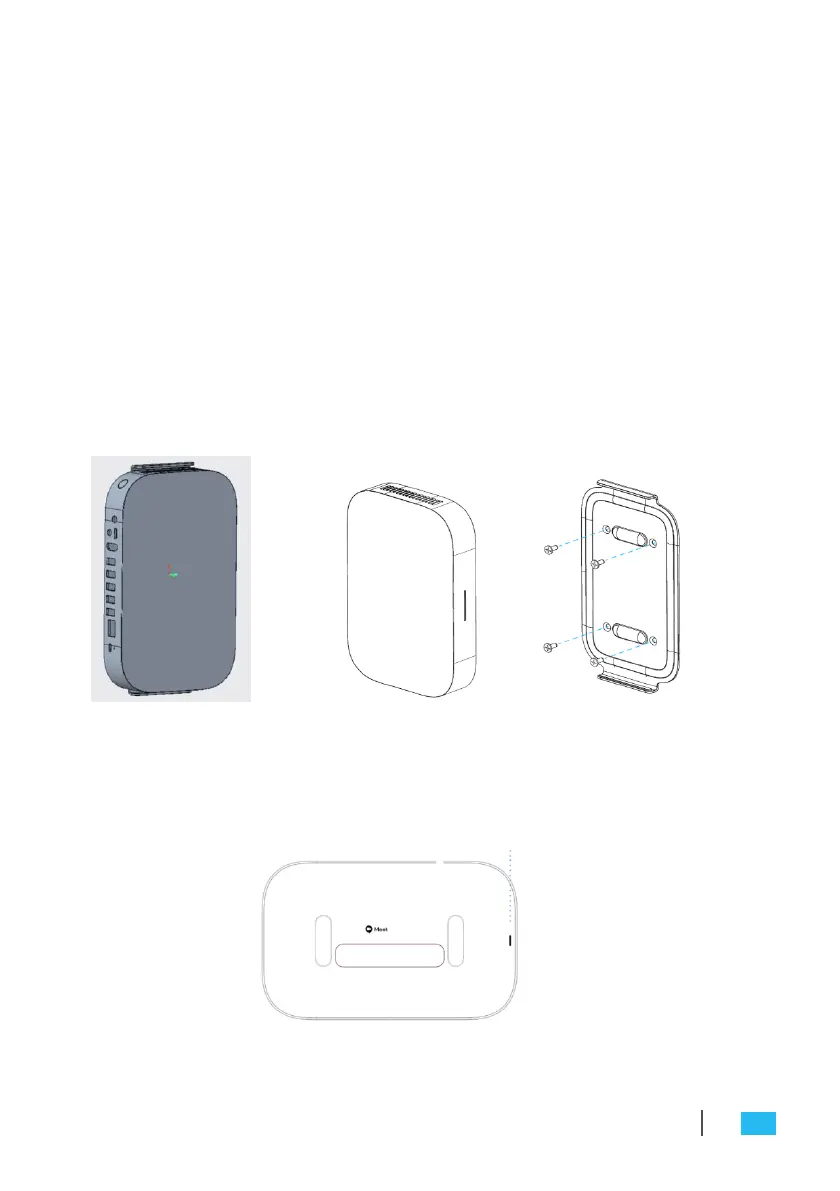

Installing Wall Mount/Installation support
ATTENTION: The equipment shall not be mounted higher than 2m
from the floor or shall not be mounted higher than 75cm from a flat
surface.
●
Screw wall mount onto wall
(Screw is self-tapping M3.5 24mm long, flat countersunk head)
NOTE: Make sure your display device supports VESA mounting.
Find the ‘Pill Shape’ marking to orientate the box so that the
exhaust/fan faces upwards
●
The device will naturally be magnetized onto ‘wall mount’ plate
●
Manually adjust if needed for a more secure fit
●
GETTING STARTED
17
To Next Page
