Water Pressure Drop (Cont'd)
EVAPORATOR CURVE CHILLER MODEL
A QTC2015T
B QTC2020T
B QTC2025T
B QTC2030T
C QTC2035T
D QTC2040T
C QTC2045T

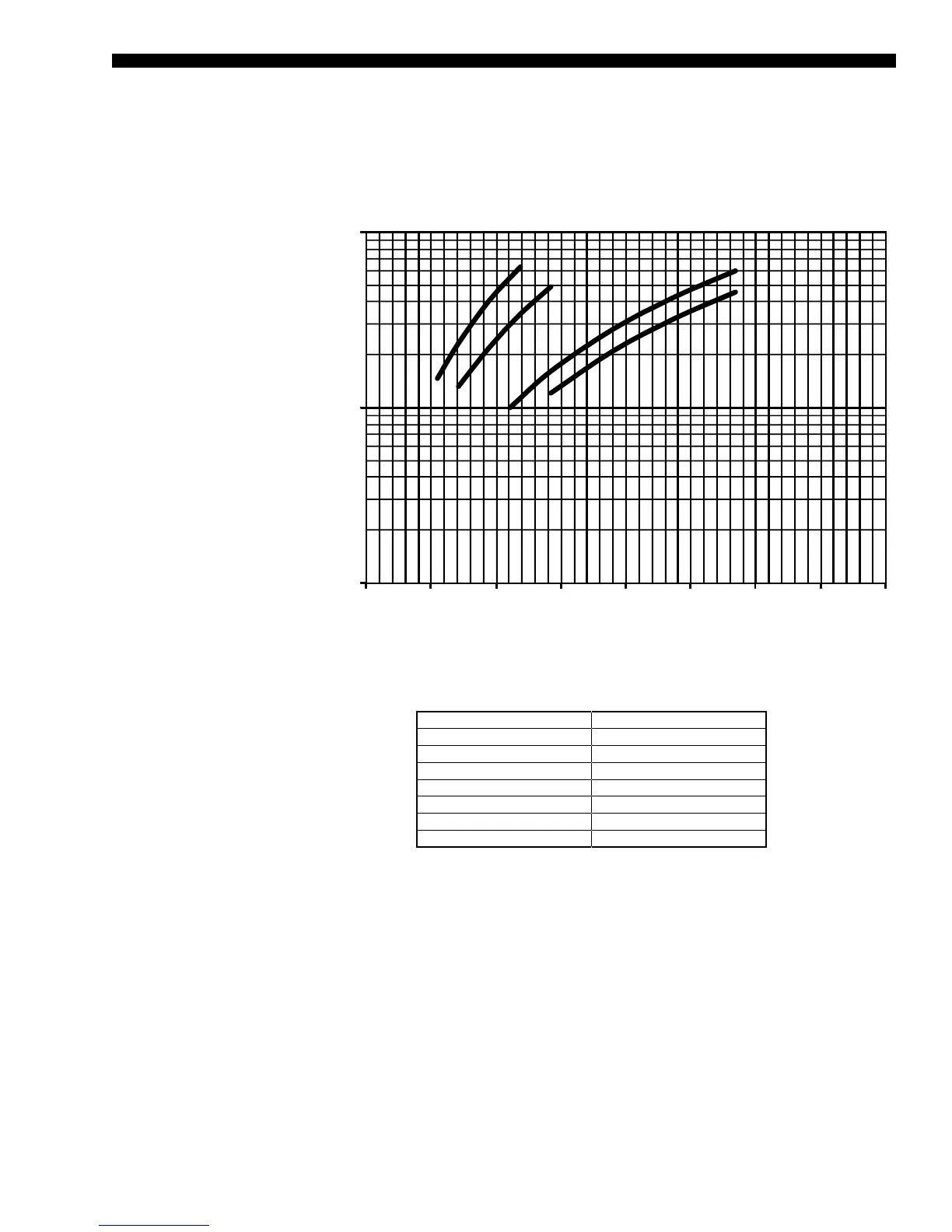

QTC2 SI EVAPORATOR PRESSURE DROP CURVE
WATER FLOW RATE (l/s)
WATER PRESSURE DROP (kPa)
LD18668
