Quantech QTC2015T User Manual

FORM QTC2-eg1 (515)
QUANTECH
23
QTC2020T

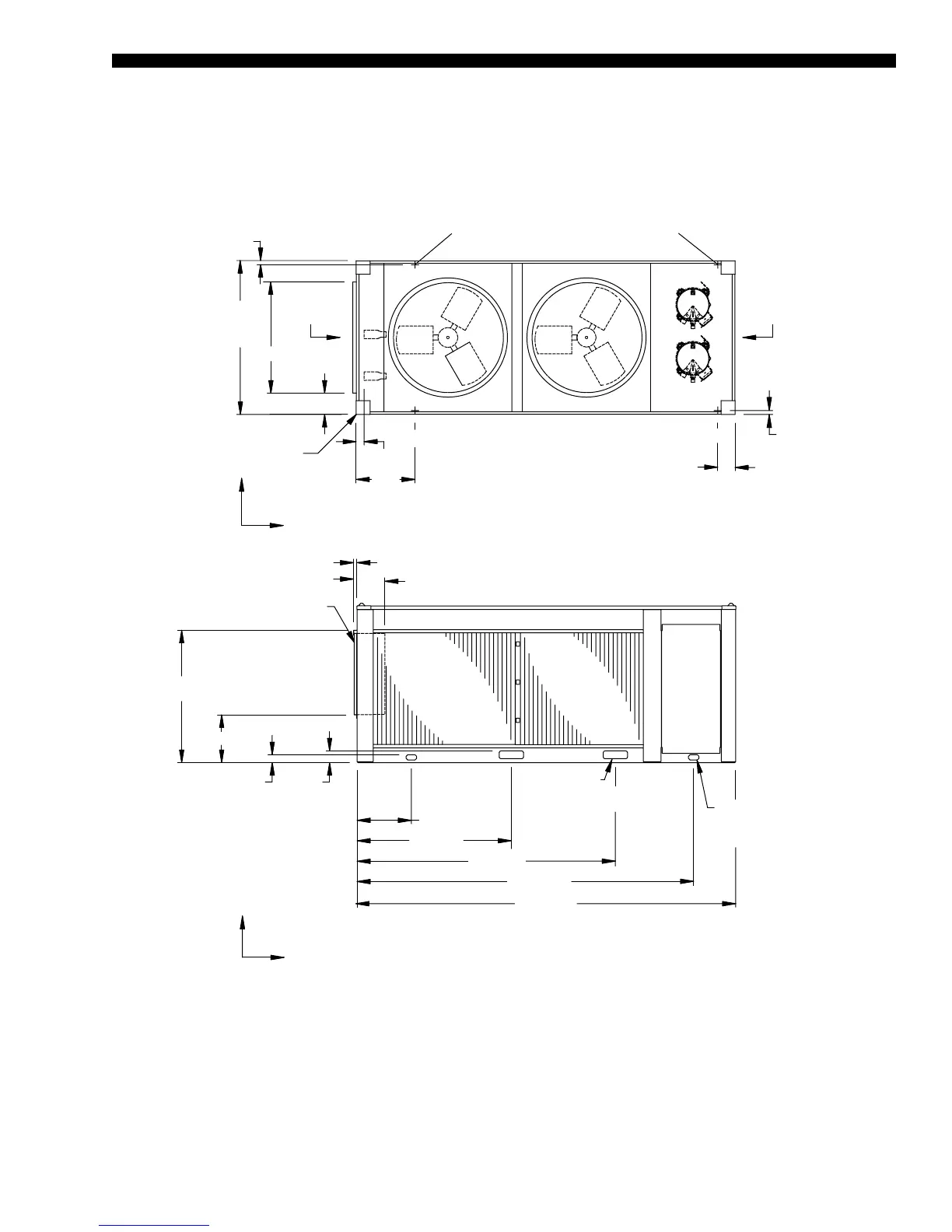

Unit Dimensions - English (Cont'd)
TOP VIEW
9/16" DIA MOUNTING HOLES(typ)
COMPR
END
1 1/16"
5"
17"
2 1/4"
ORIGIN
Y
C
G
X
44 3/8"
32 1/8"
6 1/8"
1 1/16"
CONTROL
PANEL
END
END CAP
WIDTH
FRONT VIEW
109 3/16"
RIGGING HOLES
(2) 3.0 X 1.50
BOTH SIDES
15 5/8"
44 1/2"
74 1/2"
97 1/8"
(2) 7.0 X 2.25
FORKLIFT HOLES
BOTH SIDES
C
G
X
Z
2 1/4"
3 3/8"
13 3/4"
38 3/16"
9 1/16"
1"
CONTROL
PANEL
LD18672
