QUANTECH
FORM QTC2-eg1 (515)
32
9 7/8”
25 3/16”
62 5/8”
61 7/8”
LD18681

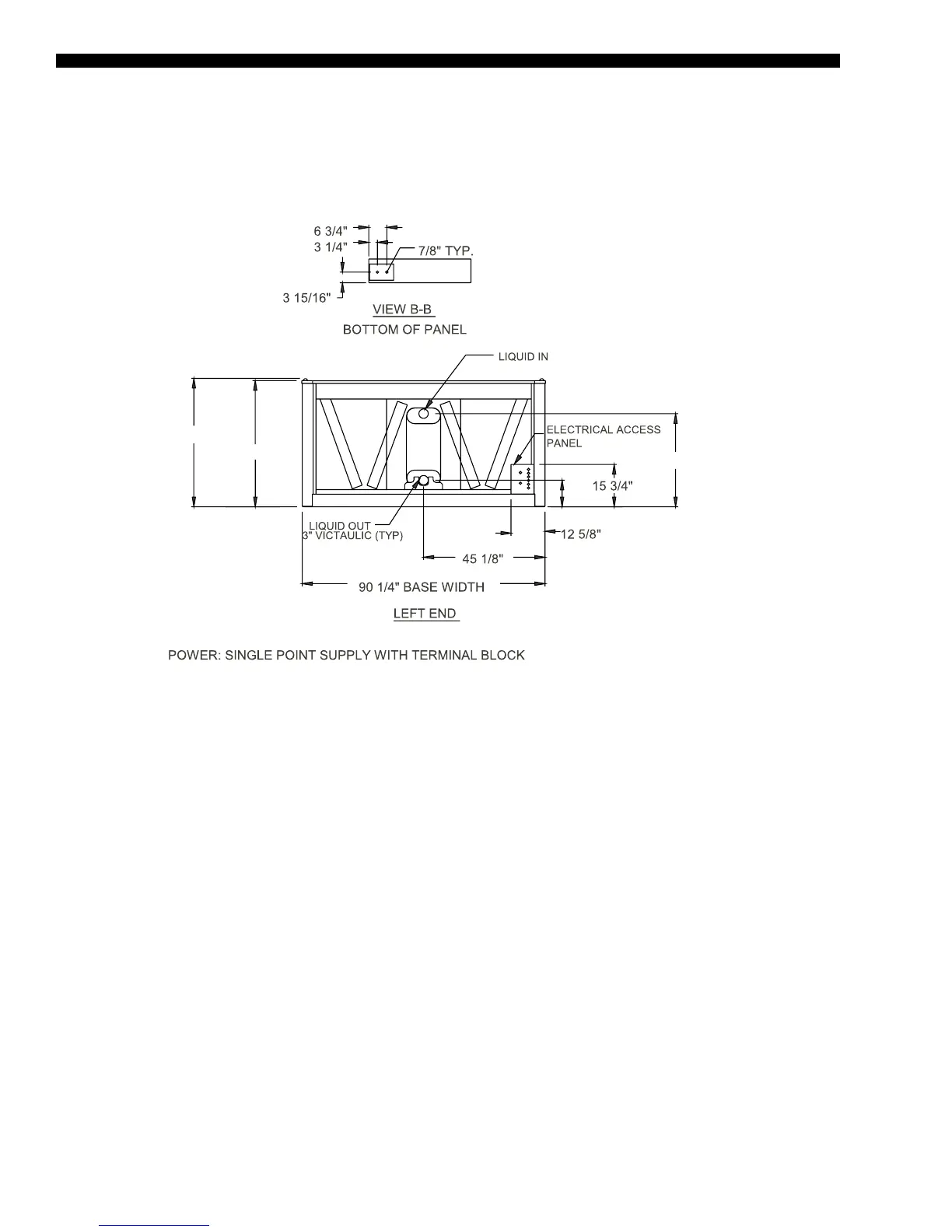

Unit Dimensions - English (Cont'd)
QTC2045T
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airowpatternsandpossiblediminishedperformance.Theunitcontrolswilloptimizeoperationwithoutnuisancehigh-pressuresafetycut-outs;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higherthanonspringisolators.Recommendedminimumclearances:Sidetowall–6';reartowall–6';controlpaneltoendwall–4'0'';
top–noobstructionsallowed;distancebetweenadjacentunits–10'.Nomorethanoneadjacentwallmaybehigherthantheunit.
