FORM QTC2-eg1 (515)
QUANTECH
43

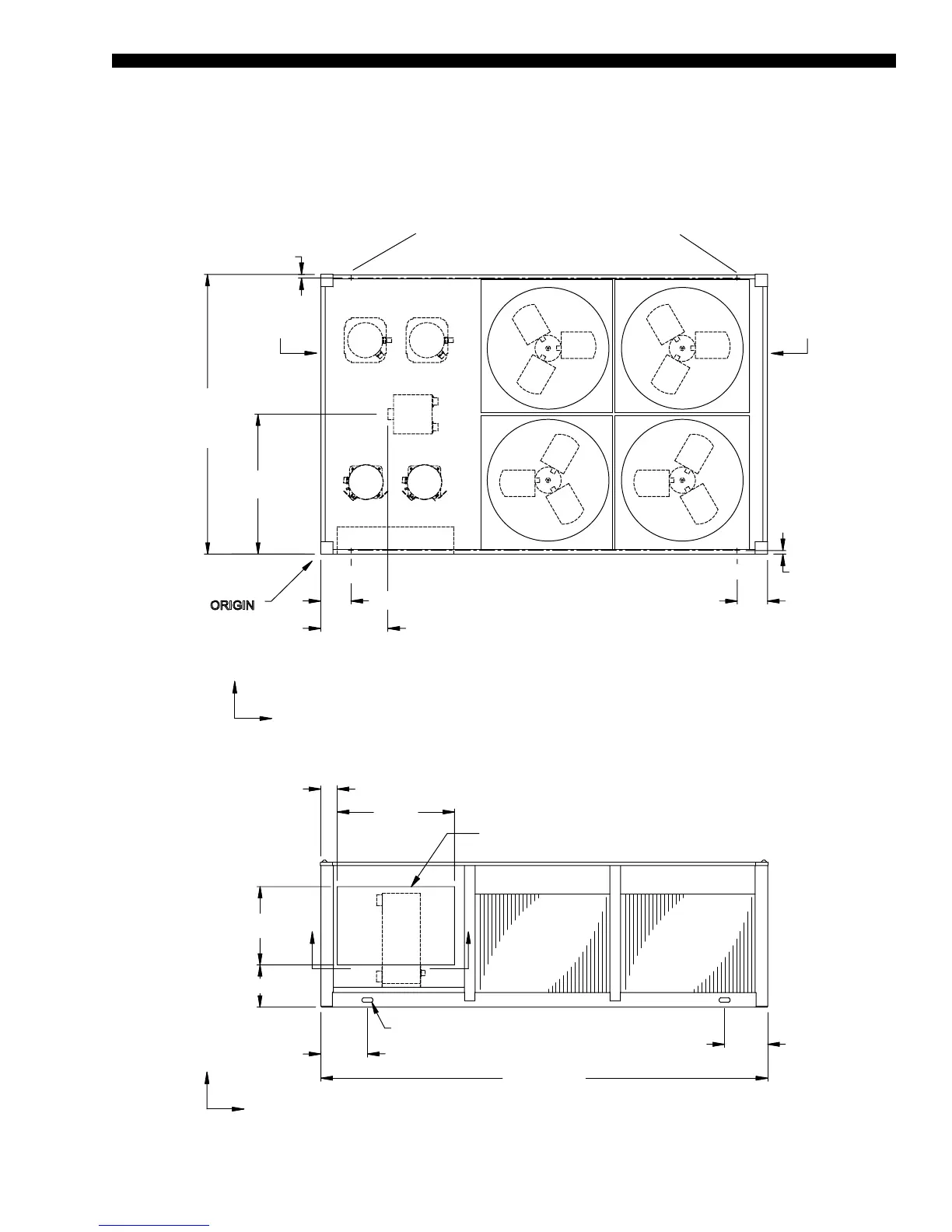

Unit Dimensions - Metric (Cont'd)
QTC2035T
2301
1146
Y
C
G
X
28
ORIGIN
END CAP
WIDTH
425
TOP VIEW
249
28
249
14 DIA MOUNTING HOLES(typ)
3678
383
355
TWO LIFTING HOLES
BOTH SIDES
FRONT VIEW
C
G
X
Z
965
135
645
346
B
B
COIL
END
COOLER
END
CONTROL PANEL
LD18698
