Application Data (Cont'd)

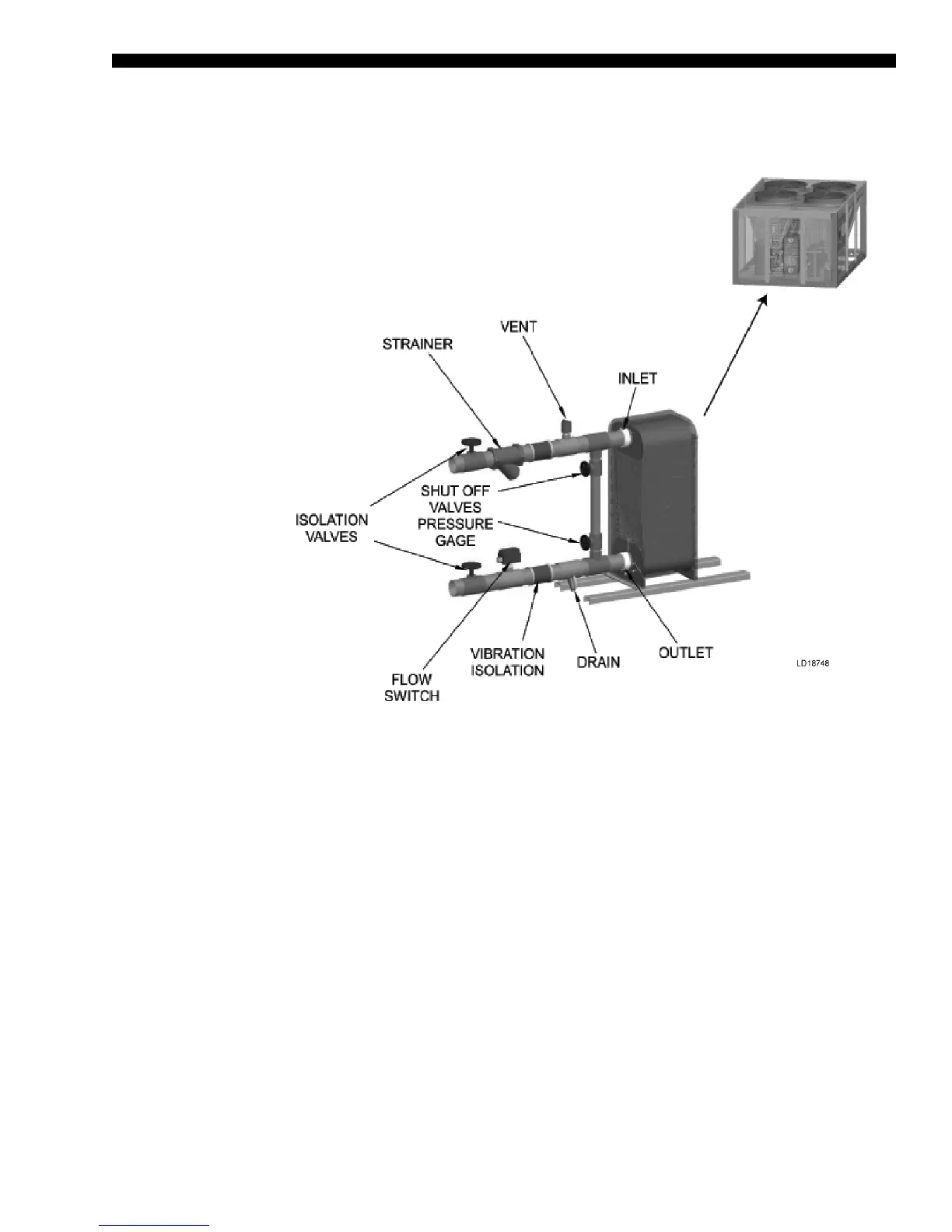

Typical Piping for Brazed-Plate Coolers
Notes:
1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation
ensures rated performance, reliable operation and ease of maintenance.
2. Piping and wiring shown is for reference use only and is not in accordance with any national or local
standards.
3. All wiring and piping must comply with applicable local and national codes.
4. All wiring and piping must follow standard piping techniques as discussed in the ASHRAE handbook.
5. A strainer with a mesh size between .5 and 1.5 mm is recommended upstream of the heat exchanger to
prevent clogging.
