1
2 3
Disconnect battery from charger board.
Release battery strap.
BATTERY HANDLING WARNINGS:
• Dispose of used batteries promptly.
• Keep away from children.
• Do not disassemble.
• Do not dispose of in fire.

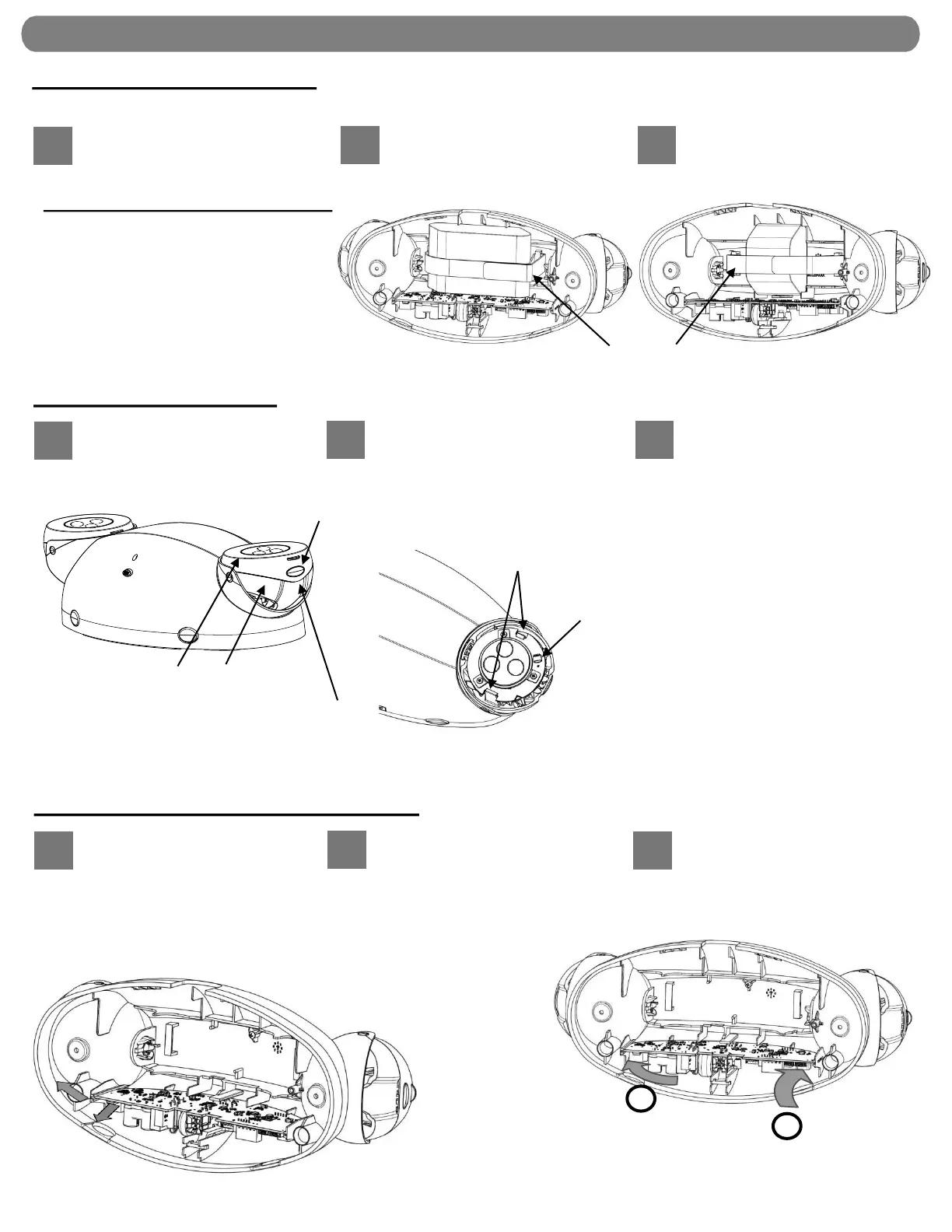

BATTERY REPLACEMENT
Unit features and battery details shown may vary. See also “Battery Connection”, page 3.
LAMP REPLACEMENT
page 5
TESTING and MAINTENANCE
CHARGER BOARD REPLACEMENT
Replace battery, secure the strap
snugly, and reconnect to the charger
board.
Re-assemble the unit (see also
step 5, page 3).
1
2 3
Remove lamp bezel as shown
below.
Gently bend the snap at each side of
the collar to release the lamp
assembly. Unplug the connector from
the lamp assembly.
Route the lamp wires through
one of the center spaces under
the new lamp assembly and
replace it firmly under the snaps
on the collar, making sure the
wires are not pinched. Plug the
lamp connector and replace the
bezel.
1
2
3
NiCd Battery (standard)
Battery Strap
LiFePO4 Battery (LTP, HO, EHO)
With the unit oriented as in the below
view, flex the channel at the left end
of the charger board outward to
release and remove it. Unplug the
battery, lamps, and other
connections.
Re-connect all components to the
new charger board, routing wires
as before. For insertion of PCB,
insert right side of PCB first,
followed by left side (click should
be heard).
Make sure all wires are routed so
as not to interfere with proper
assembly of the housing onto the
mounting plate. Re-assemble the
unit (see also step 5, page 3).
Connector
Release snaps gently
Collar
collar button
Bezel
Carefully flex this edge free from collar button
For Velcro strap: Release and reuse
1
2
