Quantum QG-5000 - Interconnection Diagram

Chapter 6 Diagrams
HF Series X-ray Generator - Service Manual Revision W
Quantum Medical Imaging, LLC 6-19

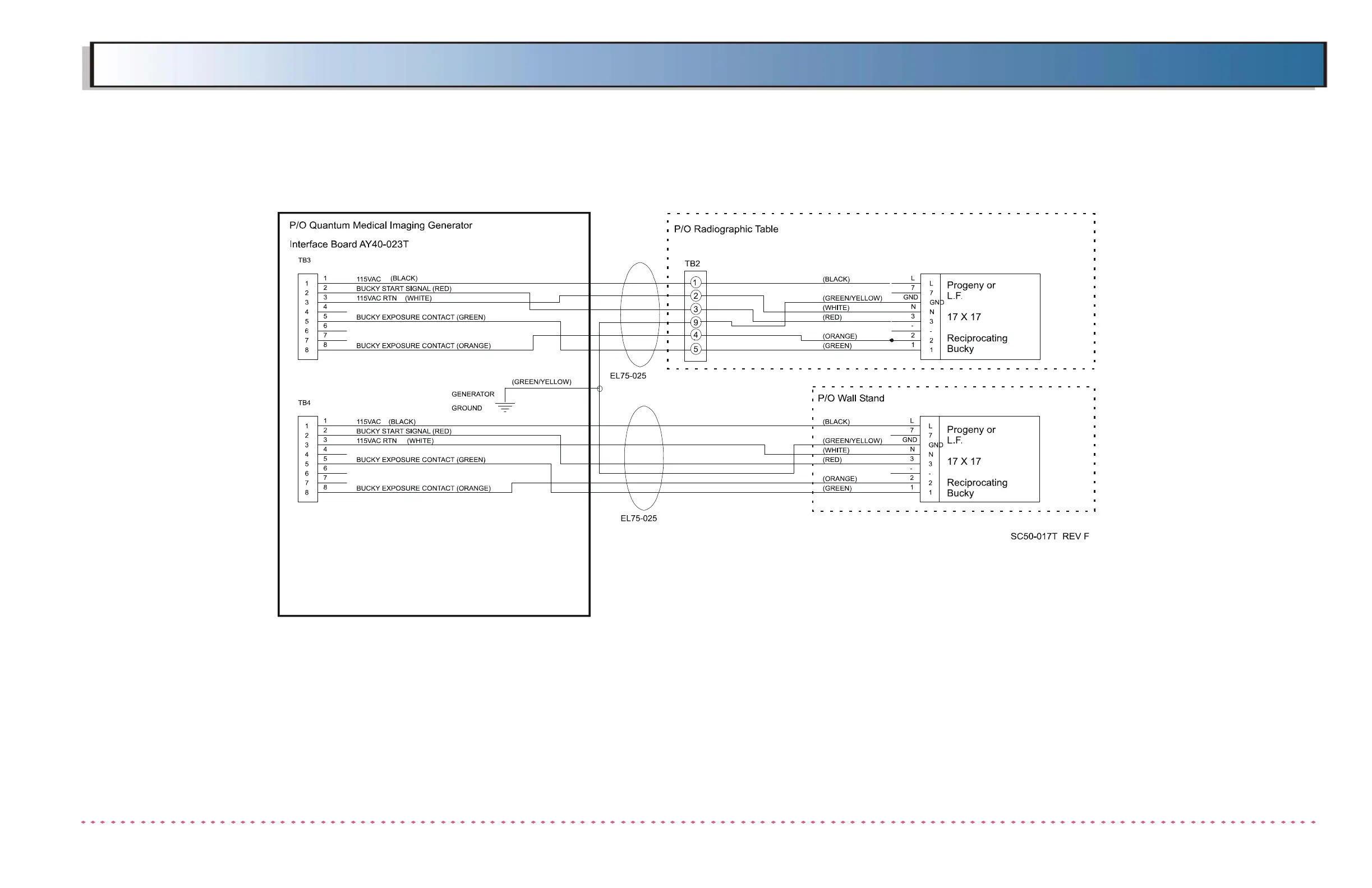

Figure 6-12. 17 x 17 Progeny and L-F Bucky
Interconnection Diagram
NOTE:
ON SYSTEMS USING FOUR (4) WIRE MULTI-CONDUCTOR BUCKY
CABLE, CONNECT "BUCKY ON" SIGNAL (RED WIRE) TO LINE (L)
TERMINAL ON BUCKY. (THE 115VAC (BLACK WIRE) CONNECTION
