Ion Chambers Tab
The Ion Chambers Tab (see Figure D-9), displays available ion chambers
interfaced to the HF Series X-ray generator, including configuration settings
for each.

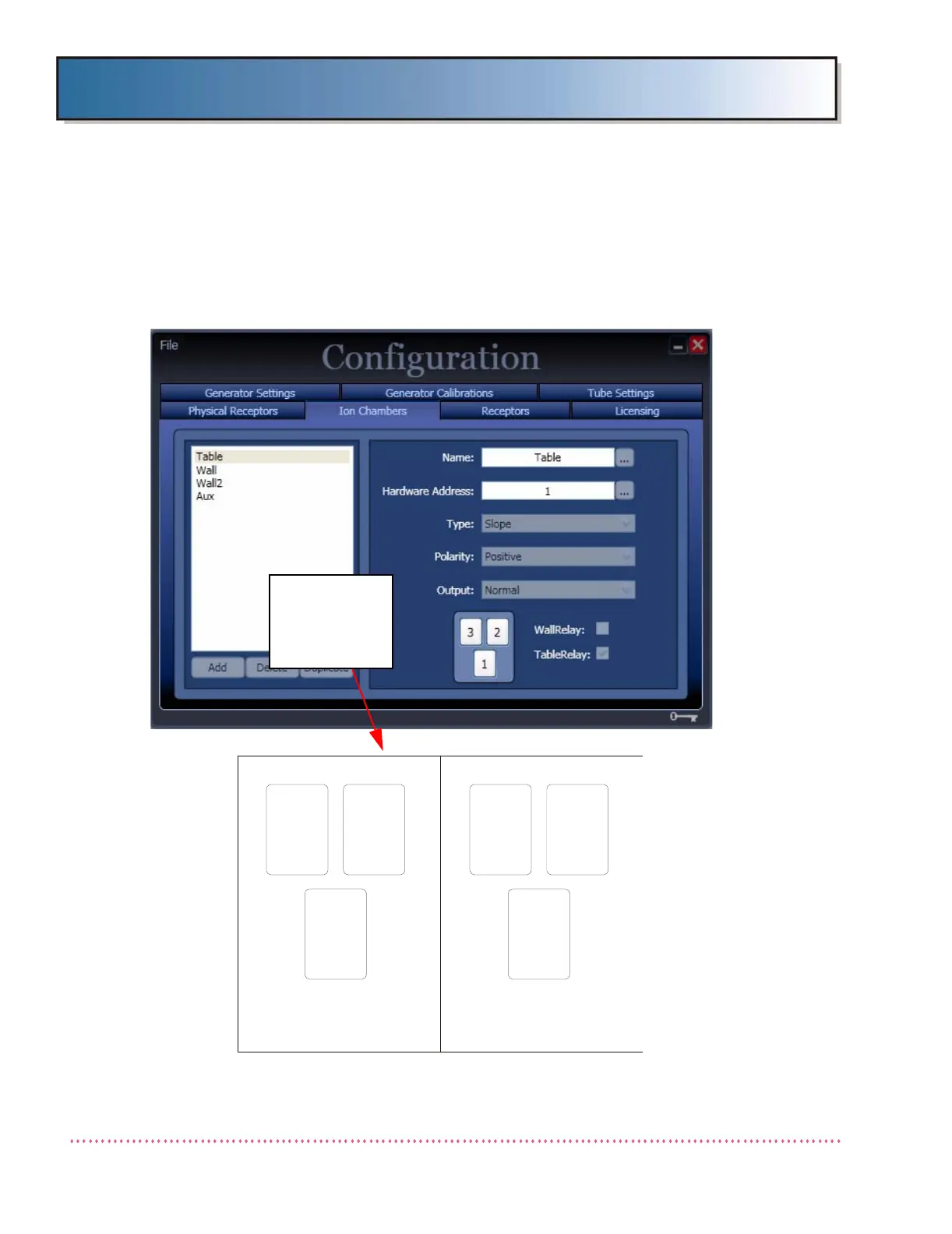

Figure D-9. Configuration Menu - Ion Chambers Tab
DEFAULT RIGHT LOAD
DETECTOR ASSIGNMENTS
AC
B
23
1
DEFAULT LEFT LOAD
DETECTOR ASSIGNMENTS
AC
B
32
1
PRESS THESE
BUTTONS TO
CONFIGURE
DETECTORS AS
SHOWN BELOW
