11 | www.qntmnet.com
Upgrade QNOS version by either downloading from the cloud or by selecting
manually from respective location and upgrade or click “Skip Upgrade” to move
further.
The user will turn to a page where the user has to select the site and AP group.

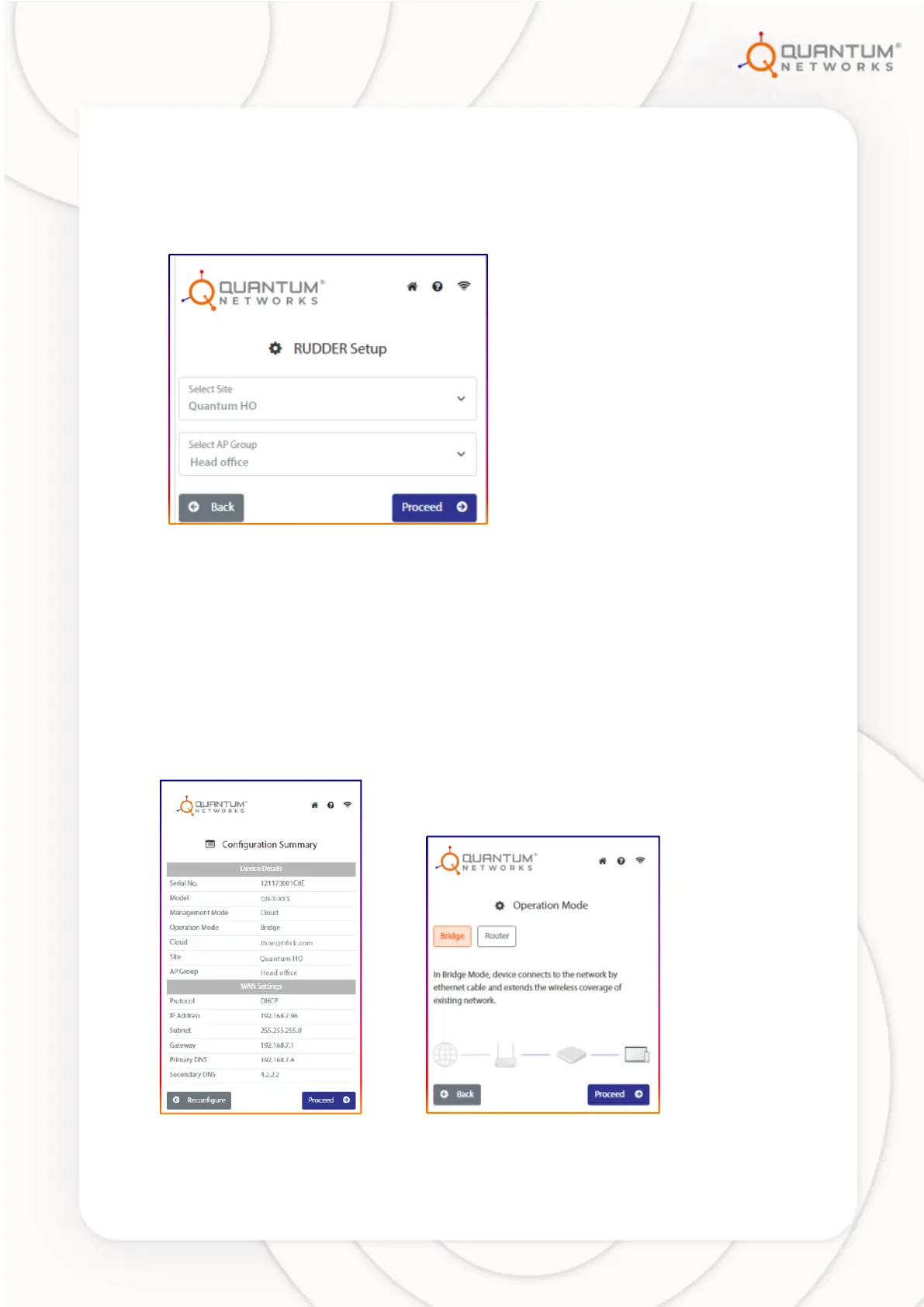

Figure 7
Select RUDDER site and AP Group where Access Point’s needs to be added and
click “Proceed”.
o If the selected site is already having another Access Point, it will automatically
configure AP in a bridge mode and will turn the user on the summary page after
clicking “Proceed”. (Figure 8)
o If this is the first Access Point for the selected site – the user will turn on the page,
where the user can select Access Point Operation mode as Bridge or Router.
(Figure 9)
Figure 8 Figure 9
Bridge
To Next Page
