Install the 12-Drive and 24-Drive Chassis Rails
QX and QXS 12- and 24-Drive Rackmount Install Guide 15

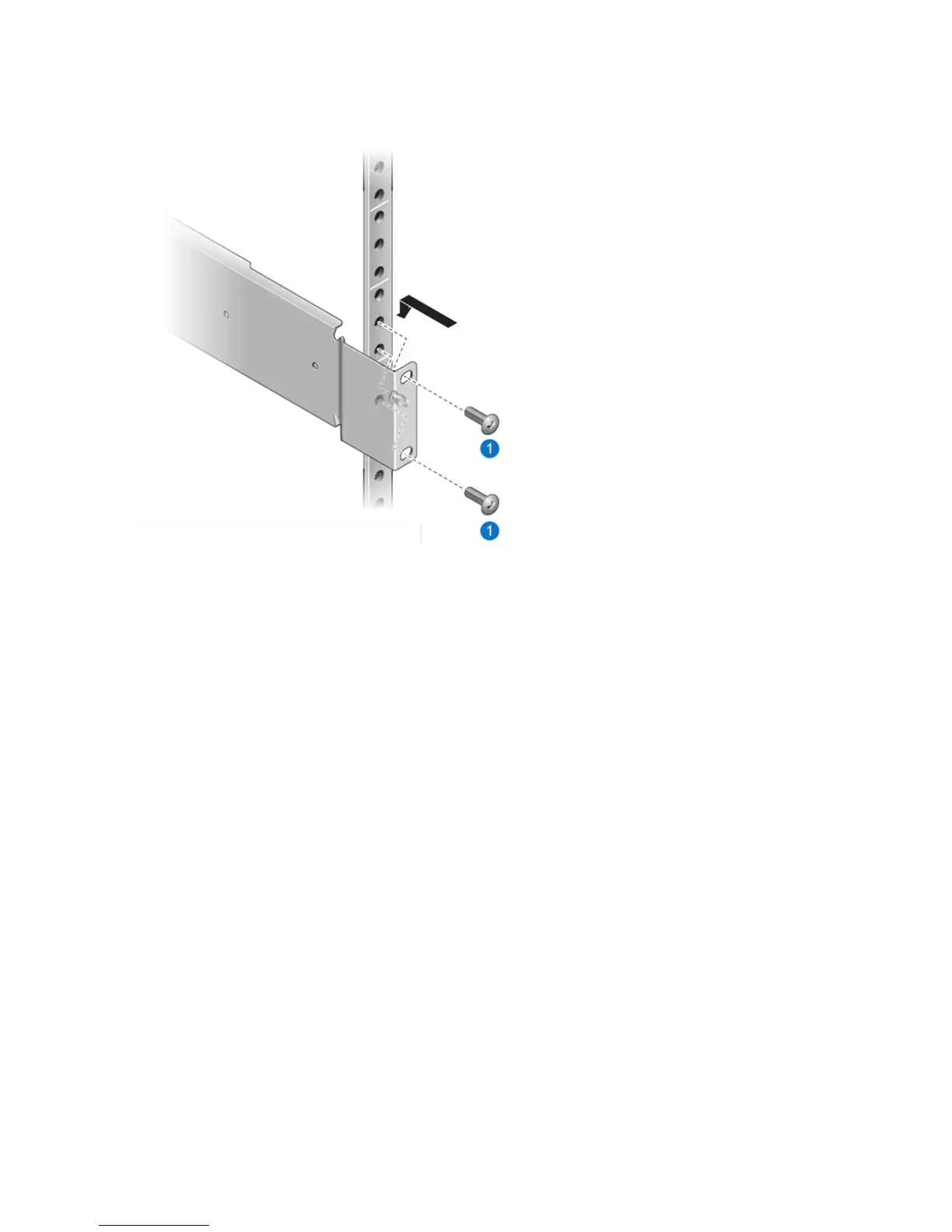

Figure 14: Attaching rear rail assembly
1. Screw: Code C - P/N:01-00000264-00-01 or 01-00000267-00-01 or 01-00000269-00-01
