QXS-412/424 Next steps
QX and QXS 12- and 24-Drive Rackmount Install Guide 19

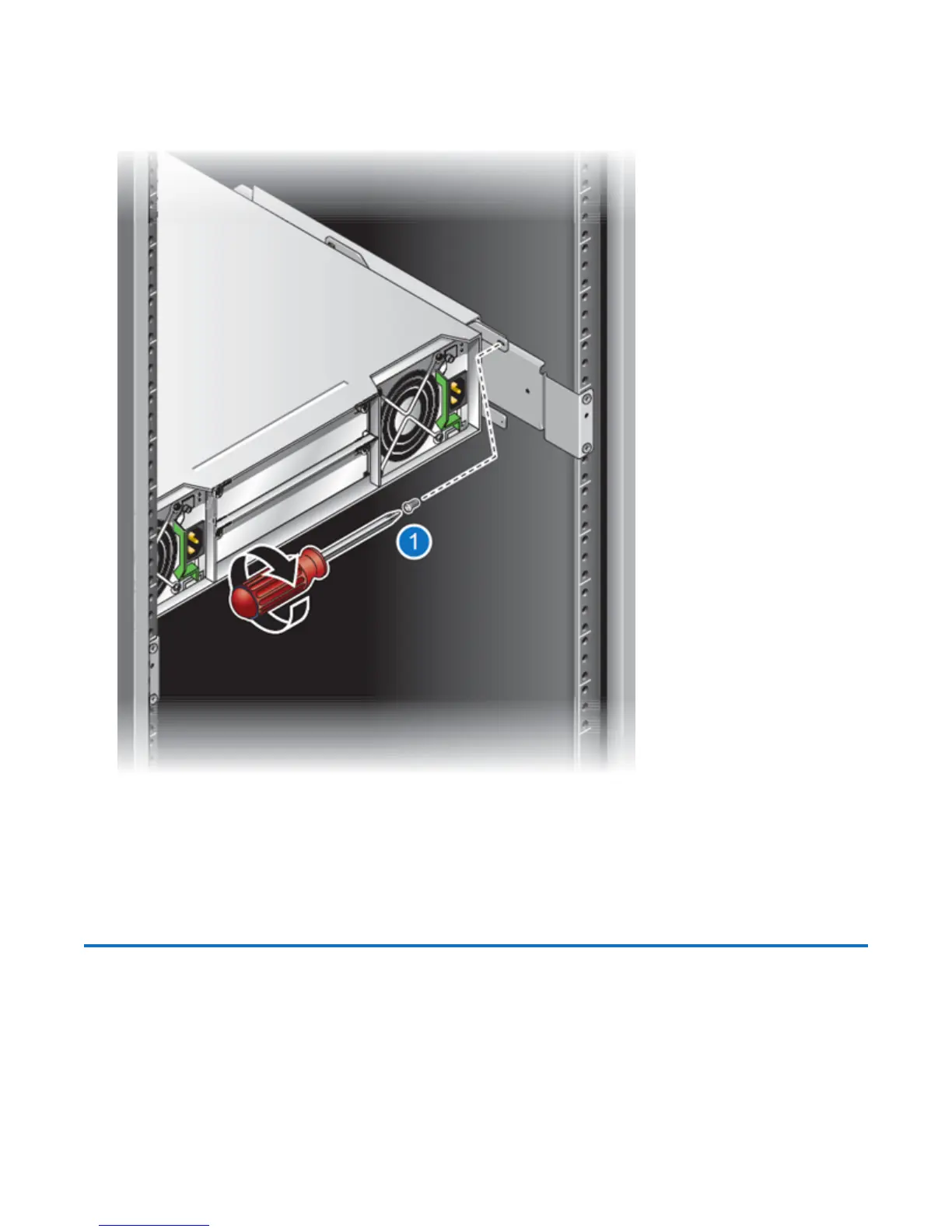

Figure 18: Securing chassis to horizontal rail
1. Screw: Code E - P/N:01-00000522-00-01
4. Repeat steps 1-3 for each chassis.
QXS-412/424 Next steps
Perform the following steps to finish the installation of the storage system components:
1. Install any additional drives and options per instructions provided with the options.
2. Install the chassis bezel as described in the Bezel Installation Guide.
