Quantum QXS 12G Series Drive Rackmount Install Guide

Attach QXS-412/424 Side Brackets
QX and QXS 12- and 24-Drive Rackmount Install Guide 4
Attach QXS-412/424 Side Brackets
Using a total of four #8-32 x 3/16 flathead Phillips screws (two per bracket), attach the side bracket to rear
mounting holes on each side of the chassis.

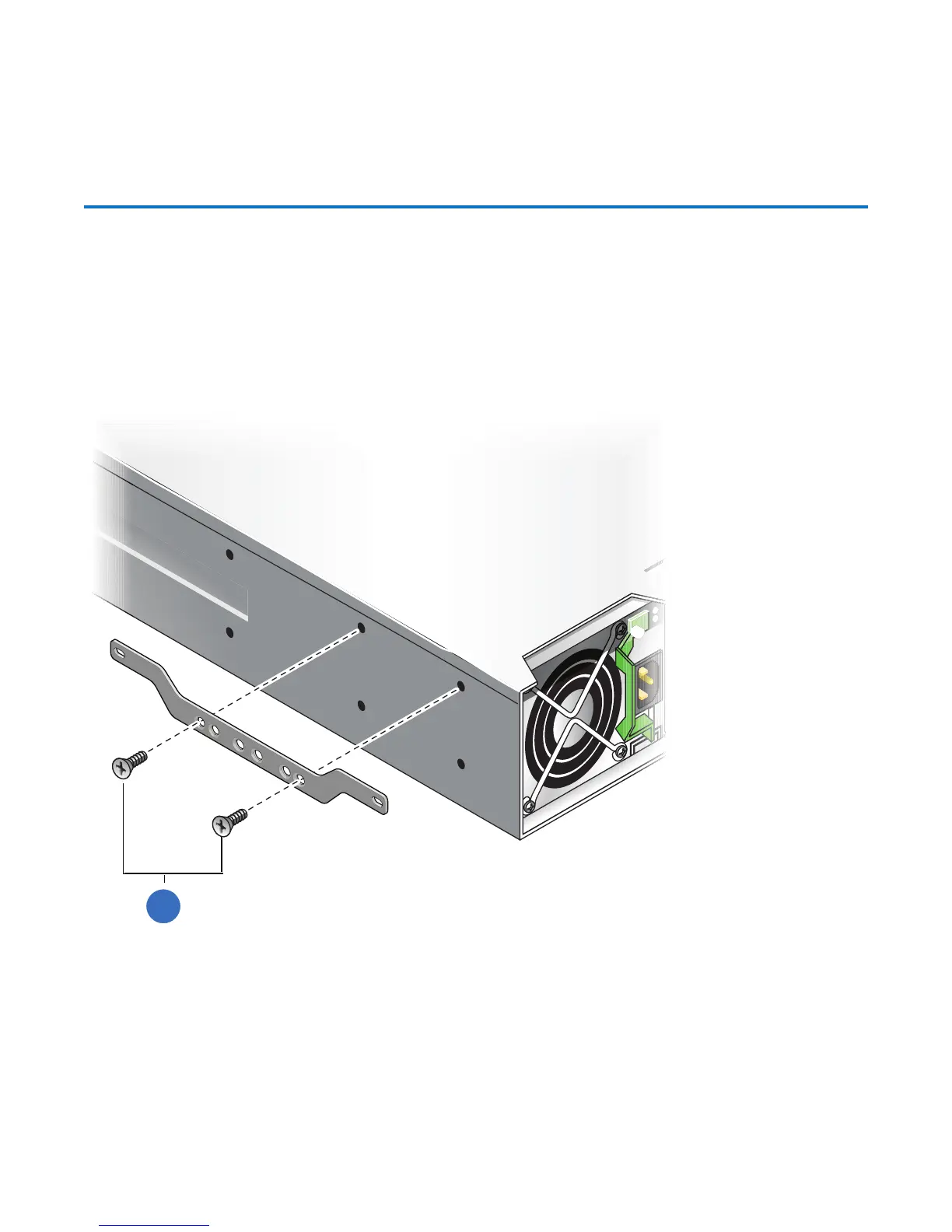

The illustration below shows bracket alignment for a 12-drive chassis.
Figure 1: Attaching bracket to 12-drive chassis
1
1. Screw: Code A - P/N:01-00000142
