Install the 12-Drive and 24-Drive Chassis Rails
QX and QXS 12- and 24-Drive Rackmount Install Guide 14
8. Use one of the following, as appropriate, to attach the front of the rail assembly to the front of the rack:
l 1 #10-32 x 5/8 flathead Phillps screw
l Appropriate 5 or 6 mm flathead Phillips screw
In a rack with pre-tapped holes, push the rails outward to maximize the opening width while
tightening the screws.

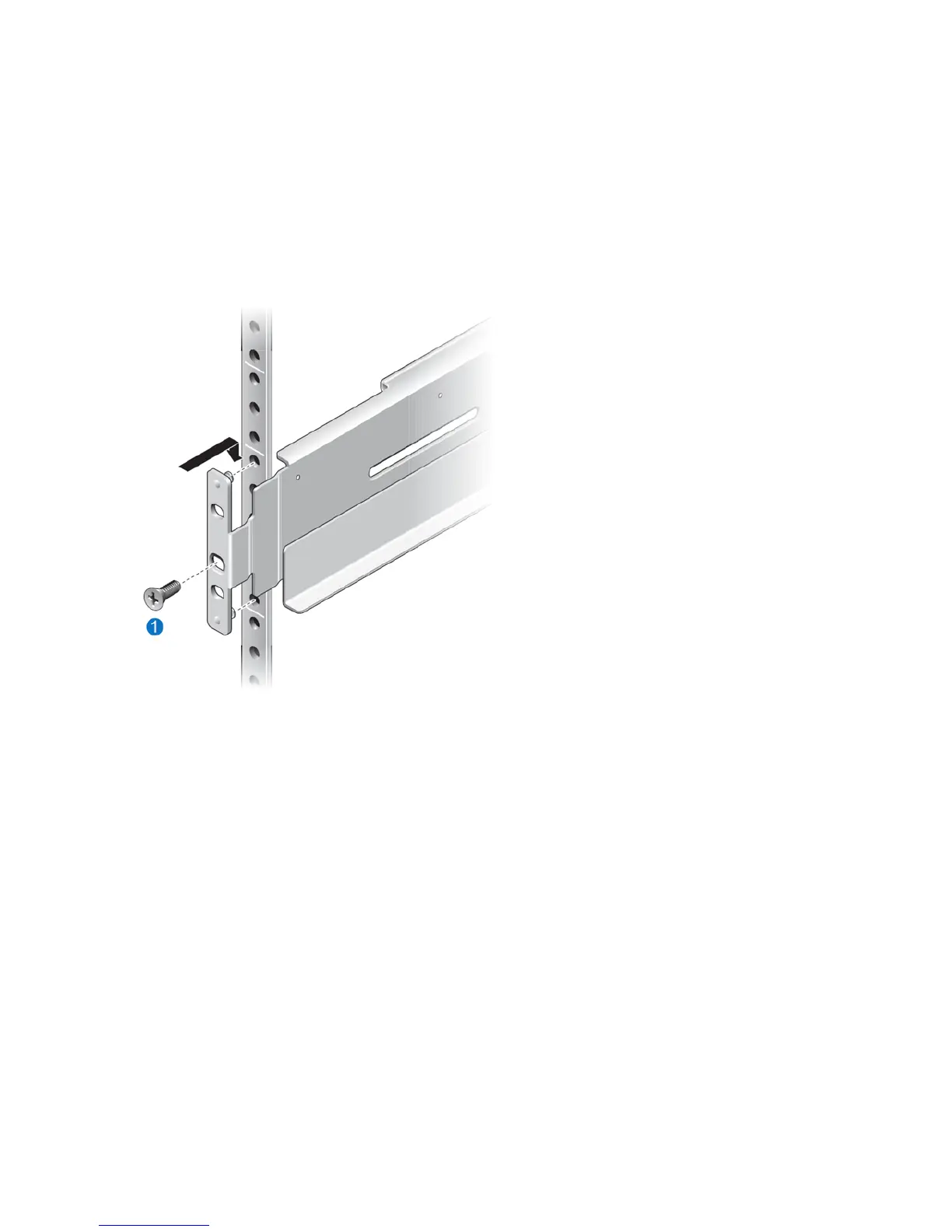

Figure 13: Attaching front rail assembly
1. Screw: Code D - P/N:01-00000265-00-01 or 01-00000266-00-01 or 01-00000268-00-01
9. Use one of the following, as appropriate, to attach the f rear of the rail assembly to the rear of the rack:
l 2 #10-32 x 3/4 truss Phillips screws
l Appropriate 5 or 6 mm panhead screws
In a rack with pre-tapped holes, push the rails outward to maximize the opening width while
tightening the screws.
