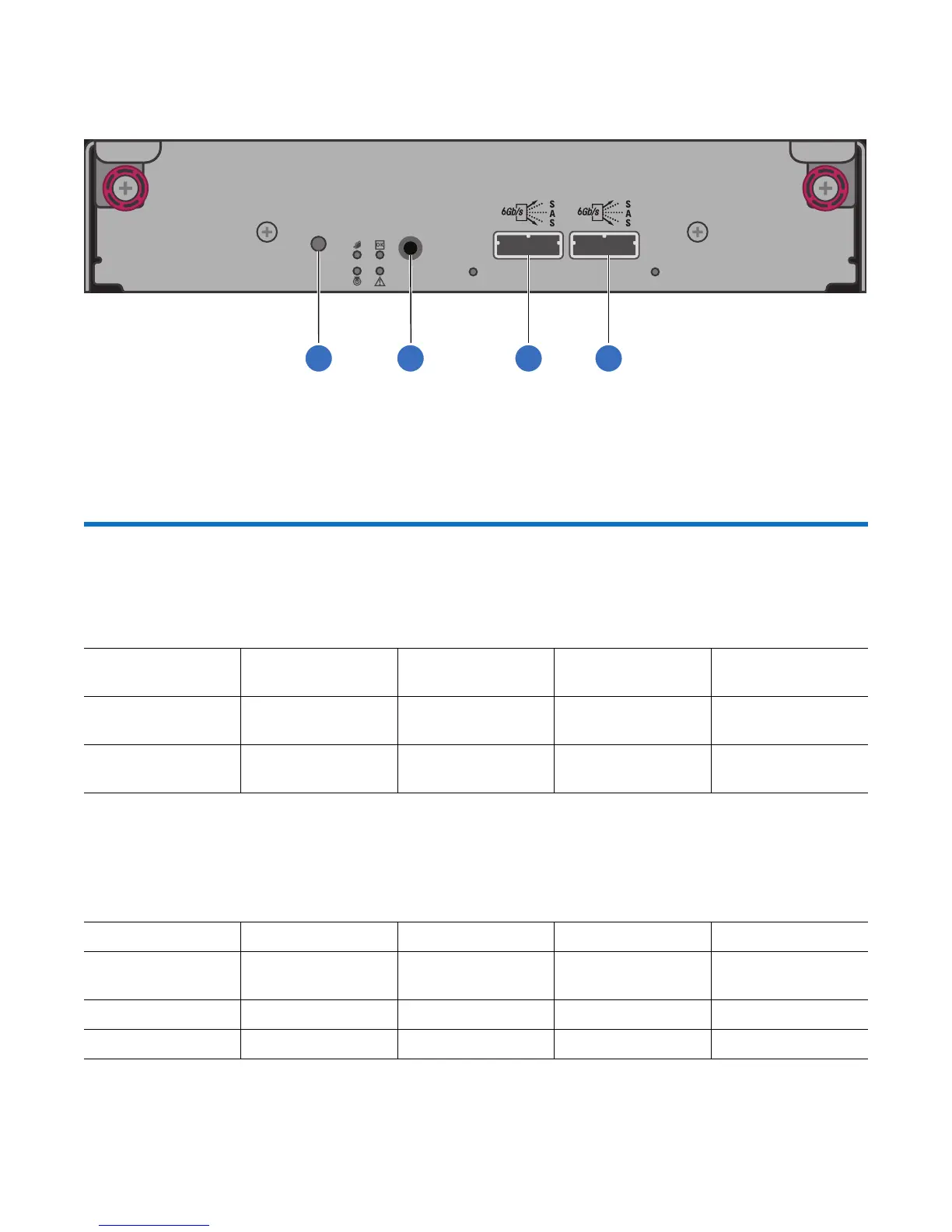

Figure 18 provides the 12, 24, and 48 drive expansion I/O module (ports identified).
Figure 18 Expansion I/O Module (ports identified)
QXS-456 RAID and Expansion Chassis
Table 1 2 identifies physical dimensions of the QXS-456/656 RAID and expansion chassis.
Packaged Dimensions and Weight
Table 1 3 identifies the packaged dimensions and weight of the QXS-456 RAID and expansion chassis.
LINKLINK
SERVICE
TUONI
1
2
3
4
1 Disabled button (used by engineering/test only) 2 Service port (used by service personnel only)
3 mini-SAS In port 4 mini-SAS Out port
Ta ble 12 QXS-456/656 RAID and Expansion Chassis Physical Dimensions
Chassis Height Width (chassis
only)
Depth
(excluding cables)
Maximum # Drives
QXS-456 RAID 4U (7 inches/
17.78cm)
17.6 inches
(44.7cm)
32.9 inches
(83.6cm)
56 (LFF: 3.5 inch)
QXS-456 Expansion 4U (7 inches/
17.78cm)
17.6 inches
(44.7cm)
32.9 inches
(83.6cm)
56 (LFF: 3.5 inch)
Ta ble 13 QXS-456 RAID and Expansion Chassis Packaged Dimensions and Weight
Chassis Height Width Depth Weight
QXS-456 RAID
(FC/iSCSI)
14 inches /35.56cm 24 inches/60.96cm 39 inches/99.06cm 150 lbs/68.04kg
QXS-456 RAID (SAS) 14 inches/35.56cm 24 inches/60.96cm 39 inches/99.06cm 150 lbs/68.04kg
QXS-456 Expansion 14 inches/35.56cm 24 inches/60.96cm 39 inches/99.06cm 139 lbs/63.05kg
