20Chapter 4 Installation of 2U enclosures
a. Facing the rear of the enclosure, insert and tighten a Panhead M5 x 8 screw into the tail of each outer rail
and through the 2U chassis to secure the rear of the chassis.

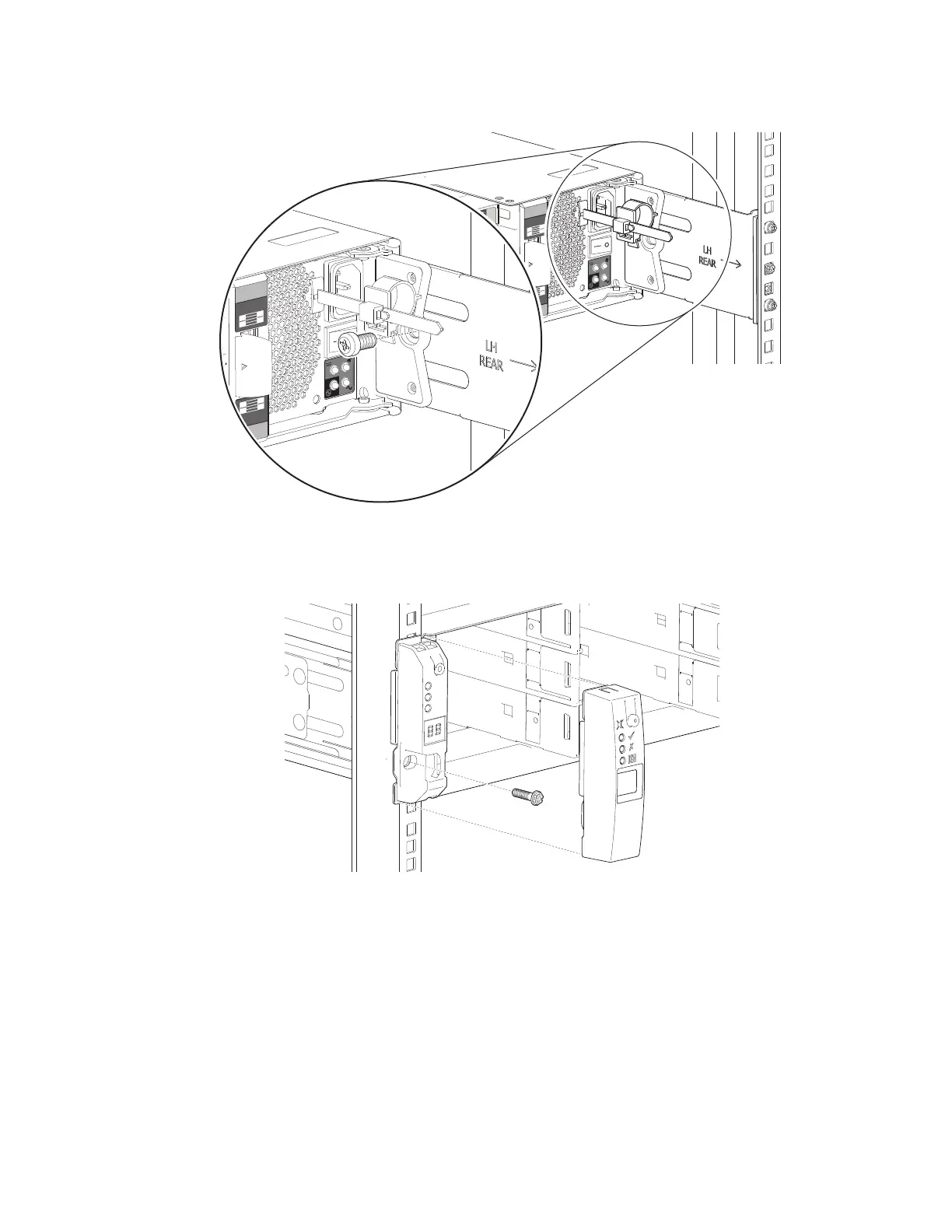

Figure 13 Installation of 2U rear screw to secure chassis to rail
b. Facing the front of the 2U chassis, insert a Panhead M5 x 8 screw into the operator's (ops)panel with an
8mm nut driver or a Philips screwdriver.
Figure 14 Installation of 2U operator's panel screw and cover
c. Hand tighten firmly against front rack post at the center of the rack ear flange.
d. Slide the ops panel cover over the left rack ear flange until flush with the rack post.
e. Repeat the process for the right rack ear flange and cover.
Populate the 2U enclosure
After successfully mounting the 2U chassis into the rack cabinet, populate the storage enclosure.
