74Chapter 9 Hardware installation and configuration issues
LED Status
Type AC fault PCM OK Fan fault DC fault
N/A
Color Amber Green Amber Amber
State
Off AC power not present on either PCM
On* Off On* AC power not present on this PCM
Off On Off AC power present, power switch is on; PCM functional
Off On Off On* PCM fan speed is out of tolerance
Off On* Off PCM fan fault
On Off On* PCM hardware fault: over temperature, over voltage, over current
Off Flashing Off PCM is in standby mode
Flashing Off Flashing Firmware update to PCM in progress

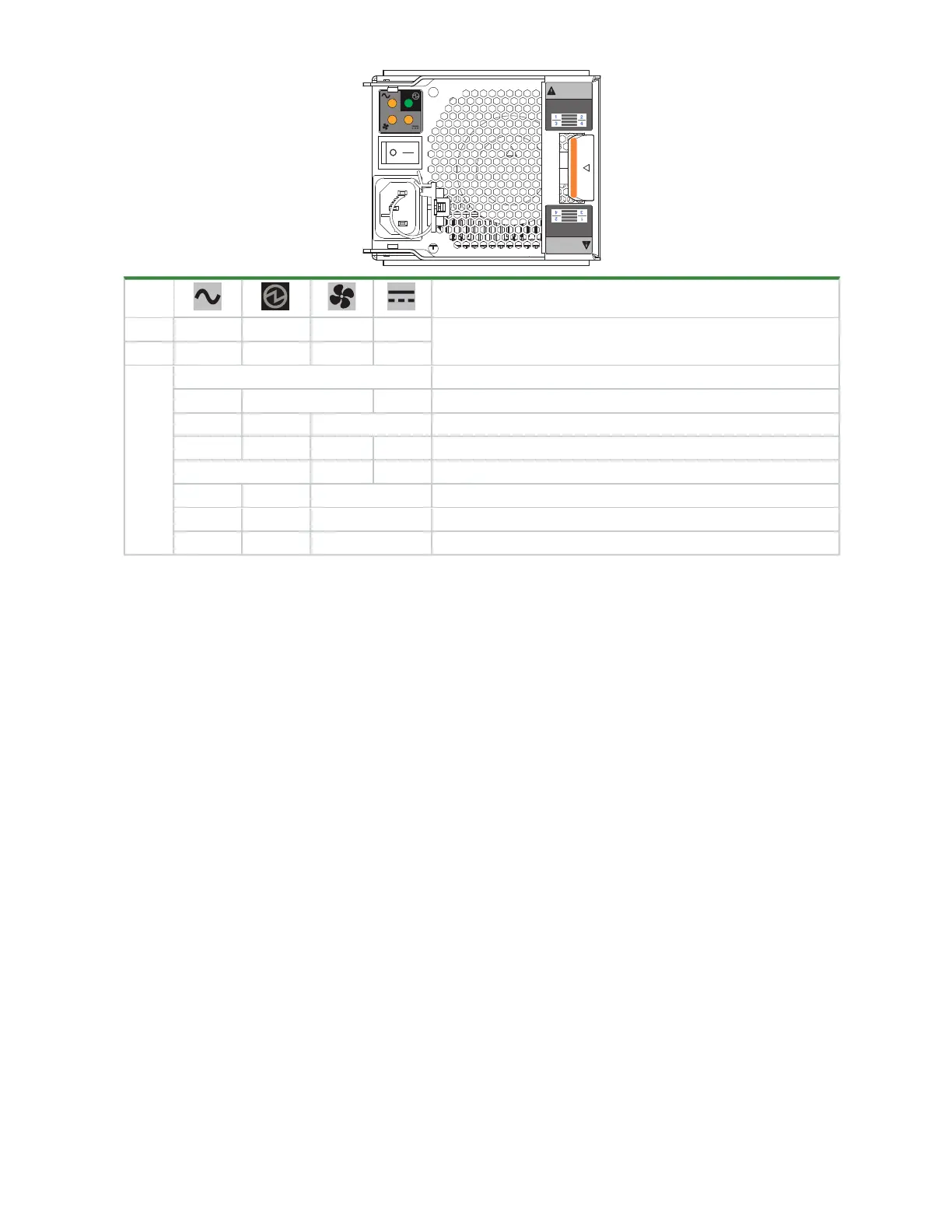

Figure 56 Power cooling module fault LEDs
5U84 enclosure fault LEDs
Visually inspect the front panel area for fault LEDs, then locate the component fault LEDs, based on general
location identified on the operator's panel or the drawer indicators. If a hardware issue prevents access to the
DSMU or CLI, this is the only option available. An asterisk (*) indicates a fault condition.
Operator's panel fault LEDs
The operator's (ops) panel uses several green and amber LEDs to identify various states. Use the amber fault
conditions identified on the operator's (ops) panel to direct you to the fault LEDs on suspect modules. The
asterisk (*) indicates a fault condition.
