Quantum QXS Series User Manual

Chapter 1: Components
QXS-3 Series Storage
QX and QXS Setup Guide 6

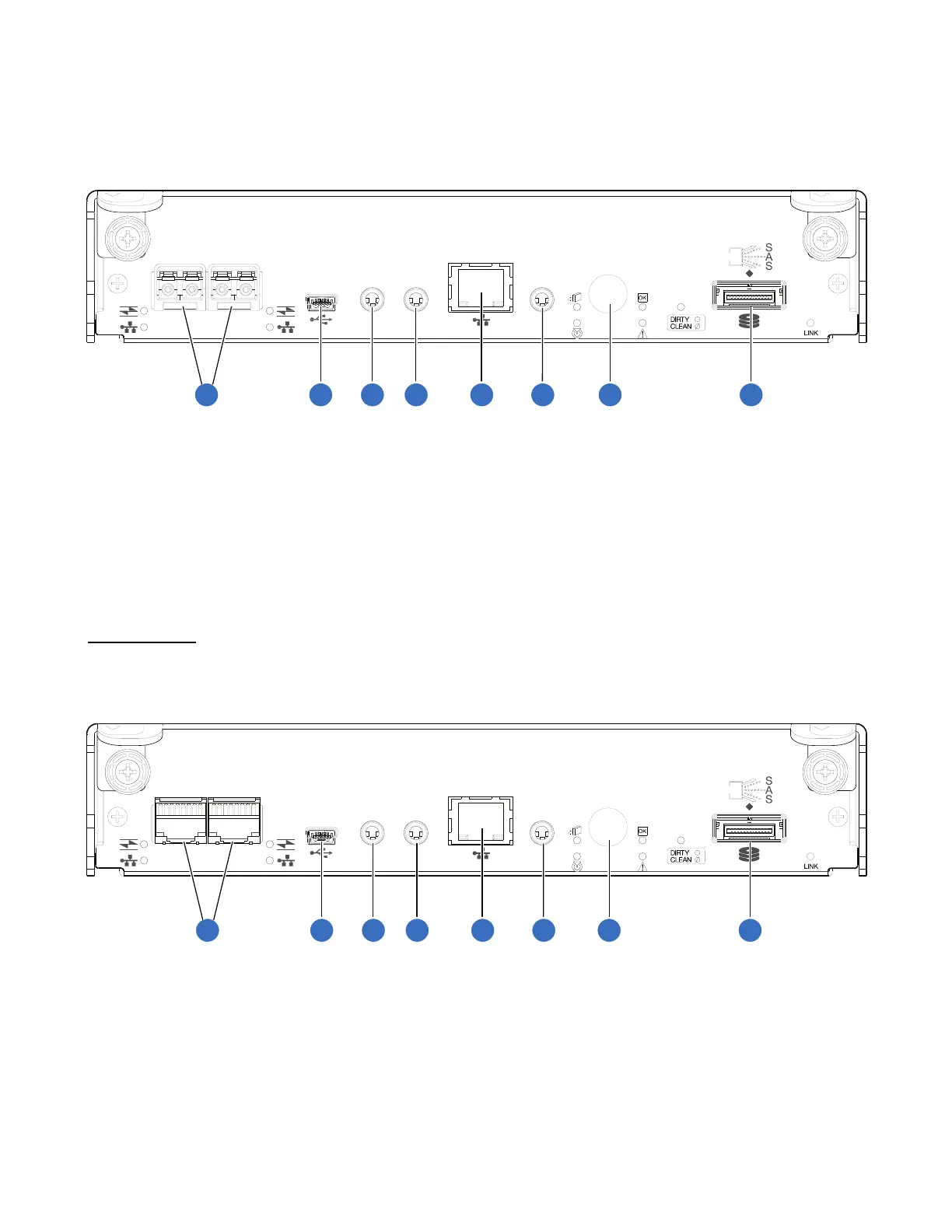

Figure8:CNC Ports Configured with SFPs (FC or iSCSI)
CACHE
CLI
CLI
LINK
ACT
6Gb/s
SERVICE−1SERVICE−2
PORT 0 PORT 1
2 3 4 5
6
7 81
1. CNCportsusedforhostconnectionorreplication
2. CLIPort(USB-TypeB)
3. ServicePort2(usedbyservicepersonnelonly)
4. Reservedforfutureuse
5. NetworkPort
6. ServicePort1(usedbyservicepersonnelonly)
7. Disabledbutton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. mini-SASexpansionport
Host CNC Ports Configured with SFPs (1 Gb RJ-45)
Figure 9 below shows a Controller I/O Module with CNC ports configured with SFPs supporting 1 Gb RJ-
45.
Figure9:Controller I/O Module with CNC Ports
CACHE
CLI
CLI
LINK
ACT
6Gb/s
SERVICE−1SERVICE−2
PORT 0 PORT 1
2 3 4 5
6
7 81
1. CNCportsusedforhostconnectionorreplication
2. CLIPort(USB-TypeB)
3. ServicePort2(usedbyservicepersonnelonly)
4. Reservedforfutureuse
5. NetworkPort
6. ServicePort1(usedbyservicepersonnelonly)
7. Disabledbutton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. Mini-SASexpansionport
