Quantum QXS Series

Chapter 1: Components
4U56 Drive System
QX and QXS Setup Guide 26
Host CNC Ports Configured with SFPs (1 Gb RJ-45)

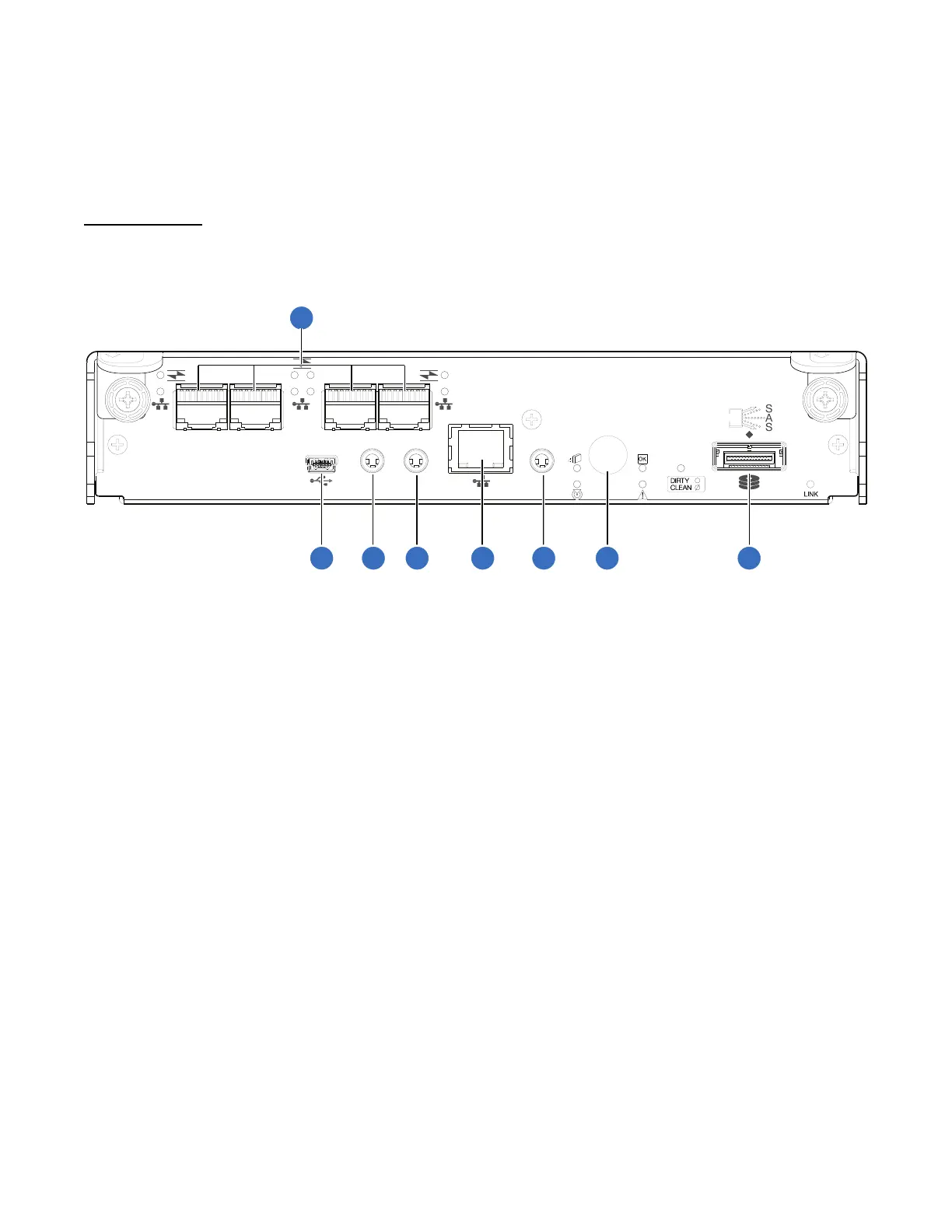

Figure 33 below shows a controller I/O Module with CNC ports configured with SFPs supporting 1 Gb RJ-
45.
Figure33:CNC Ports Configured with SFPs (RJ-45)
CACHE
CLI
CLI
LINK
ACT
6Gb/s
SERVICE−1SERVICE−2
PORT 0 PORT 1 PORT 2 PORT 3
2 3 4 5
6
7 8
1
1. CNCPorts(usedforhostconnectionorreplication)
2. CLIPort(USB-TypeB)
3. ServicePort2(usedbyservicepersonnelonly)
4. ReservedforFutureUse
5. NetworkPort
6. ServicePort1(usedbyservicepersonnelonly)
7. DisabledButton(usedbyengineeringonly)
(Stickershowncoveringtheopening)
8. Mini-SASExpansionPort
