Chapter 2: Installing the Chassis
Install Drives Into the QXS-456 Drive Chassis
QX and QXS Setup Guide 66
3. Move the drawer stop-latch so that the target drawer can travel along the slide.
l Move the stop-latch to the right to open Drawer 0 (left drawer).
l Move the stop-latch to the left to open Drawer 1 (right drawer).
4. Revolve the drawer handle downwards by 90° so that the drawer can be pulled outward for viewing
drive slots.

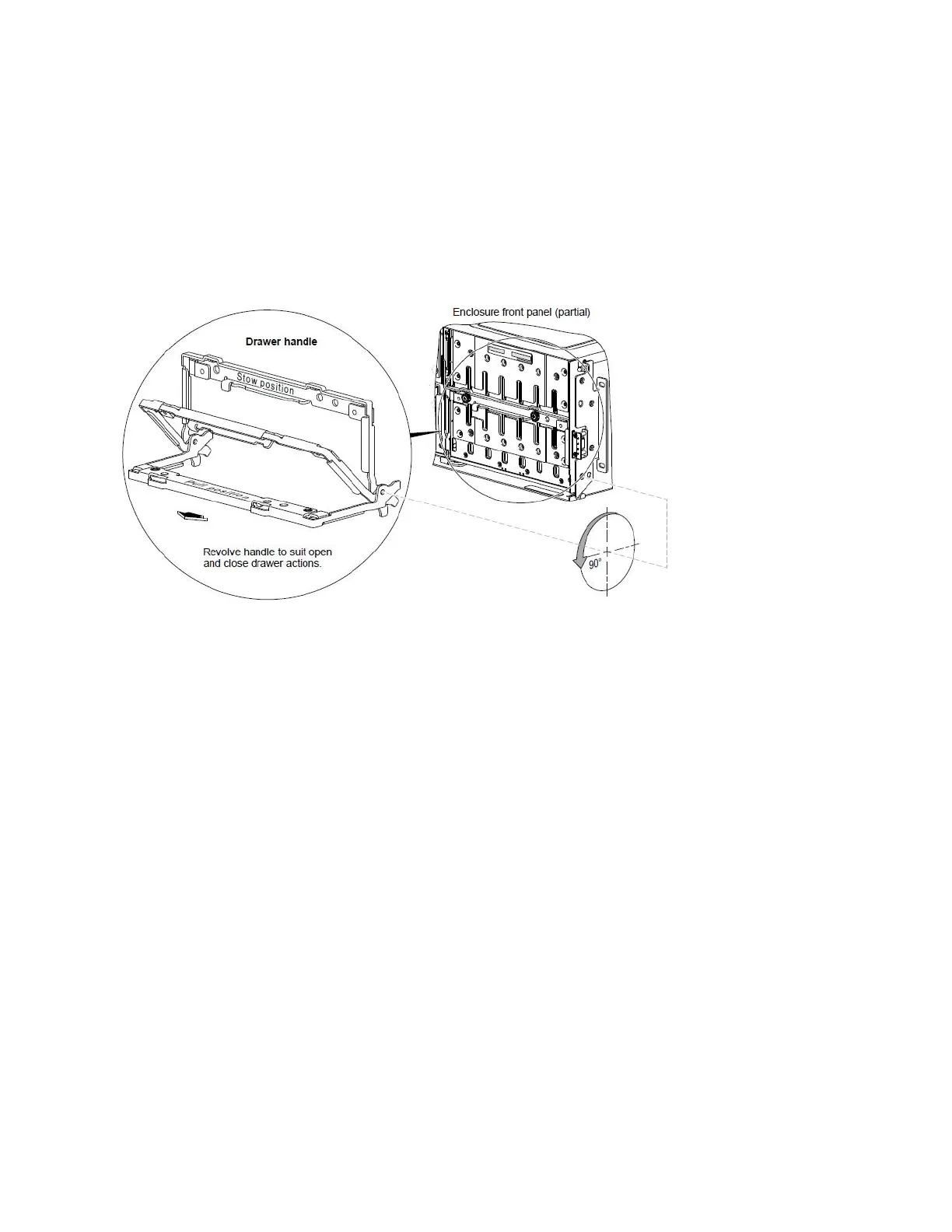

Figure72:QXS-456 opening drawer
Thedrawerhandleisinthepullandstowpositions.
5. Face the front of the drawer, and using the handle, pull the drawer outward along the drawer slide until
it meets the drawer stop.
Make sure that there are not any loose cable wires protruding beyond the limits of the chain-flex cable.
Install a Drive Into a Drawer
1. With the drive module standing on end, and the LEDs oriented to the left, insert the drive module into
the vertically-aligned drive slot to seat it into the connector on the drawer PCBA.
