Quantum QXS Series User Manual

Chapter 2: Installing the Chassis
QXS, QXS-3, and QXS-4 Series Drive Chassis Straight Cabling Illustrations
QX and QXS Setup Guide 81

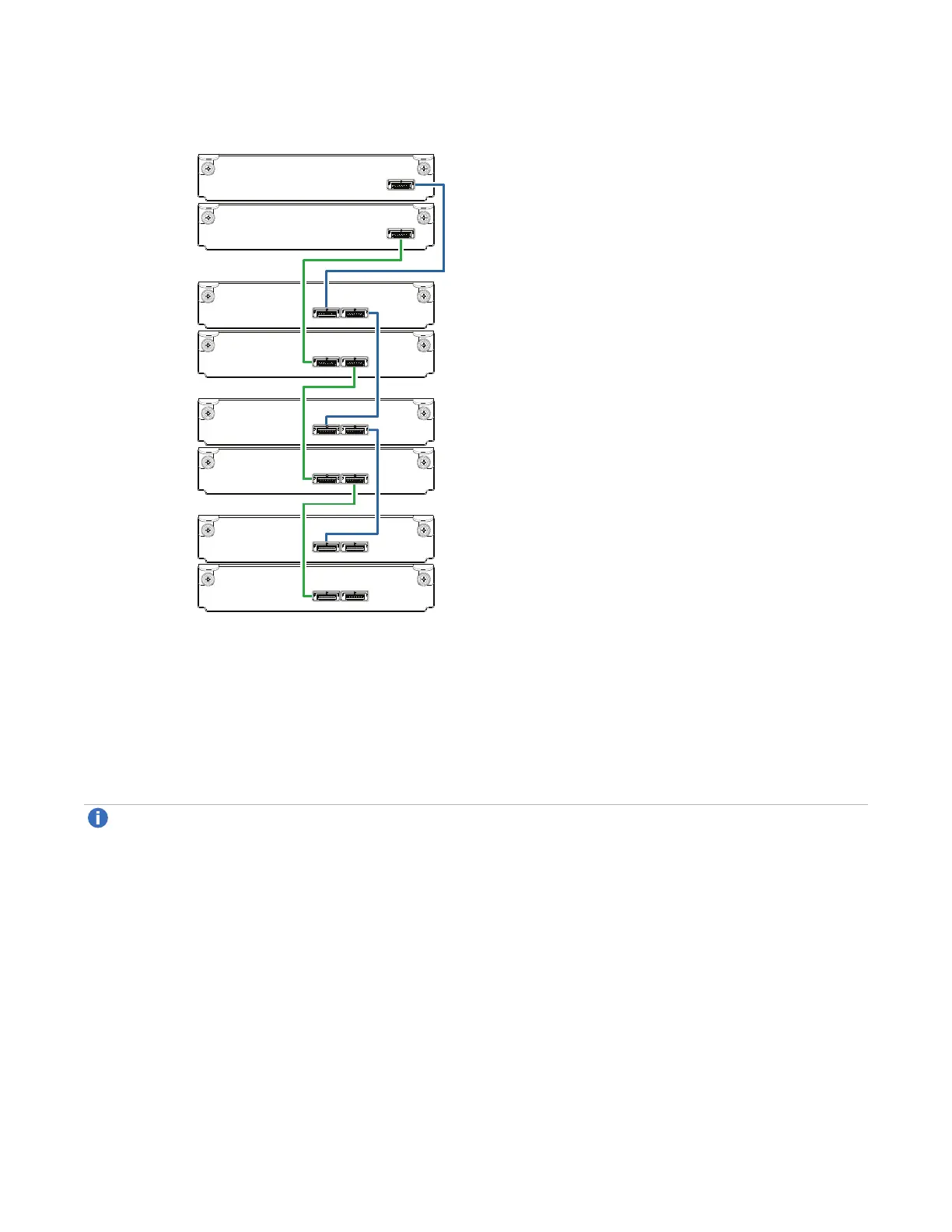

Figure79:Straight cabling between a dual-controller RAID chassis and three drive chassis
0A
0B
1A
1B
2A
2B
3A
3B
RAID
Chassis
0
Expansion
Chassis
1
Expansion
Chassis
2
Expansion
Chassis
3
Controller A
Controller B
In
Out
In Out
In Out
In Out
In Out
In Out
Example: Dual-controller RAID Chassis with 7 Expansion Chassis
The following figure shows a dual-controller RAID chassis cabled to 7 expansion chassis featuring dual-
expansion I/O modules. Controller I/O module 0A is connected to expansion I/O module 1A, with a chain of
connections cascading down (blue). Controller I/O module 0B is connected to the lower expansion I/O
module (7B), of the last drive expansion chassis, with connections moving in the opposite direction (green).
Note:Consult with Quantum technical support when mixing and matching the QXS-3 and QXS-4
Series expansion chassis.
