Chapter 2: Installing the Chassis
QXS, QXS-3, and QXS-4 Series Drive Chassis Straight Cabling Illustrations
QX and QXS Setup Guide 82

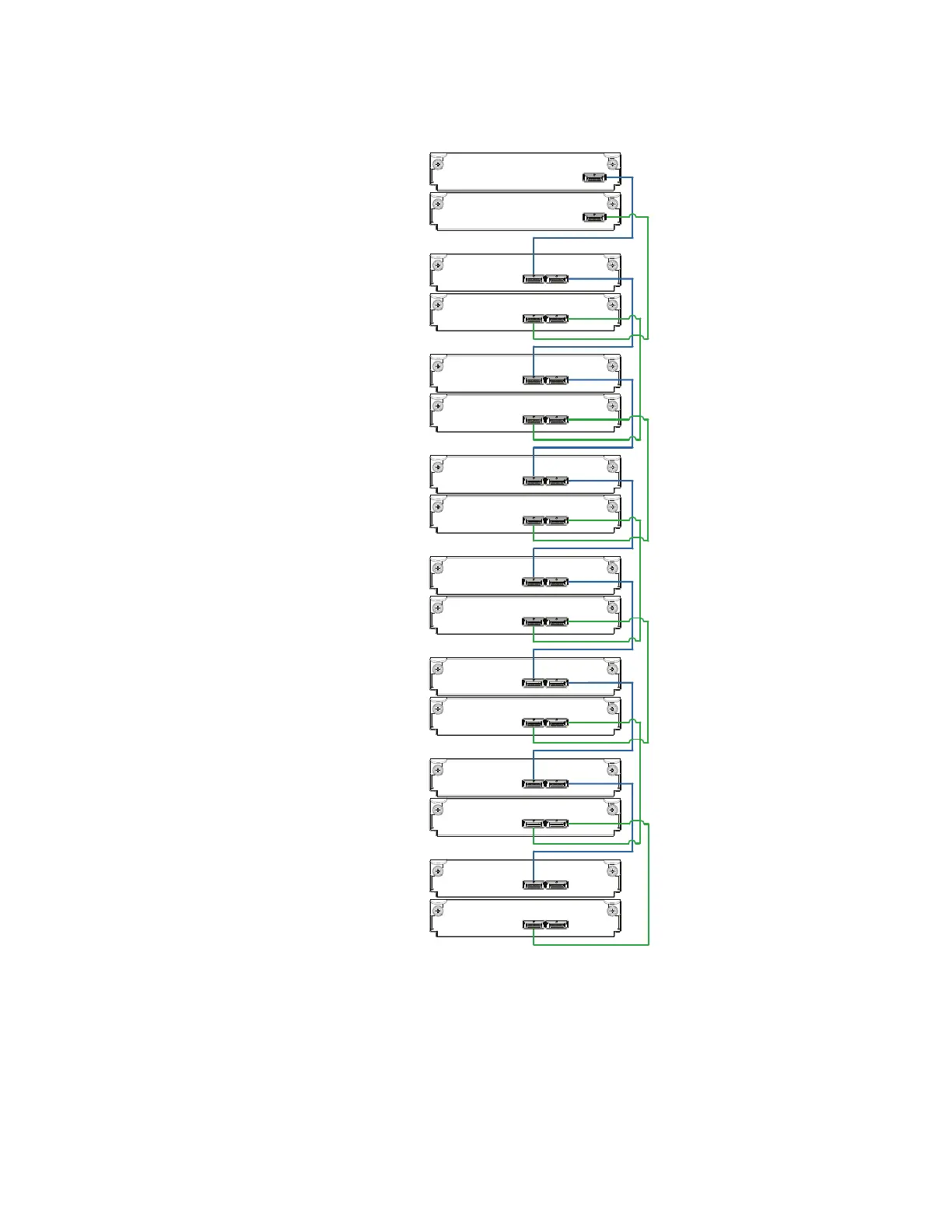

Figure80:Straight-through cabling between a dual-controller RAID chassis and 7 expansion chassis
