GV58LAU User Manual
TRACGV58LAUUM001 – 12 –

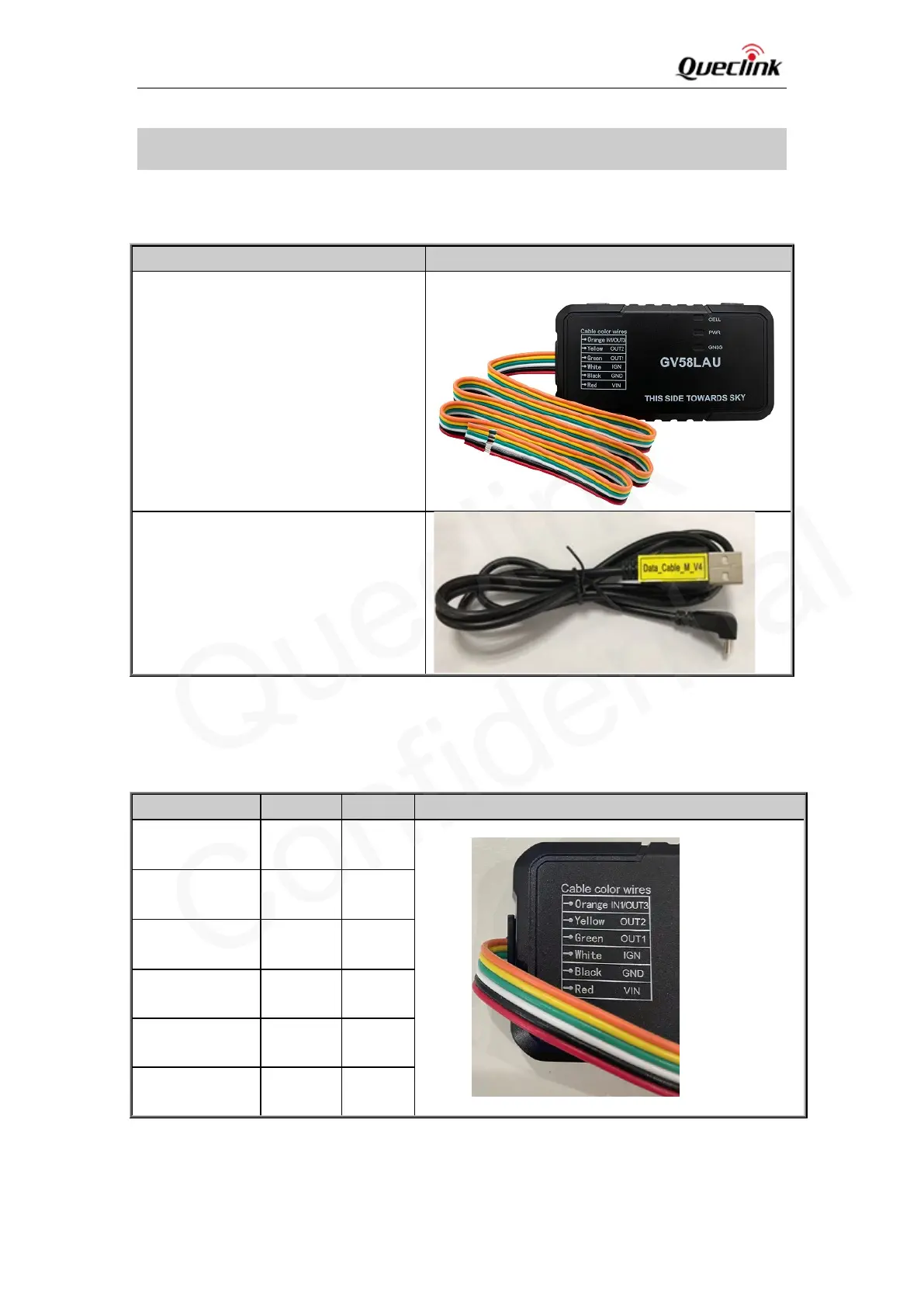

3. Get Started
3.1. Parts List
Table 8: Parts List
Name
GV58LAU Locator
86.7mm*46.4mm*18.1mm
Data_Cable_M_V4 (Optional)
3.2. GV58LAU External Cable Interface
Table 9: GV58LAU User Cable Color Definition
Definition
Color
PIN No.
Cable
IN1/OUT3 Orange 1
OUT2 Yellow 2
OUT1 Green 3
IGN White 4
GND Black 5
VIN Red 6
