GV75MG User Manual
3. Interface Definition
The GV75MG has an 8-pin interface connector. It contains the connections for power and I/O.
The sequence and description of the connector are shown in the following figure:

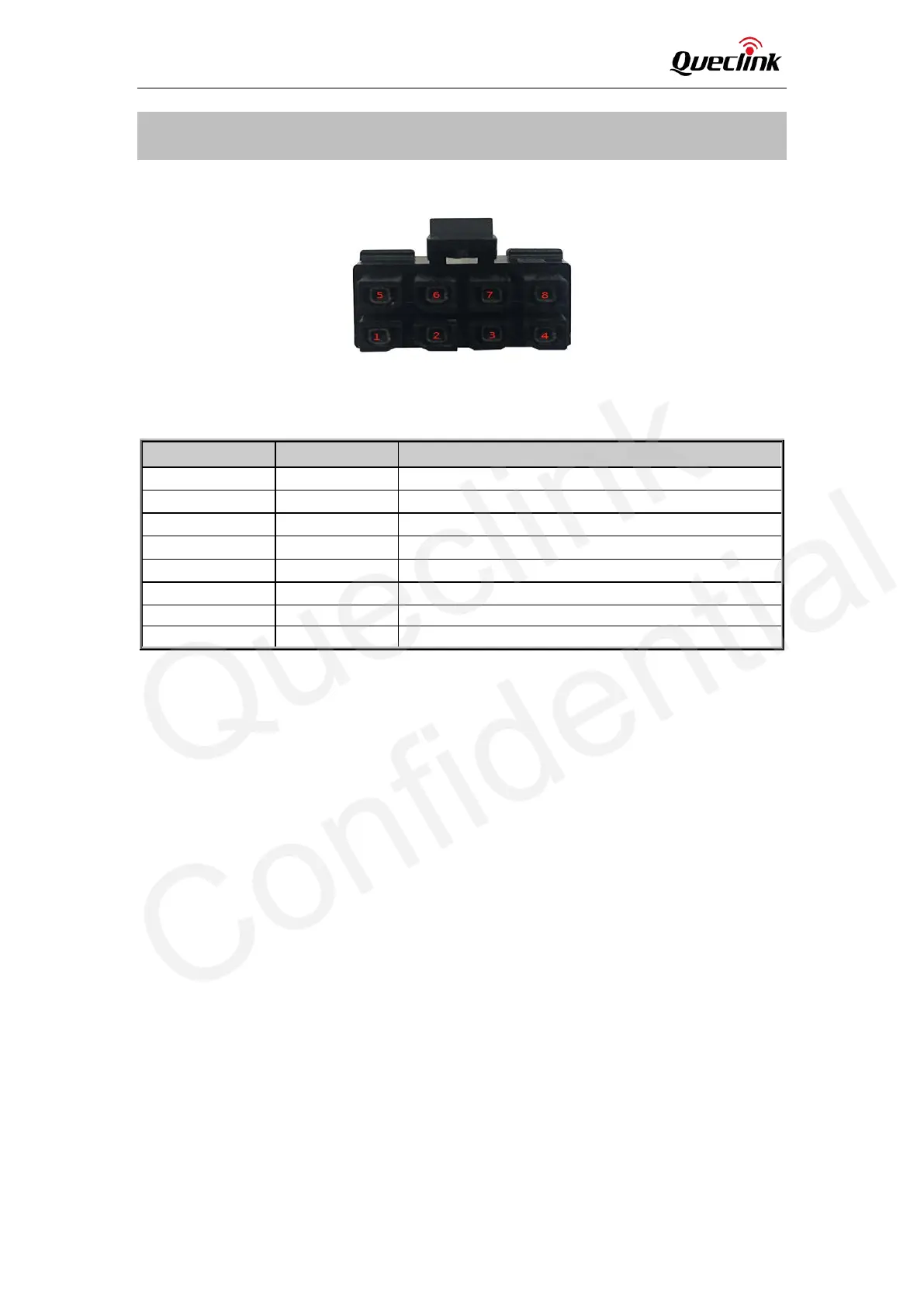

Figure 3. 8-pin Connector of the GV75MG
Table 6. Description of 8-pin Connections
Index Description Comment
RXD
UART RXD; RS232
TXD
UART TXD; RS232
OUT1
Digital output
OUT2
Open drain, 150mA max
IGN
Ignition input, positive trigger
IN1
Digital Input
GND
GND
VIN
External DC power input, 8~32V
QSZTRACGV75MGUM0101 5
Queclink
Confidential
