FGH100M_Hardware_Design 25 / 41
U.FL-LP series mated plugs listed in the following figure can be used to match the U.FL-R-SMT
connector.

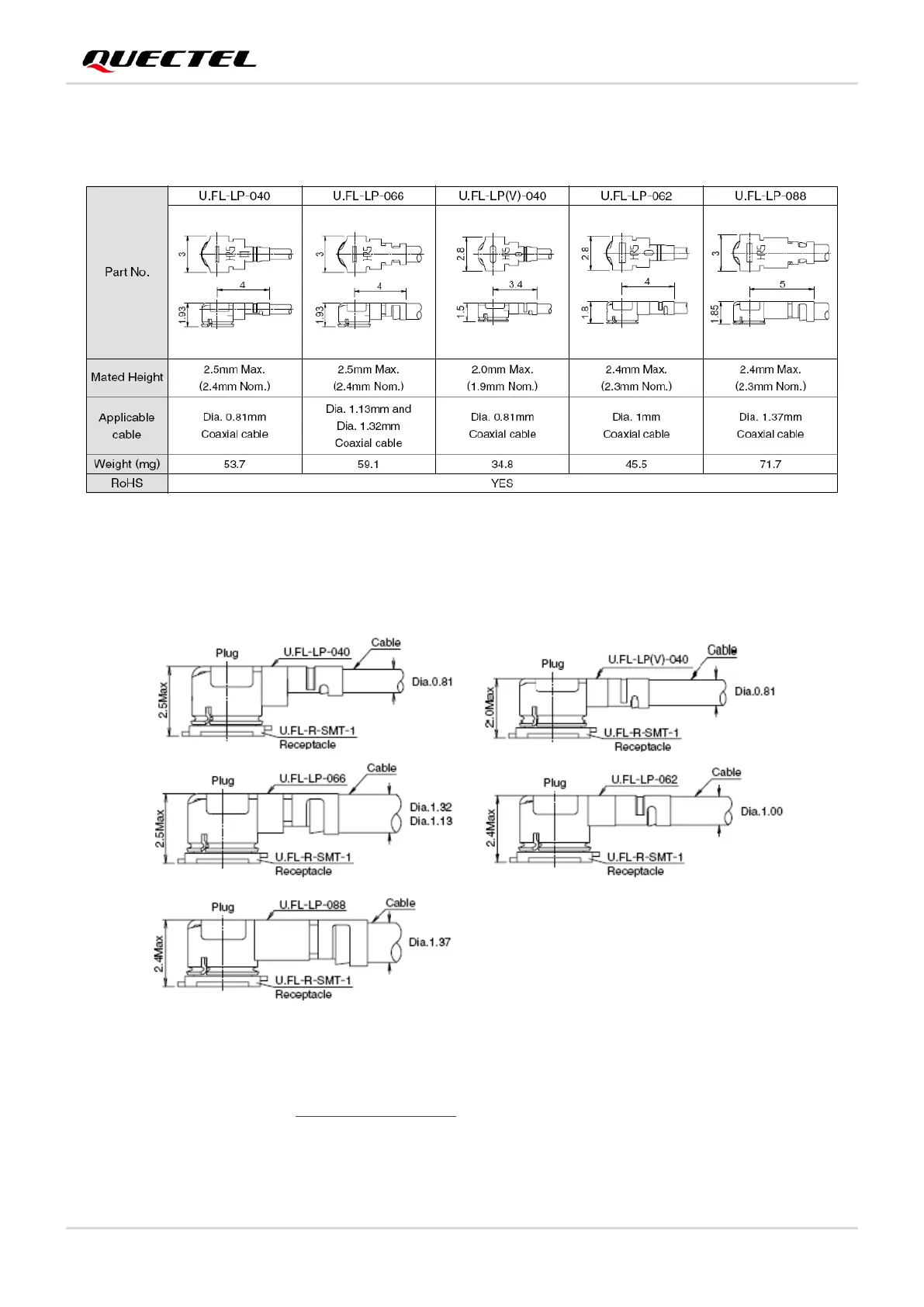

Figure 11: Specifications of Mated Plugs
The following figure describes the space factor of mated connectors.
Figure 12: Space Factor of Mated Connectors (Unit: mm)
For more details, please visit http://www.hirose.com.
