Quectel FGH100M - Mechanical Information; Mechanical Dimensions

Wi-Fi Module Series
FGH100M_Hardware_Design 29 / 41
6 Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ±0.2 mm unless otherwise specified.
6.1. Mechanical Dimensions

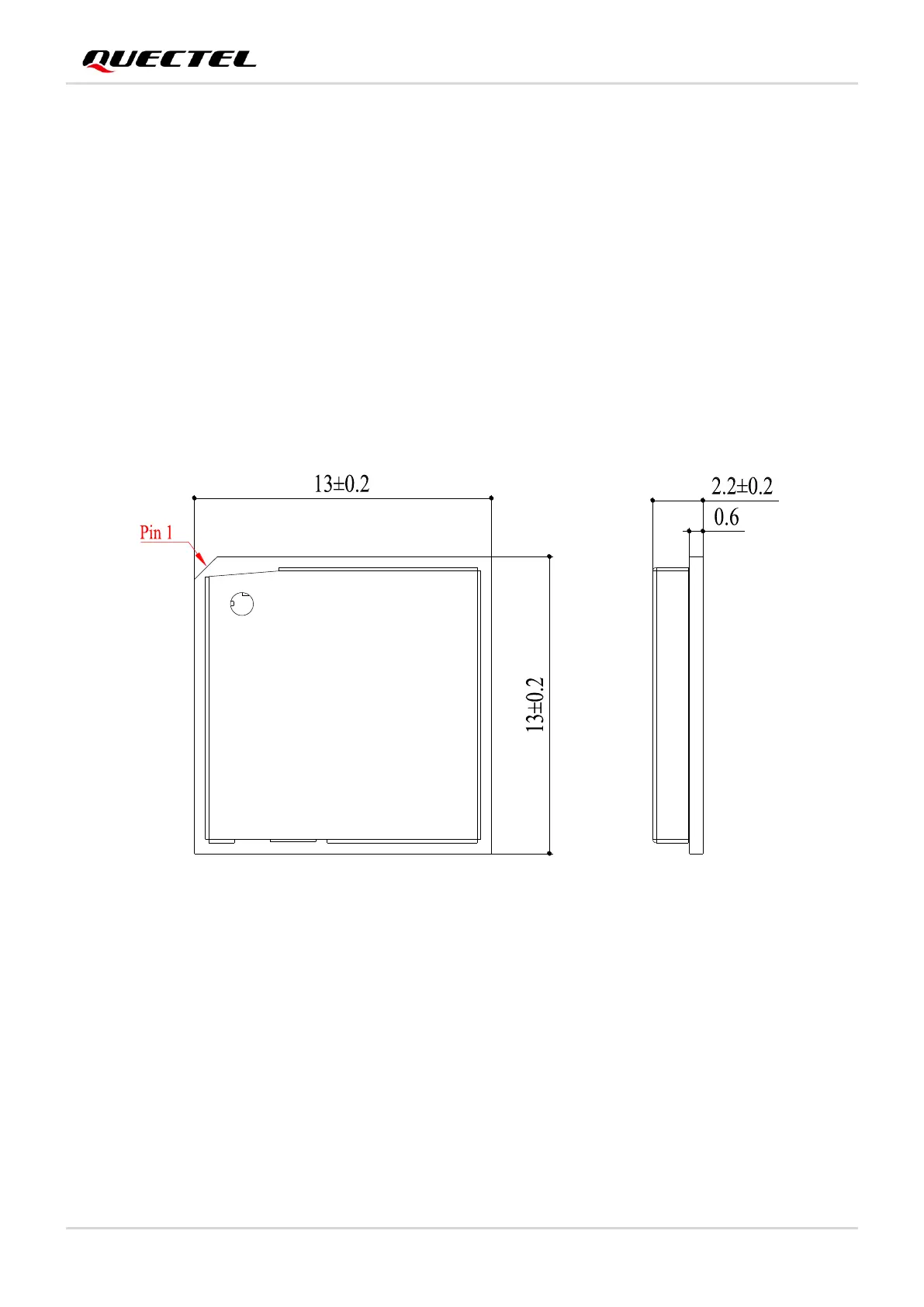

Figure 14: Top and Side Dimensions
